Rear Assist Arm
REAR ASSIST ARMINSTALLATION

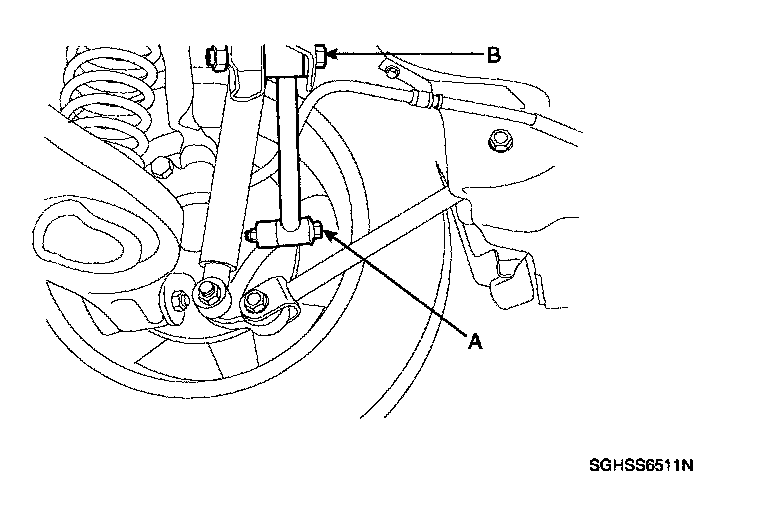

1. Install the rear assist arm and cab bolt (B) to the cross member and tighten the nut.
Tightening torque Nm (kgf.m, lb-ft): 100 - 120 (10.0 - 120, 72 - 87)
2. Connect the rear assist arm with the carrier and tighten the bolt (A) and nut.
Tightening torque Nm (kgf.m, lb-ft): 140 - 160 (14.0 - 16.0, 101 - 116)
3. Install the rear wheel & tire.
Tightening torque Nm (kgf.m, lb-ft): 90 - 110 (9.0 - 11.0, 65 - 80)
