Front Upper Arm

FRONT UPPER ARM

INSTALLATION

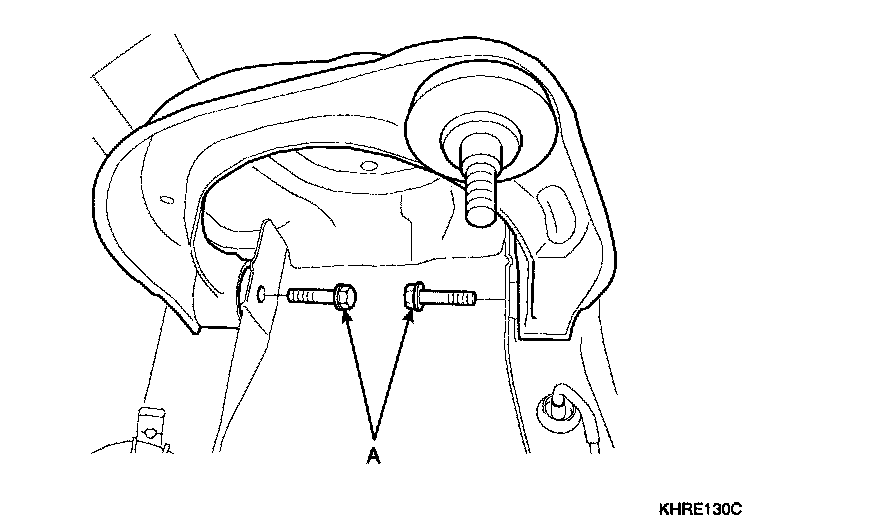

1. Install the upper arm to body and tighten the bolts (A).

Tightening torque Nm (kgf.m, lb-ft): 55 - 65 (5.5 - 6.5, 40 - 47)





2. Install the front strut assembly. (Refer to Front strut assembly)

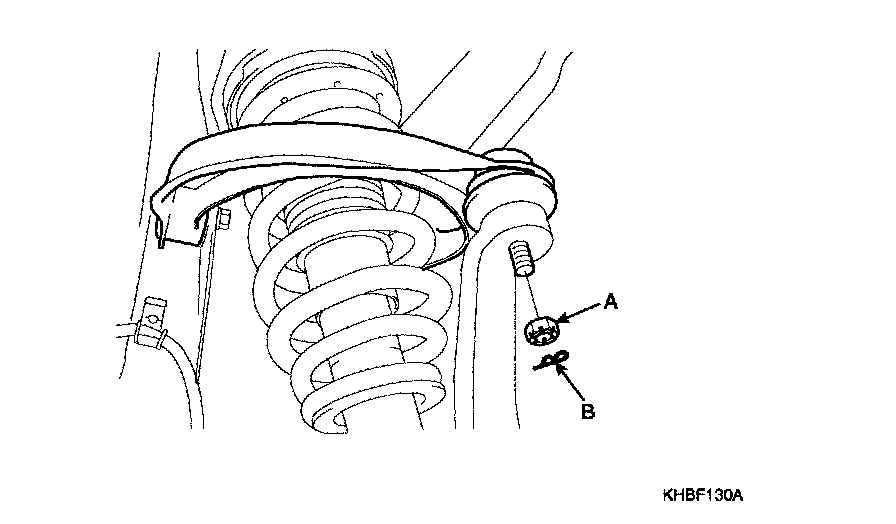

3. Connect the upper arm ball joint with the knuckle and then install the castle nut (A) and snap pin (B).

Tightening torque Nm (kgf.m, lb-ft): 34 - 45 (3.4 - 4.5, 25 - 33)





4. Install the front wheel & tire.

Tightening torque Nm (kgf.m, lb-ft): 90 - 110 (9.0 - 11.0, 65 - 80)
