Front Lower Arm
FRONT LOWER ARMINSTALLATION

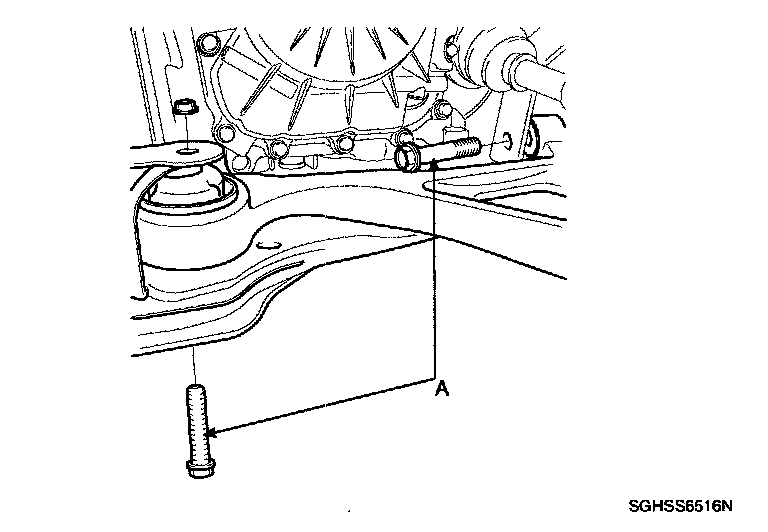

1. Install the front lower arm to the sub-frame and then tighten the bolts (A).
Tightening torque Nm (kgf.m, lb-ft): 140 - 160 (14.0 - 16.0, 101 -116)

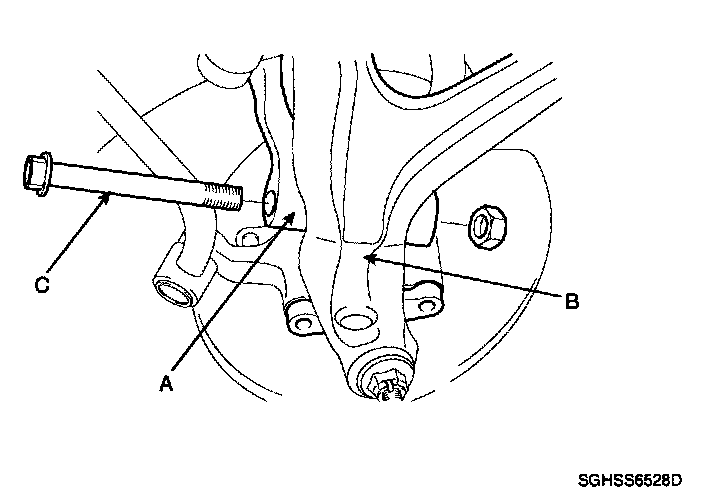

2. Connect the mounting fork (A) with the lower arm (B) and tighten the through bolt and nut (C).
Tightening torque Nm (kgf.m, lb-ft): 140 - 160 (14.0 - 16.0, 101 - 116)

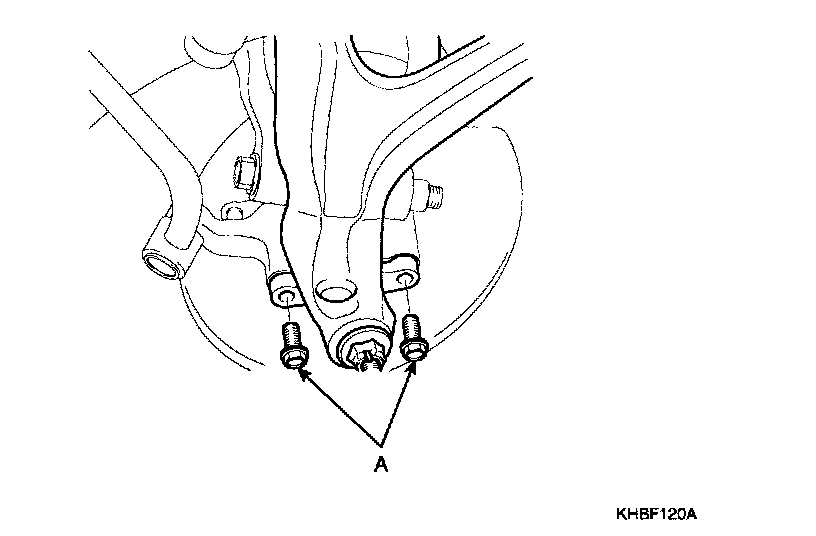

3. Connect the lower arm with the knuckle by tightening the bolts (A).
Tightening torque Nm (kgf.m, lb-ft): 100 - 120 (10.0 - 12.0, 72 - 87)
4. Install the front wheel & tire.
Tightening torque Nm (kgf.m, lb-ft): 90 - 110 (9.0 - 11.0, 65 - 80)
