Starter Test Procedure

STARTER TEST PROCEDURE

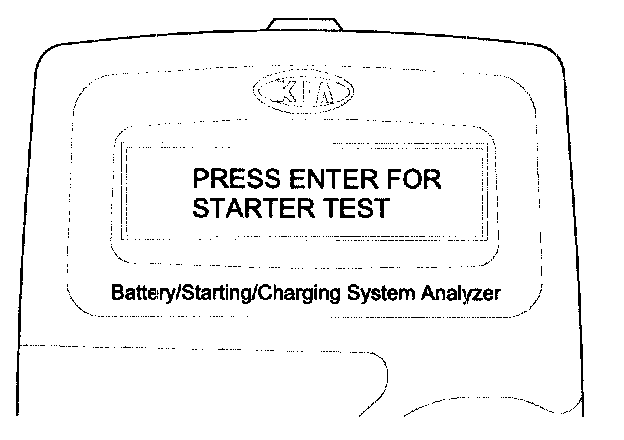

1. After the battery test, press ENTER immediately for the starter test.

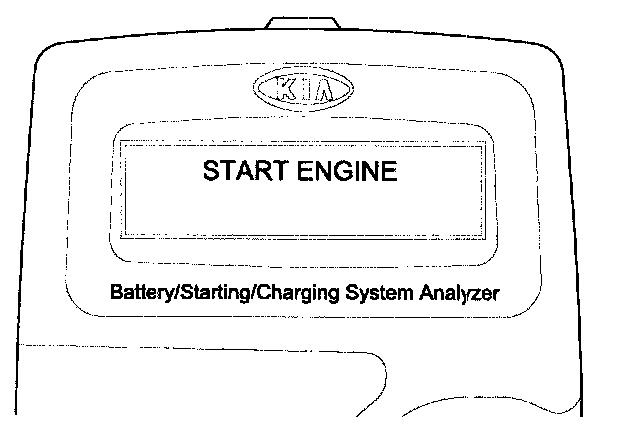

2. After pressing ENTER key, start the engine.

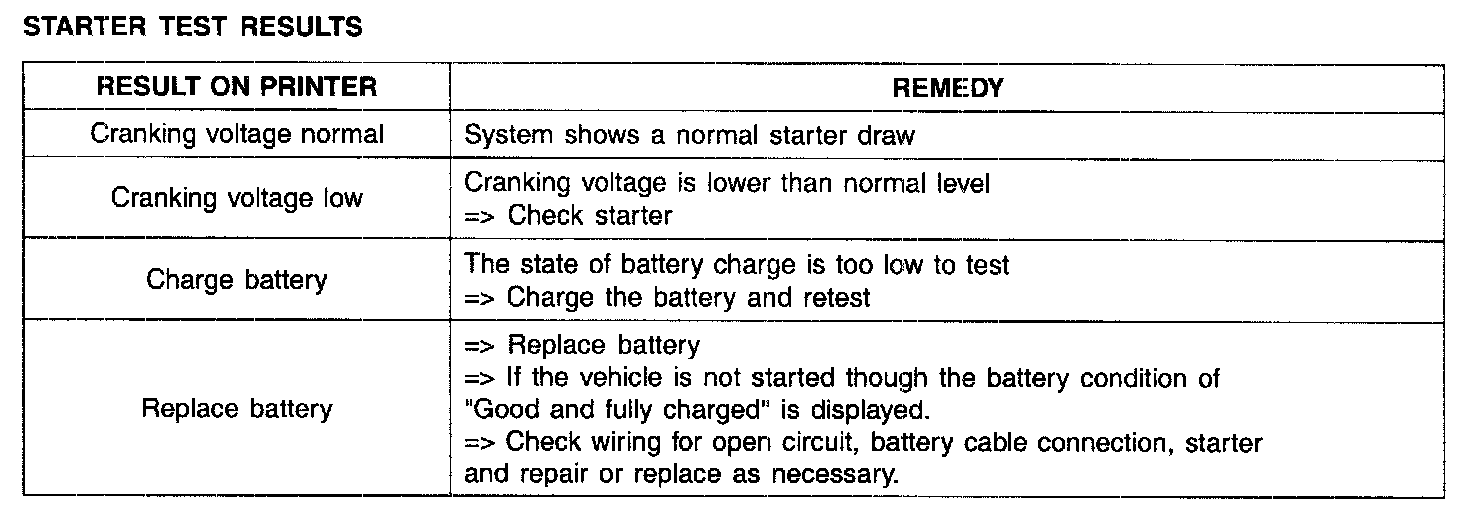

Starter Test Results:

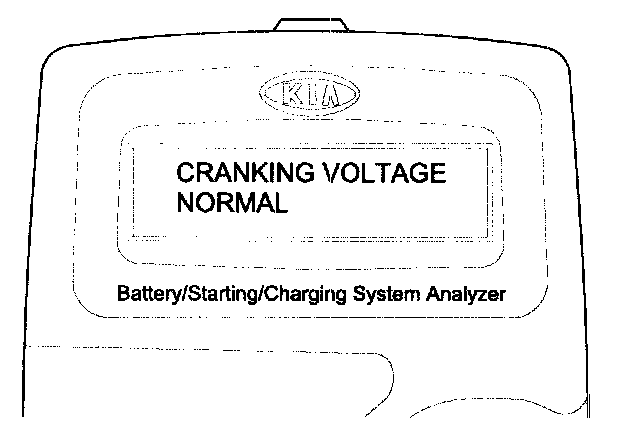

3. Cranking voltage and starter test results will be displayed on the screen.
Take a relevant action according to the test results by referring to the starter test results as given above.
4. To continue charging system test, press ENTER.
