Removal and Replacement

STARTER

REMOVAL
1. Disconnect the starter cable from the B terminal on the solenoid, and the connector from the S terminal.

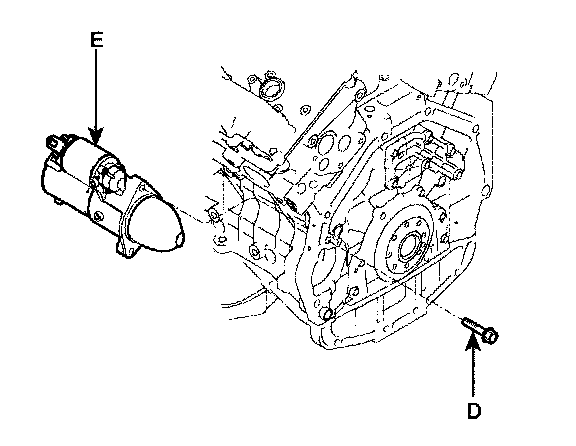

2. Remove the 2 bolts (D) holding the starter, then remove the starter (E).

TORQUE : 49.0 - 63.7 N.m (5.0 - 6.5 kgf.m, 36.2 - 47.0 lb.ft) - starter mounting (D)

3. Installation is the reverse of removal.
4. Connect the battery negative cable to the battery.
