Home >> Kia >> 2007 >> Amanti V6-3.8L >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Suspension

Suspension

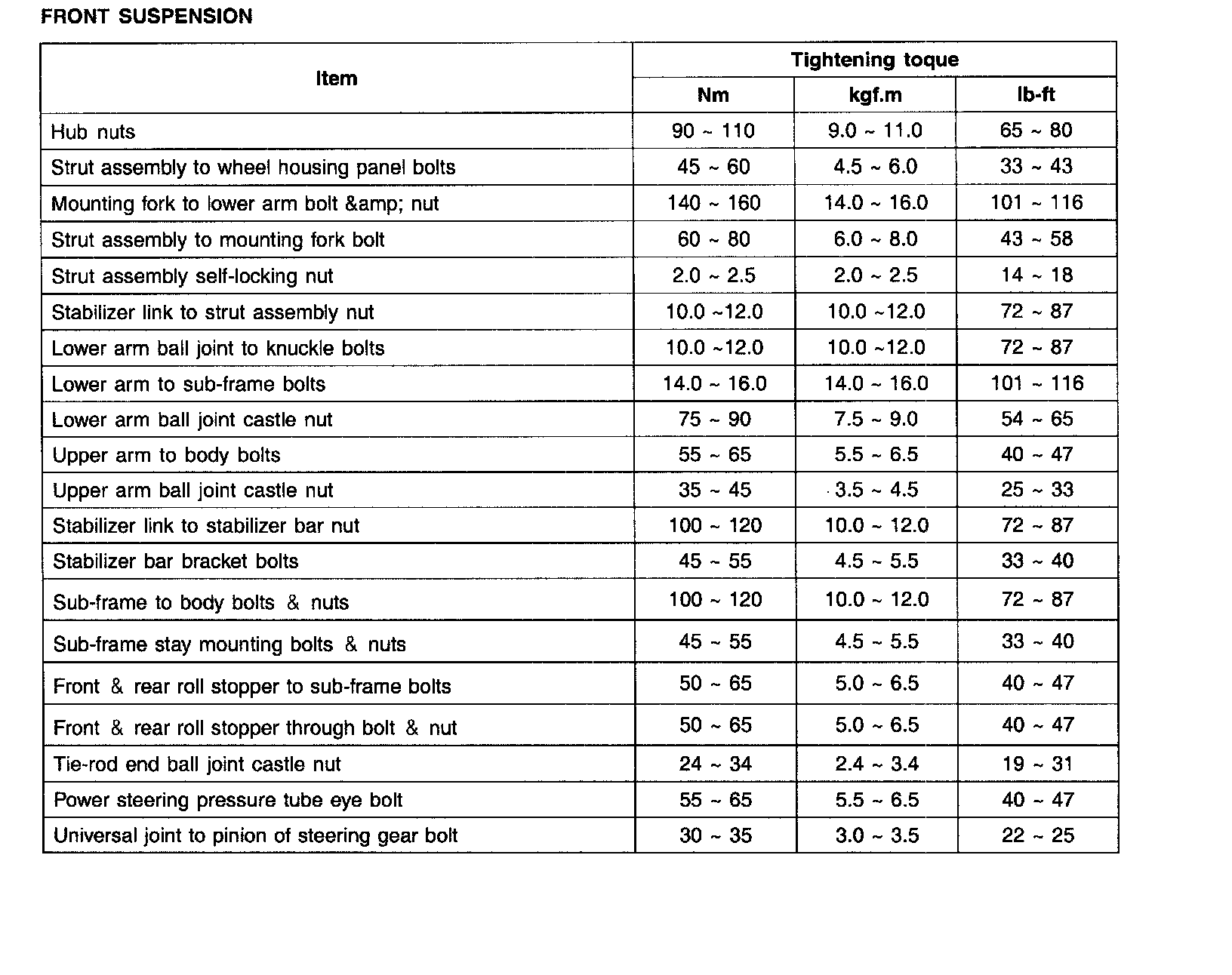

FRONT SUSPENSION

Tightening Torque-Front Suspension:





REAR SUSPENSION

Tightening Torque-Rear Suspension:
