Fuel Tank Pressure Sensor
>>
Specifications
>>
Fuel System
Fuel System

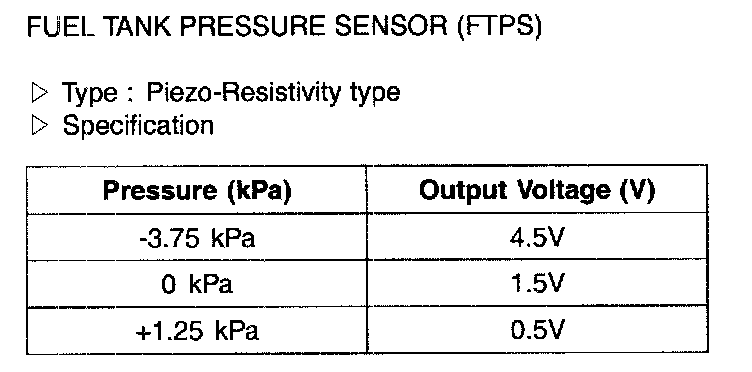

Fuel Tank Pressure Sensor (FTPS) - Specification:
