Brake Light Switch: Description and Operation

BRAKE LAMP SWITCH

1. The brake lamp switch determines to judge if ESC and ABS should be controlled by transmitting whether braking should be tried to HECU.
2. The brake lamp switch uses as the basic signal of ABS & ESC braking control.

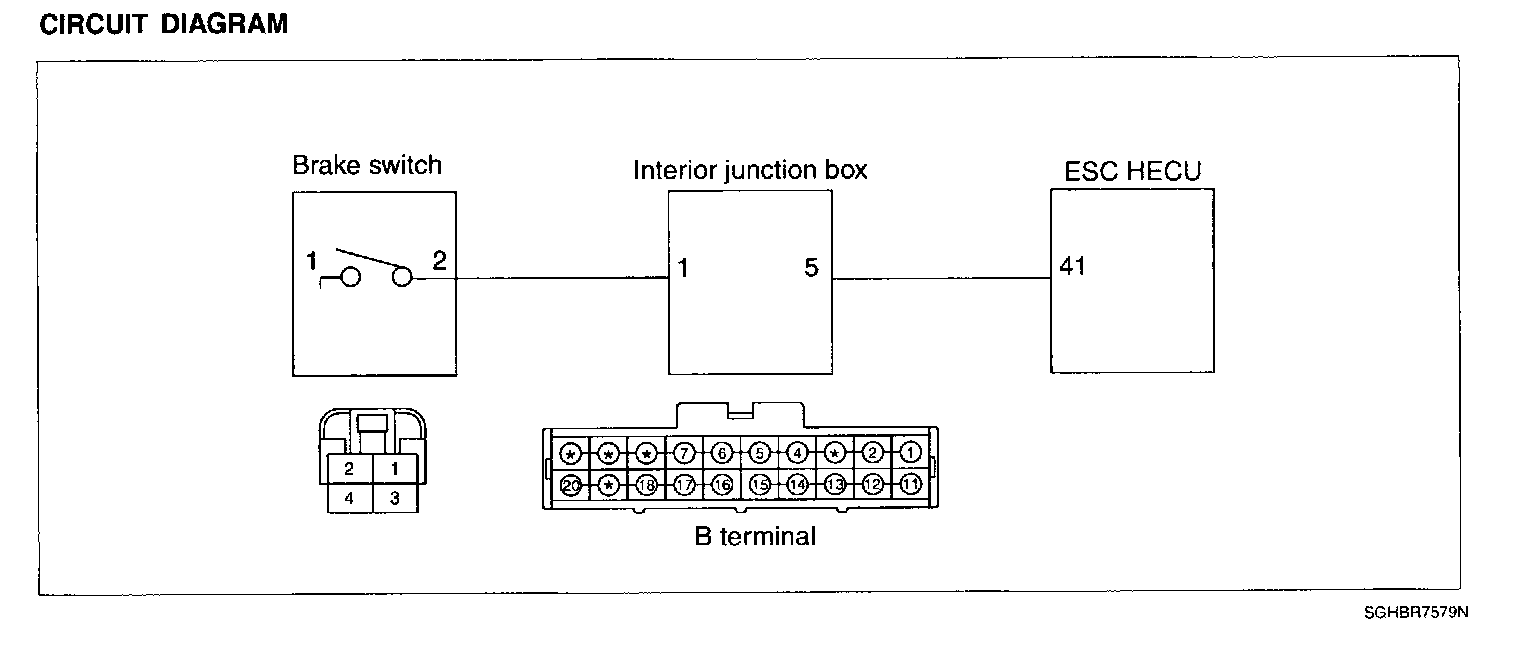

3. Circuit diagram.
