Trunk / Liftgate Switch: Testing and Inspection

TRUNK LID OPEN SWITCH

INSPECTION
1. Remove the front door trim panel.

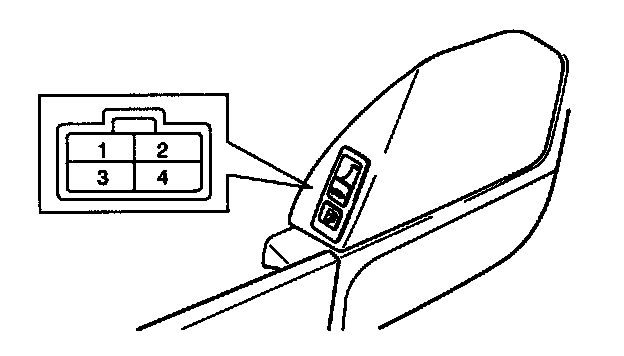

2. Check the switch for continuity between the No. 3 and No. 4 terminals.




3. If the continuity is not as specified, replace the switch.
