Electronic Brake Control Module: Testing and Inspection

HECU INPUT/OUTPUT DIAGRAM

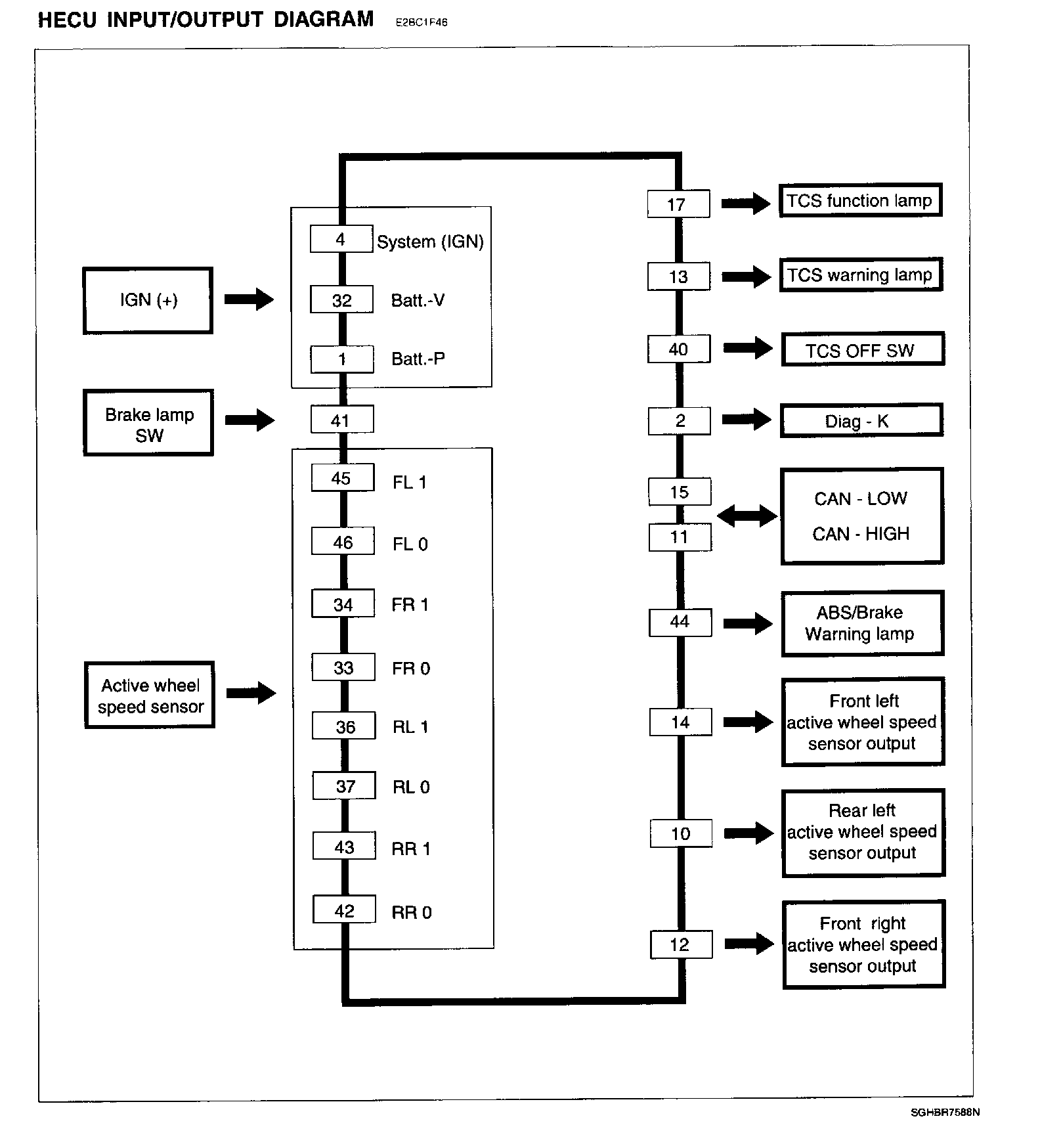

HECU INPUT/OUTPUT DIAGRAM:





ABS/TCS CONTROL UNIT

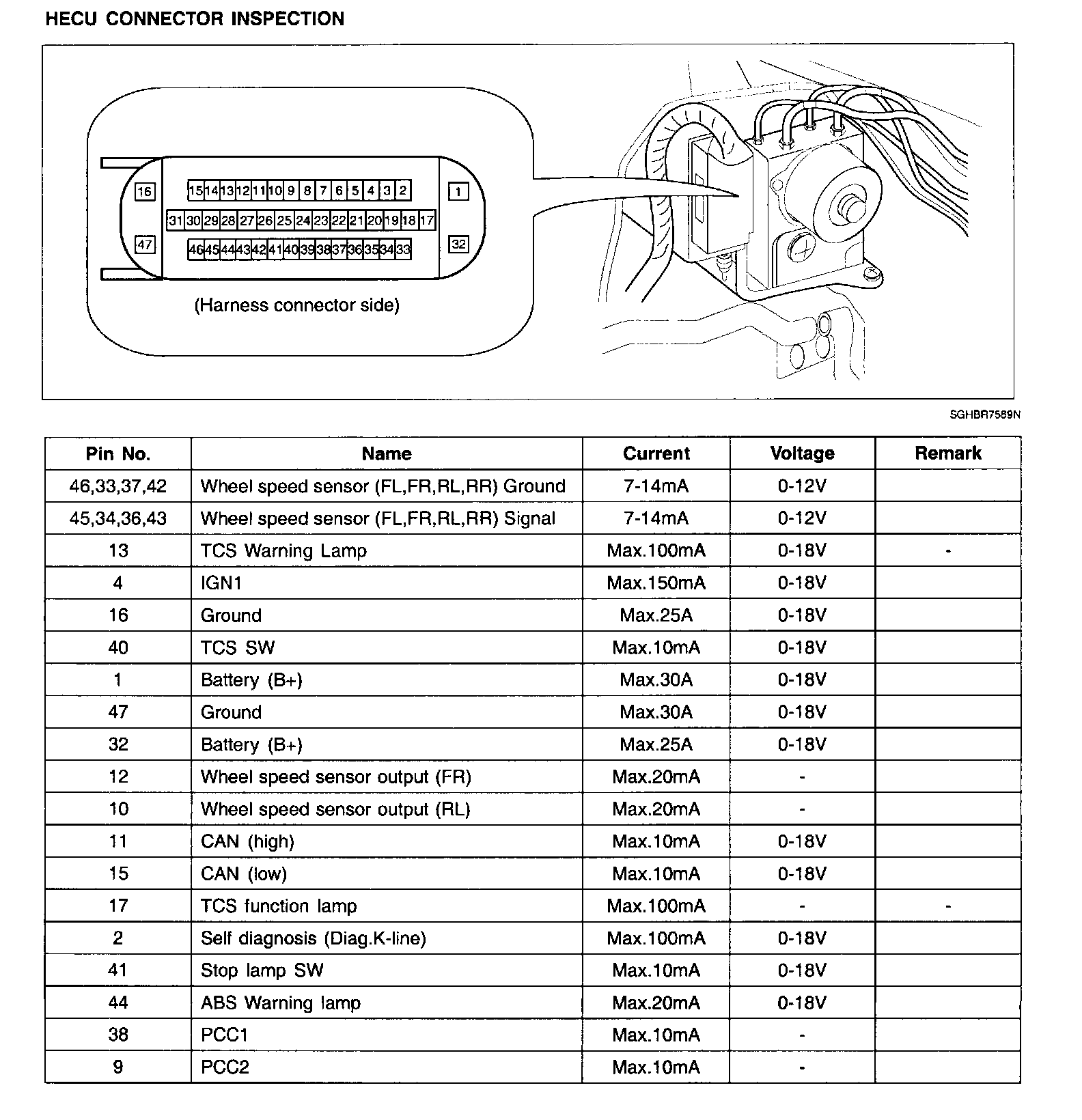

HECU CONNECTOR INSPECTION:





ACTUATOR DRIVING

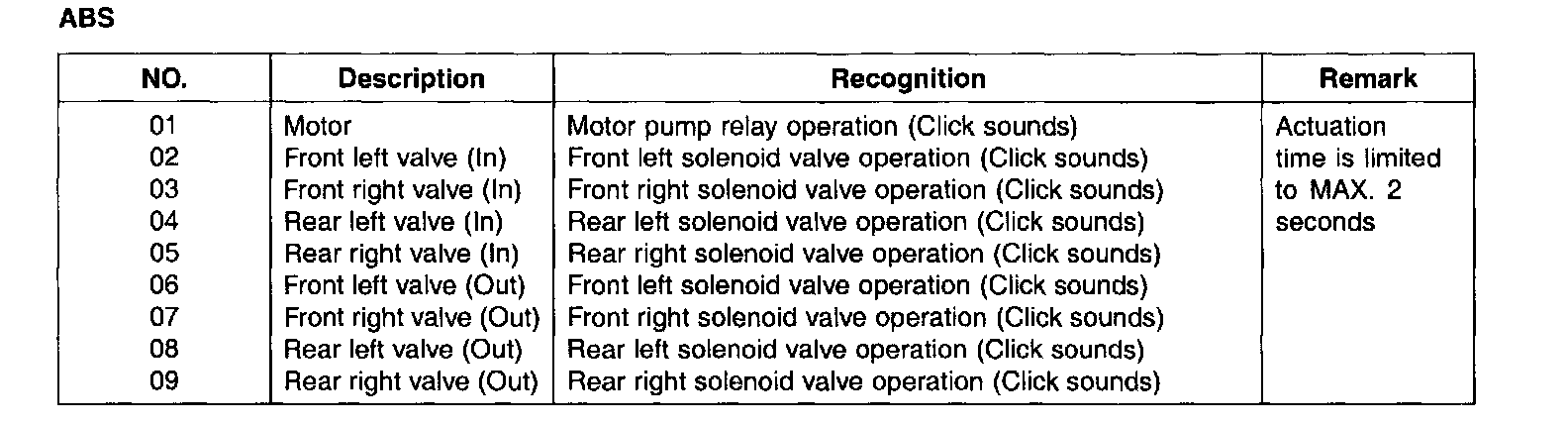

ABS:

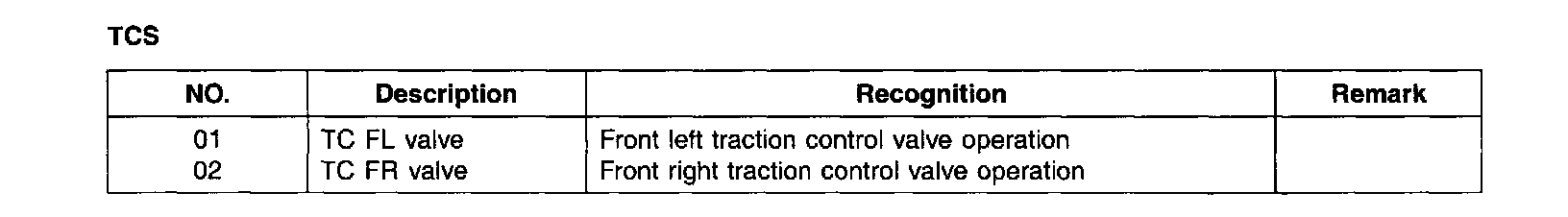

TCS:





CURRENT DATA

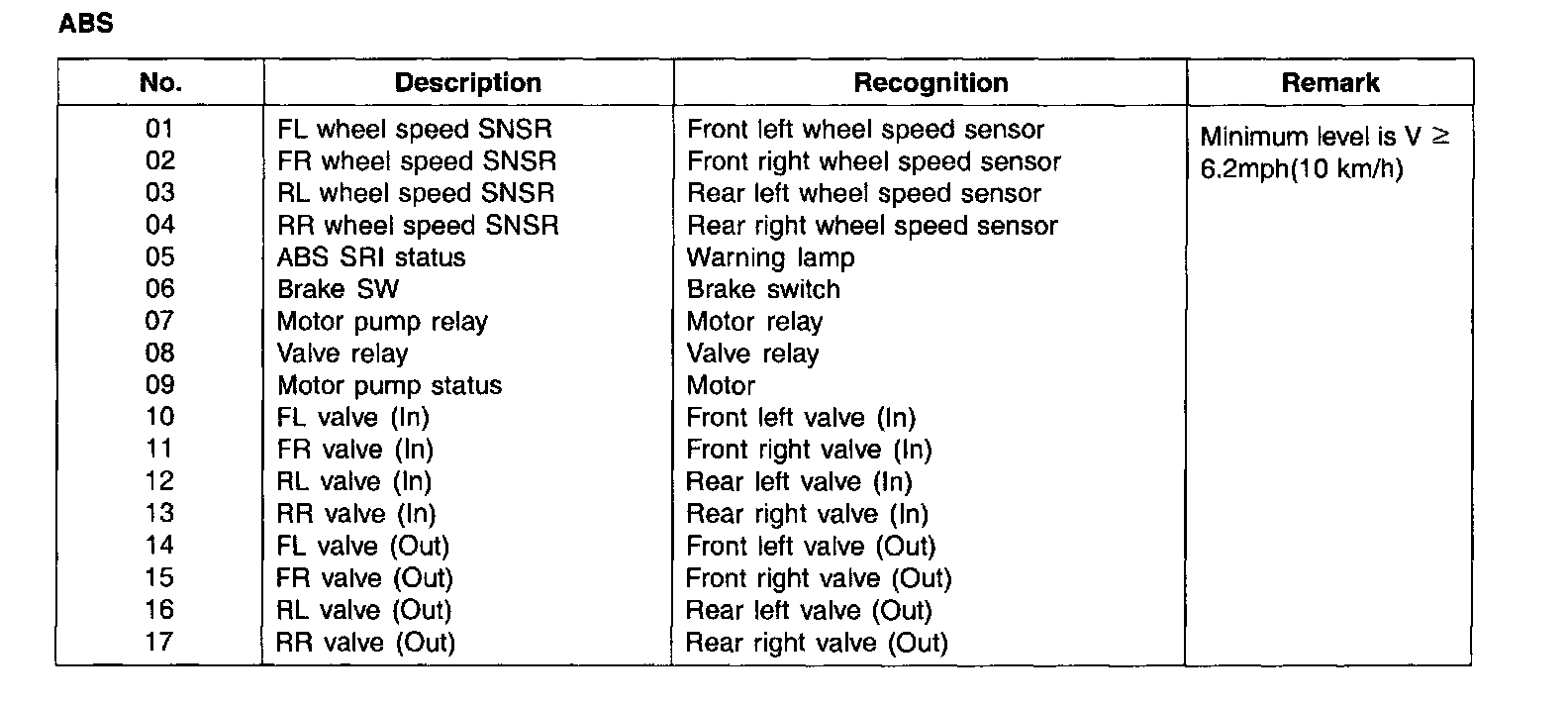

ABS:

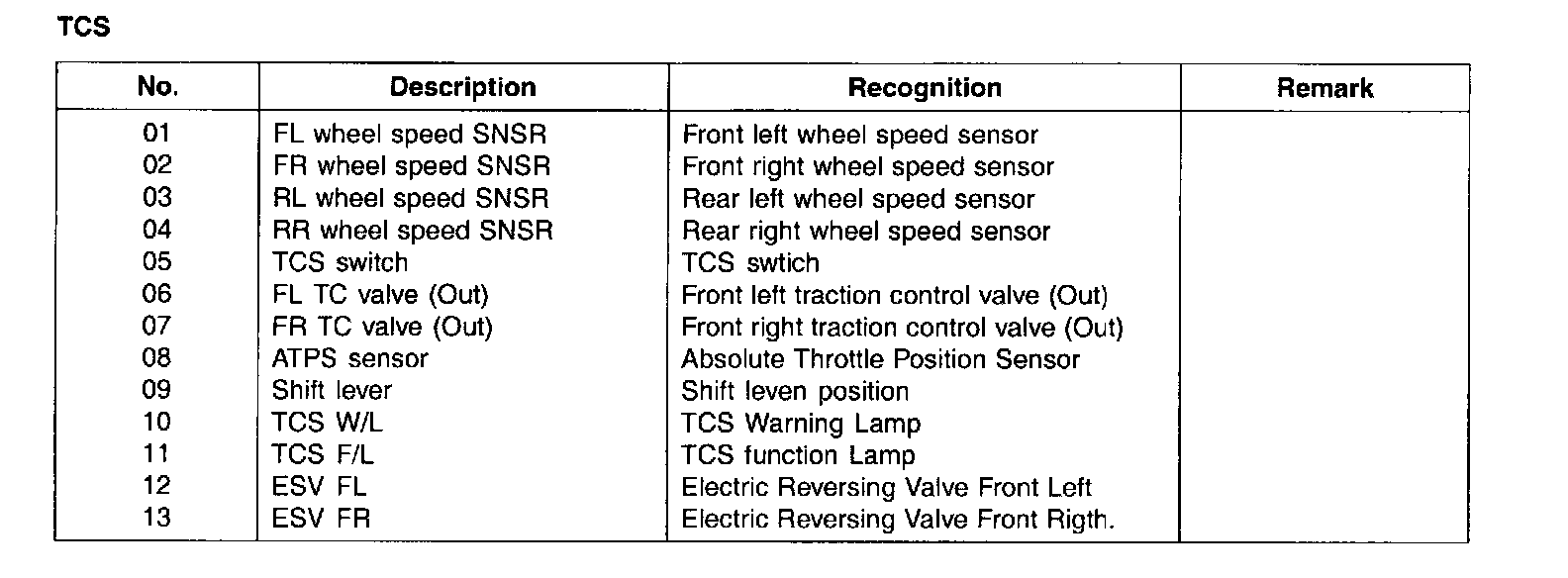

TCS:
