Accelerator Pedal: Service and Repair
ACCELERATOR PEDALREMOVAL
1. Turn ignition switch off, disconnect the negative (-) battery cable.

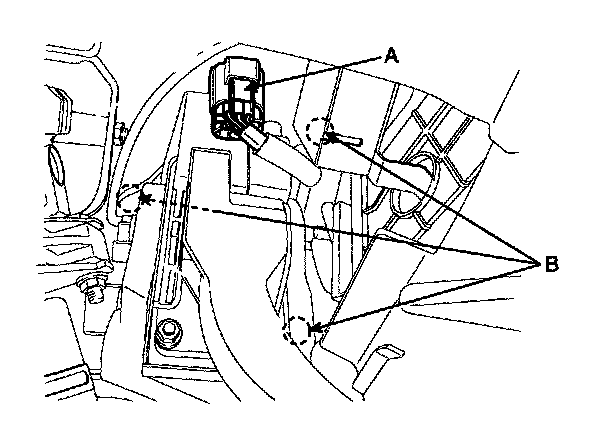

2. Disconnect the accelerator position sensor connector (A).
3. Remove the acceleration pedal assembly after unscrewing 3 mounting bolt (B).
INSTALLATION
1. Install the acceleration pedal assembly according to the reverse order of "REMOVAL" procedure.
Tightening Torque: 7.8 - 11.8 N-m (0.8 - 1.2 kgf-m, 5.8 - 8.7 lbf-ft)
