Fuel Filter: Service and Repair

FUEL PUMP

REMOVAL (INCLUDING FUEL FILTER AND FUEL PRESSURE REGULATOR)
1. Preparation
1. Remove the luggage floor mat in the trunk.

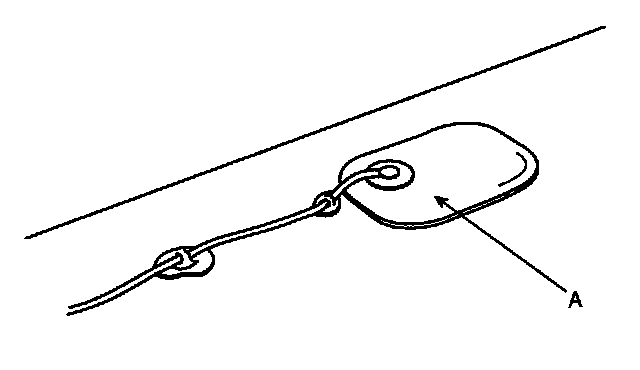

2. Remove the Service Cover (A).

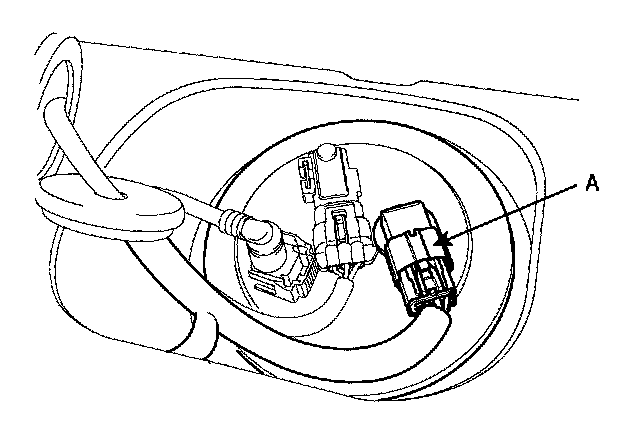

3. Disconnect the Fuel Pump Connector (A).
4. Start the engine and wait until fuel in fuel line is exhausted.
5. After the engine stalls, turn the ignition switch OFF

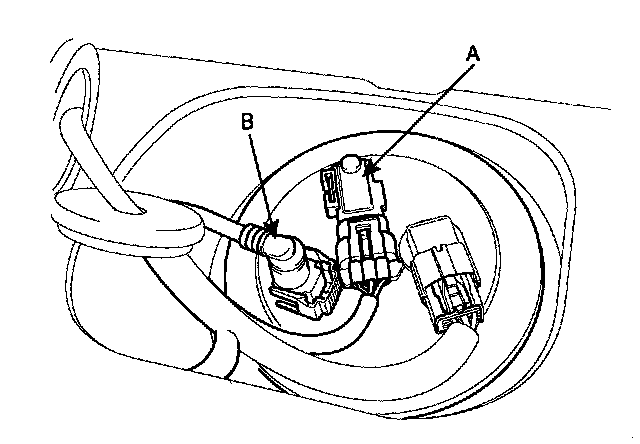

2. Disconnect the Fuel Feed Quick-Connector (A) and the Fuel Tank Pressure Sensor Connector (B).

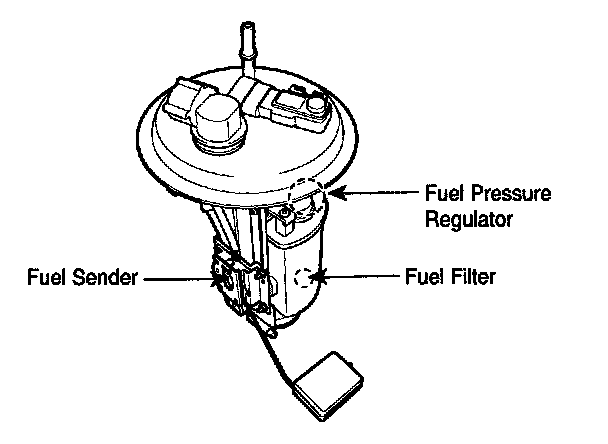

3. Remove the fuel pump plate cover with SST (No :09310-2B200) and remove the fuel pump assembly.

INSTALLATION
1. Install the Fuel Pump assembly according to the reverse order of "REMOVAL" procedure.

Tightening Torque : 78.5 - 98.1 N-m(8.0 - 10.0 kgf-m, 57.9 - 72.4 lbf-ft)
