Turn Signals: Service and Repair
TURN SIGNAL LAMPREMOVAL
REAR COMBINATION LAMP
1. Disconnect the negative (-) battery terminal.

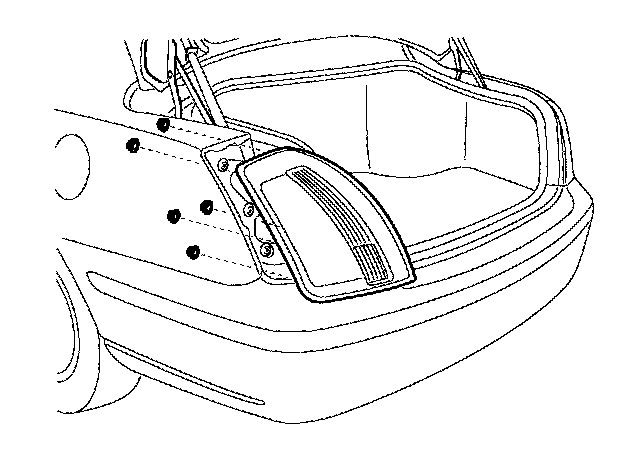

2. Loose the nuts (5EA) holding the rear combination lamp then disconnect the connector then remove the outside rear combination lamp.

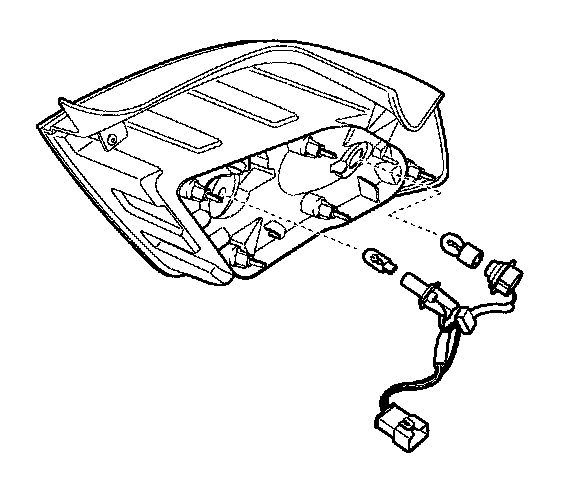

3. Replace the bulbs (2EA) after disconnecting the rear combination lamp assembly.
TURN SIGNAL LAMP(DOOR MIRROR)
1. Disconnect the negative (-) battery terminal.

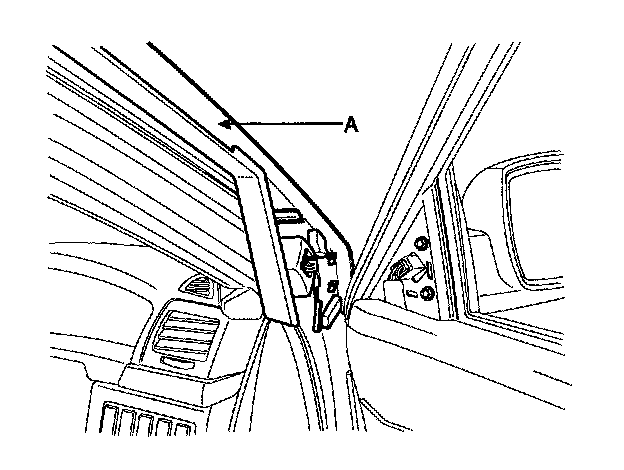

2. Remove the tweeter speaker cover (A).

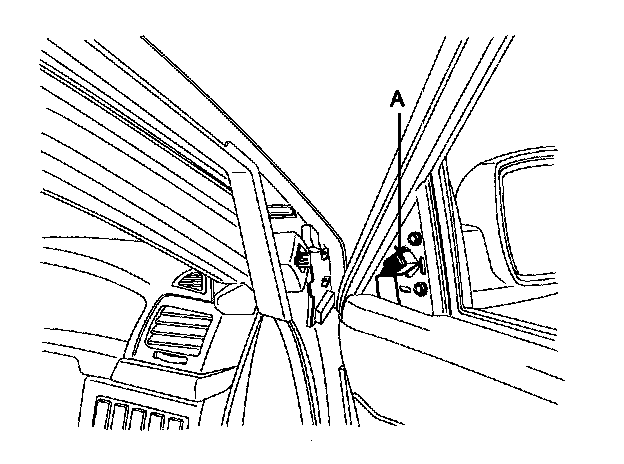

3. Disconnect the door mirror connector (A).

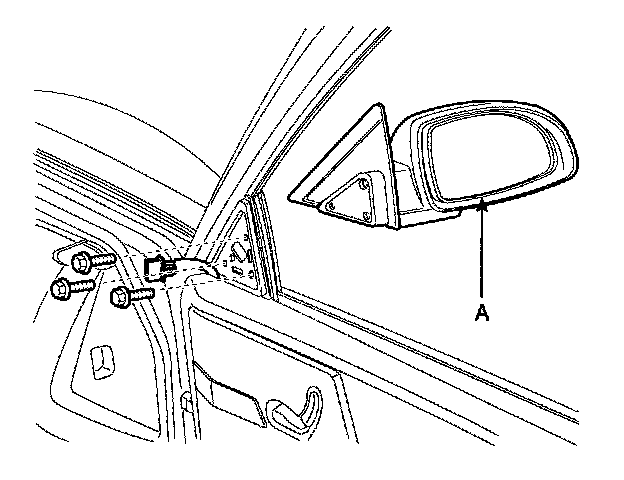

4. Loosen the 3 bolts and screw then remove the door mirror(A).
CAUTION: Turn signal (amp of door mirror is used LED (Light-emitting Diode).
INSTALLATION
REAR COMBINATION LAMP
1. Connect the bulbs to the rear combination lamp assembly.
2. Connect the rear combination lamp connector.
3. Reassemble the rear combination lamp assembly.
TURN SIGNAL LAMP(DOOR MIRROR)
1. Reassemble the door mirror to the door.
2. Connect the door mirror connector.
3. Reassemble the tweeter speaker.
