Tail Lamp: Service and Repair

REMOVAL AND INSTALLATION

1. Remove the battery negative(-) terminal.
2. Loosen the screws(2) of trunk lid inner handle.




3. Remove the rod of trunk lid inner handle, and then remove the trunk lid inner handle.

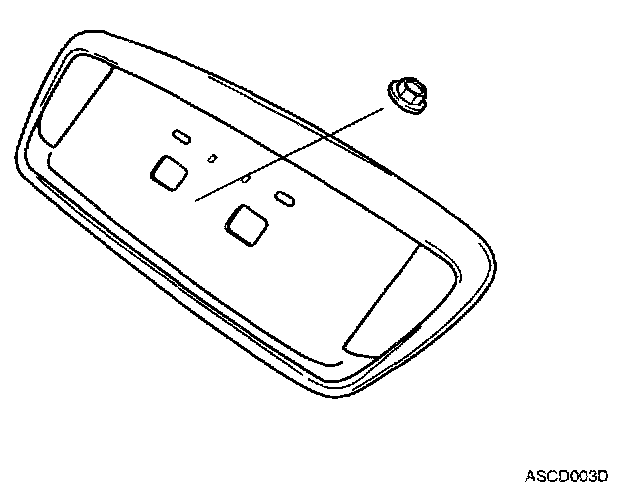

4. Loosen the nuts(11) of trunk lid license plate.




5. Disconnect the connector of trunk lid license lamp, and then remove the trunk lid license plate panel.

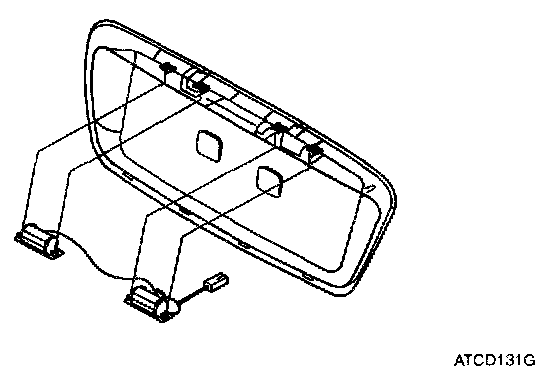

6. Disconnect the connector of license lamp after remove the license lamp.
7. Installation is reverse of removal.

NOTE: If only the bulb of license lamp replace, replace the bulb after removing the lens.
