Instrument Cluster / Carrier: Service and Repair

INSTRUMENT CLUSTER

REMOVAL
1. Disconnect the negative (-) battery terminal.
2. Remove the cluster lower facia panel (A) after loosening 2 screws.




3. Disconnect trip switch connector.

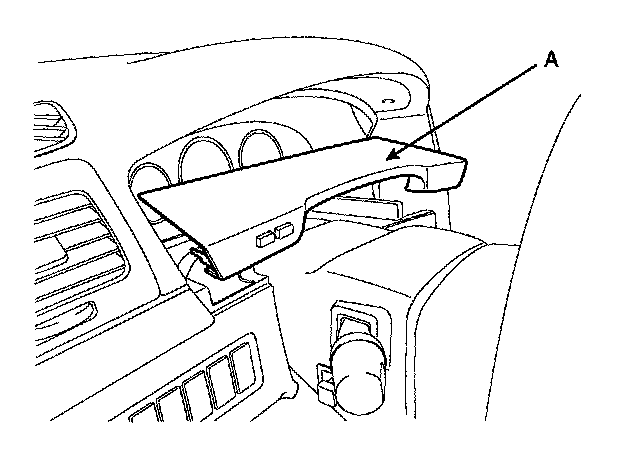

4. Remove the cluster upper facia panel (A) after loosening 2 screws.

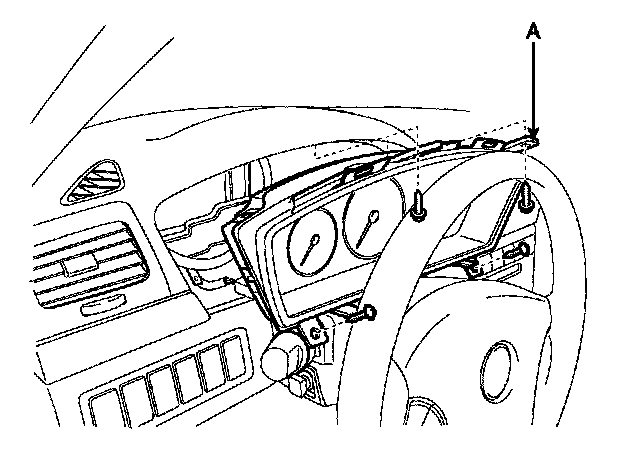

5. Pull out the cluster (A) from the housing after removing 4 screws.
6. Disconnect the cluster connecters and then remove the cluster.

INSTALLATION
1. Assemble the cluster after connecting the cluster connectors.
2. Install the cluster with 4 screws.
3. Install the cluster upper facia panel.
4. Install the cluster lower facia panel after connecting the trip switch connectors.
