Water Pump Installation

INSTALLATION

WATER PUMP

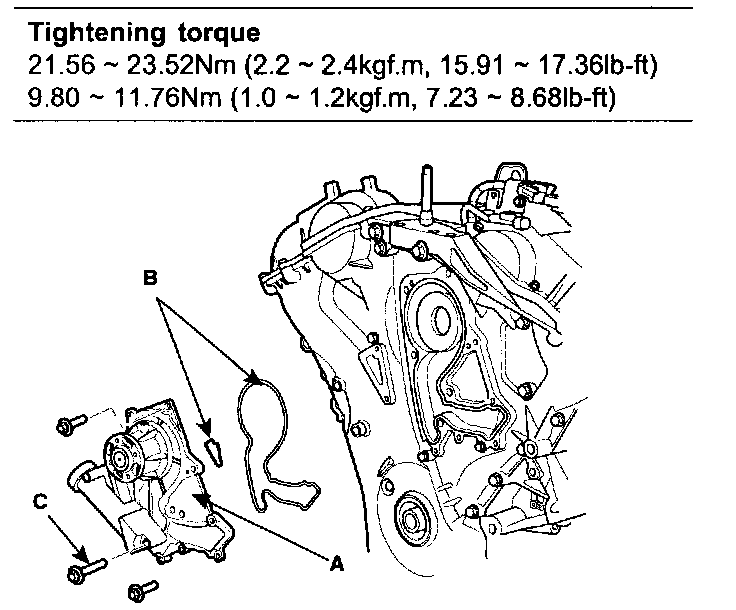

1. Install the water pump (A) and a new gasket (B) with 12 bolts.





NOTE:
^ Clean the contact face before assembly.
^ Always use a new bolt (C) and gaskets (B).

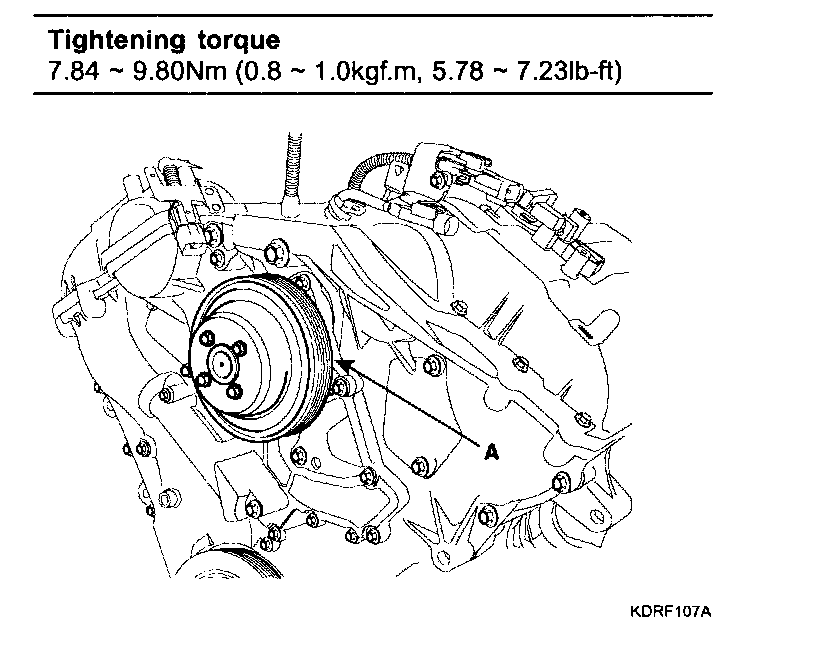

2. Install the 4 bolts and pump pulley (A).





3. Install drive belt (A).





4. Fill with engine coolant.
5. Start engine and check for leaks.
6. Recheck engine coolant level.
