Thermostat Removal

REMOVAL

THERMOSTAT

NOTE:
Removal of the thermostat would have an adverse effect, causing a lowering of cooling efficiency. Do not remove the thermostat, even if the engine tends to overheat.

1. Drain engine coolant so its level is below thermostat.

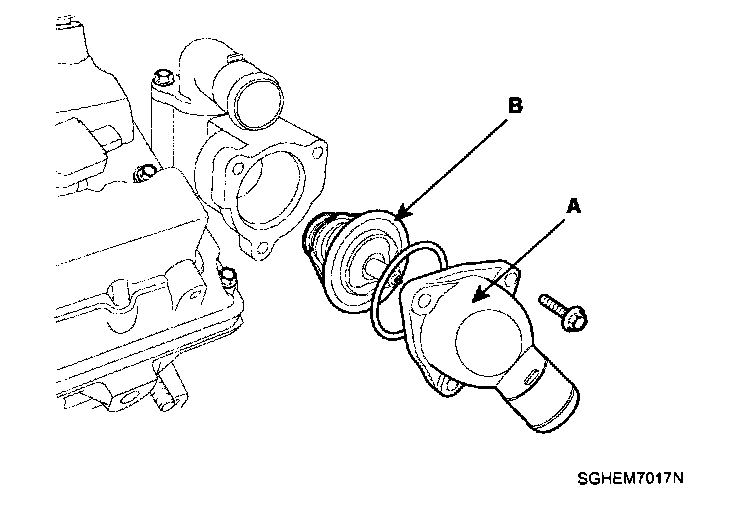

2. Remove water inlet (A) and thermostat (B).
