Thermostat Installation

INSTALLATION

THERMOSTAT

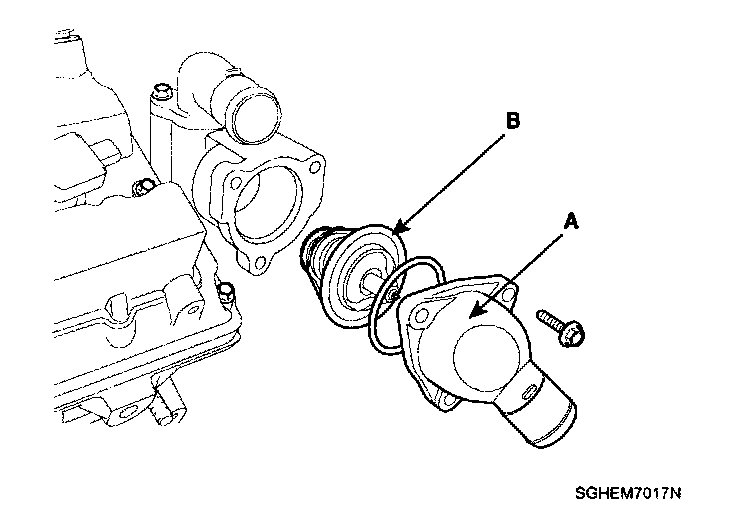

1. Place thermostat in thermostat housing.
1) Install the thermostat with the jiggle valve upward.
2) Install a new thermostat (B).





2. Install water inlet (A).

Tightening torque
16.66 - 19.60 Nm (1.7 - 2.0 kgf.m, 12.30 - 14.47 lb-ft)

3. Fill with engine coolant.
4. Start engine and check for leaks.
