Water Temperature Control Assembly Installation

INSTALLATION

WATER TEMPERATURE CONTROL ASSEMBLY

NOTE:
Clean the contact face before assembly.

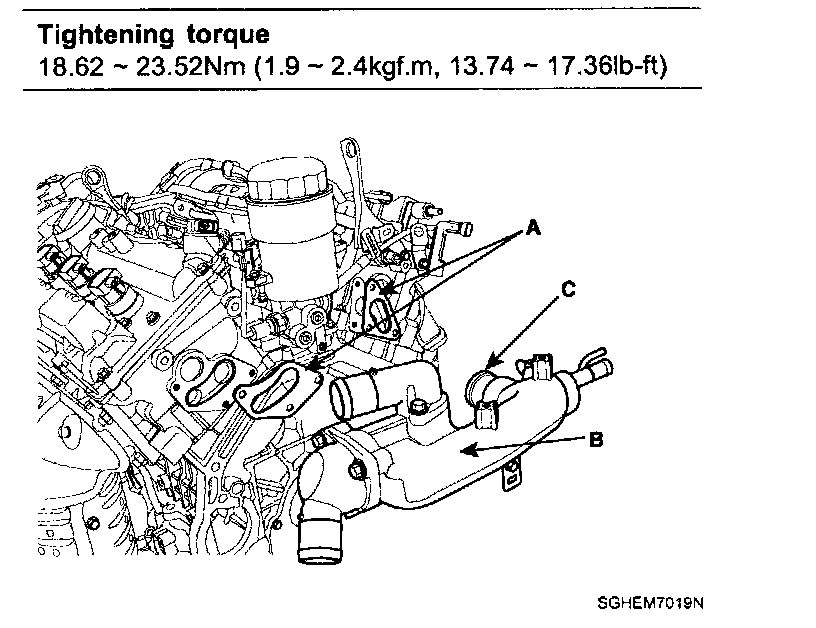

1. Install water temperature control assembly (B) and new gasket (A).





NOTE:
Use new O-rings (C) when reassembling.

2. Connect water hoses to the water temperature control assembly.
3. Install wiring protector.
4. Connect ECT sensor connector.

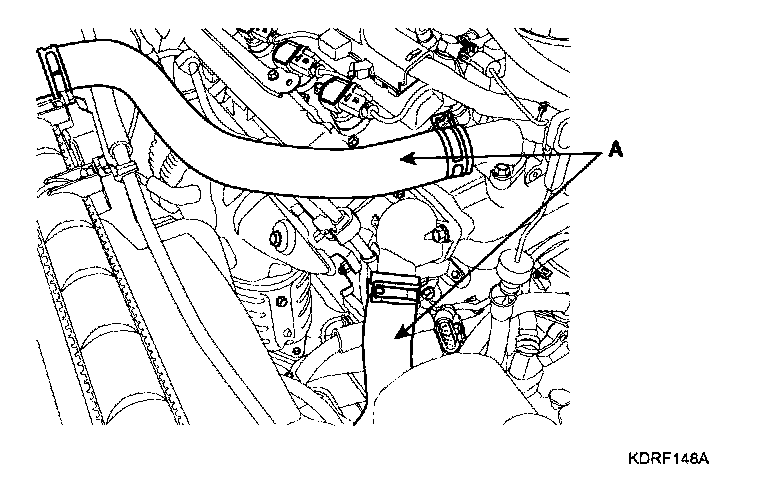

5. Connect radiator upper and lower hose (A).





6. Install air cleaner assembly.
7. Fill with engine coolant.
8. Start engine and check for leaks.
9. Recheck engine coolant level.
