Engine Harness/Battery Harness

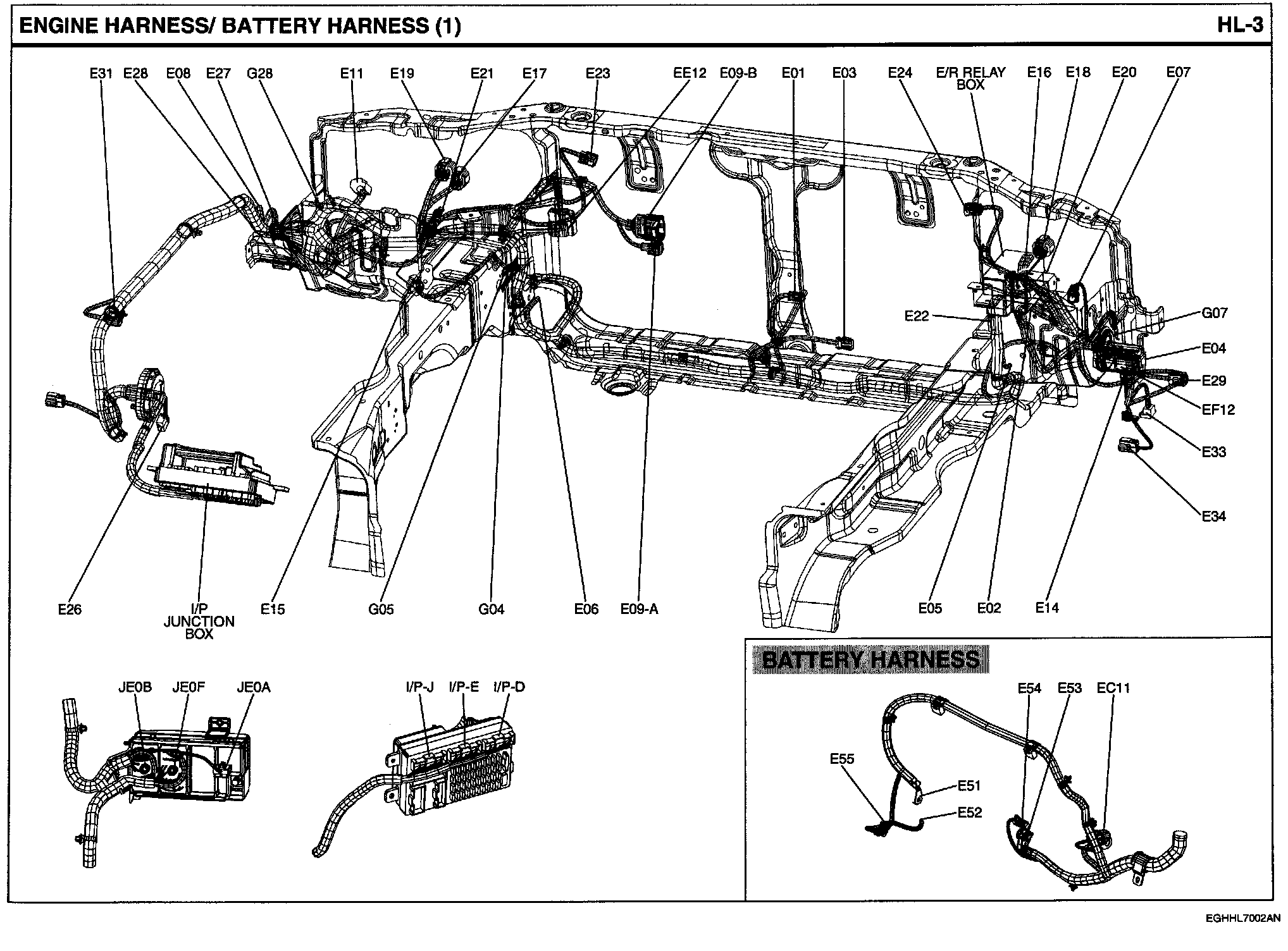

Engine Harness/ Battery Harness (1):

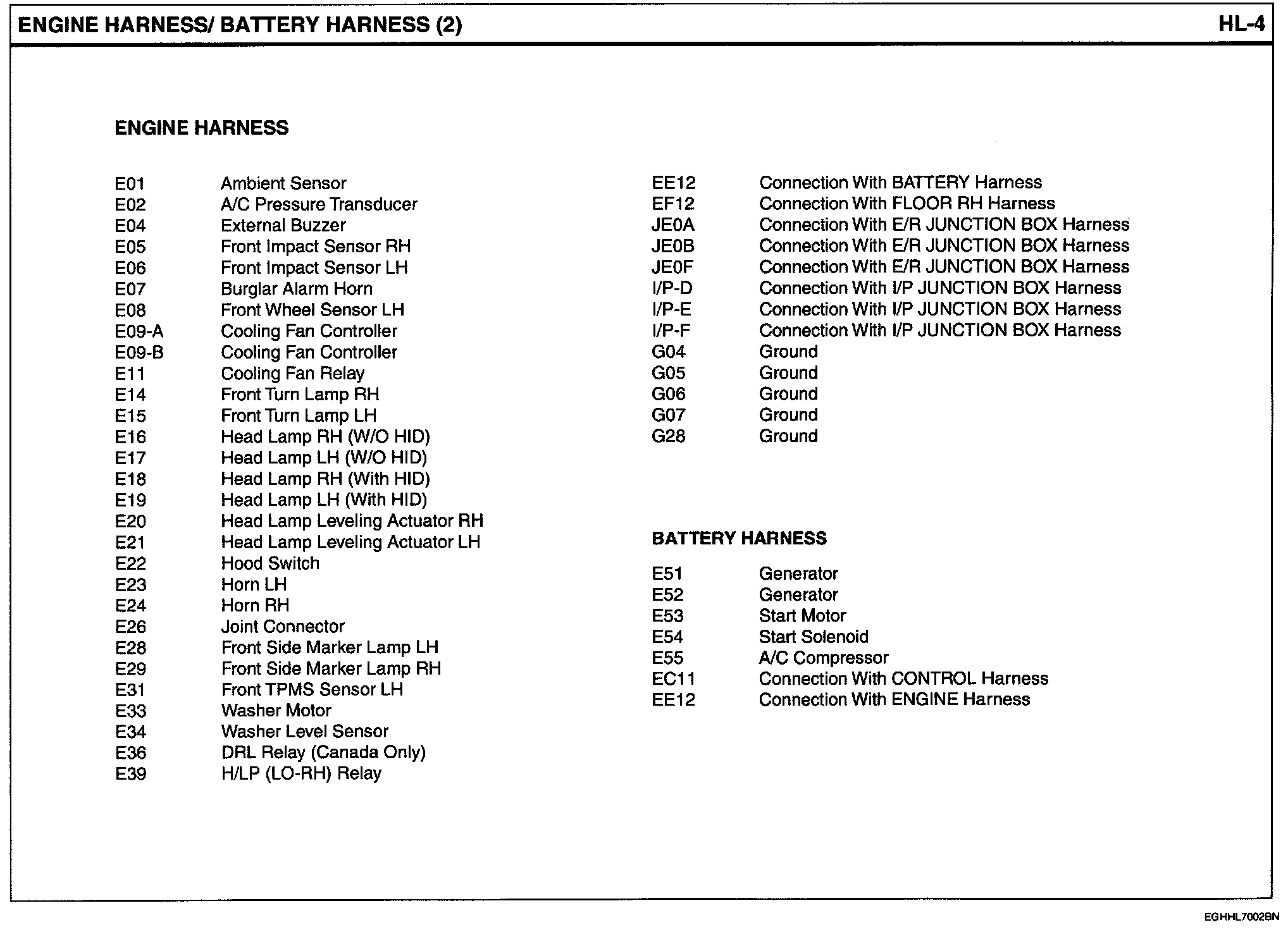

Engine Harness/ Battery Harness (2):
