Diagrams
>>
Electrical Diagrams
>>
Antilock Brakes / Traction Control Systems
>>
System Diagram
>>
Electronic Stability Control (ESC) Circuit Diagram (2)
Electronic Stability Control (ESC) Circuit Diagram (2)

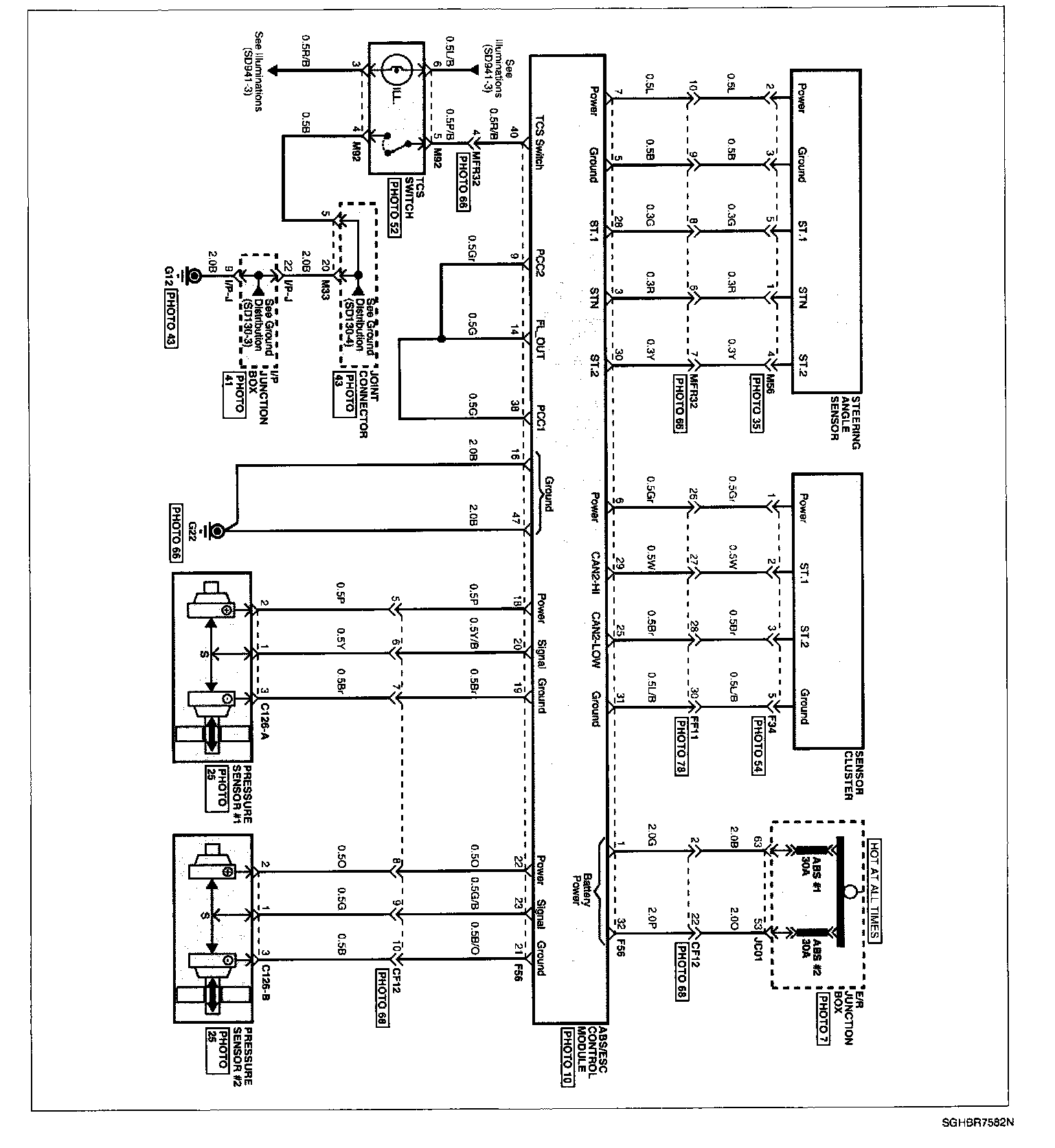

HECU CONTROL UNIT (ESC) CIRCUIT DIAGRAM (2)
HECU CONTROL UNIT (ESC) CIRCUIT DIAGRAM (PART 2):
