Front

REMOVAL

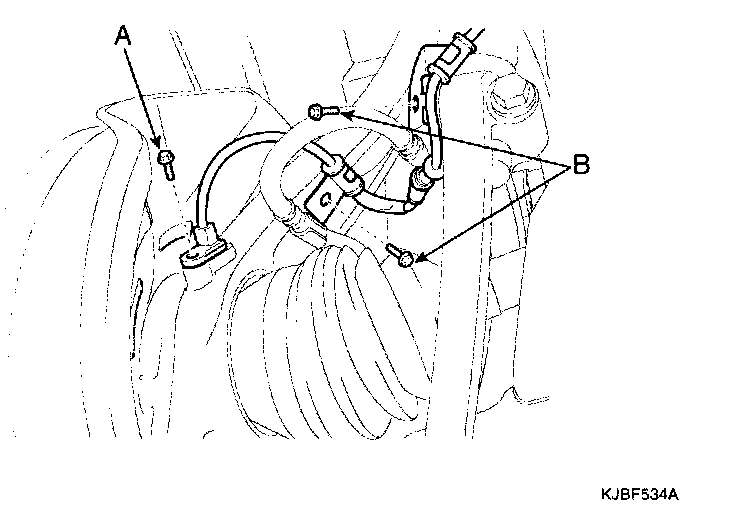

1. Remove the front wheel speed sensor mounting bolt (A).

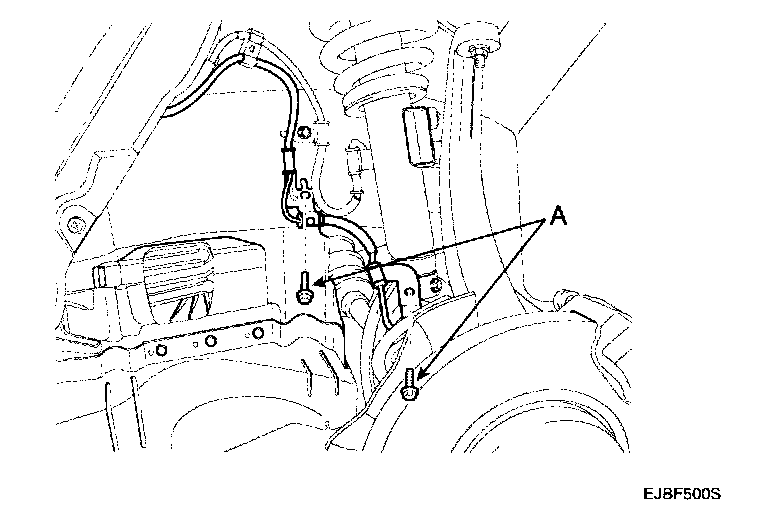

2. Remove the two wire bracket bolts (A).





3. Remove the front wheel guard.

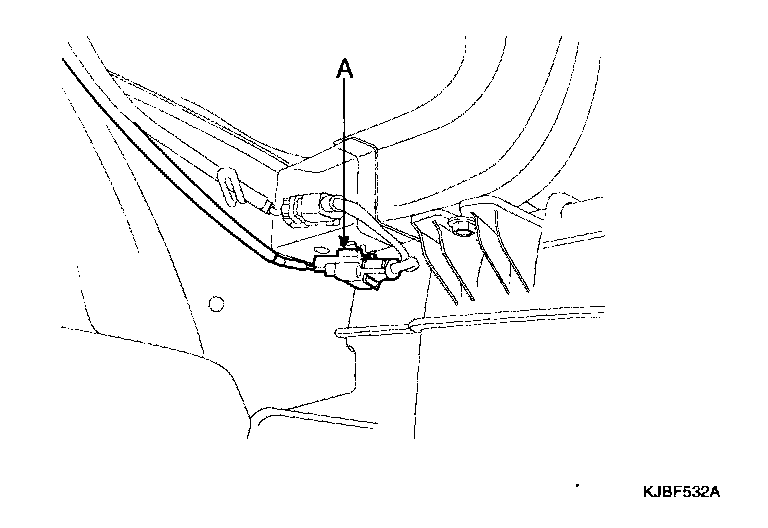

4. Remove the front wheel speed sensor after disconnecting the wheel speed sensor connector (A).
