Rear

SEIZING OF REAR BRAKE DISC

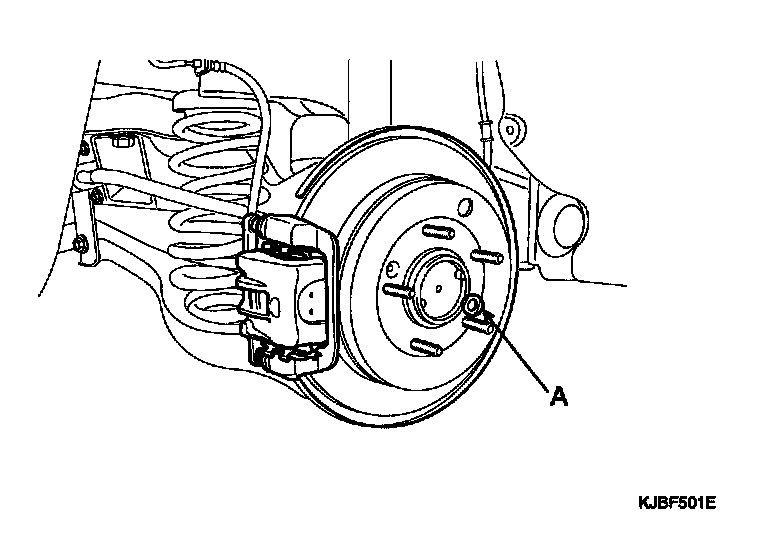

1. Remove the brake disc from hub using an M8 screw (A) if the brake disc has been seized with the hub due to corrosion or overheating.

NOTE:
Be careful not to use a hammer. The disc can be damaged if you remove the disc from the hub by hammering.
