Home >> Kia >> 2007 >> Amanti V6-3.8L >> Repair and Diagnosis >> Brakes and Traction Control >> Disc Brake System >> Brake Pad >> Service and Repair >> Procedures

Procedures

FRONT DISC BRAKE

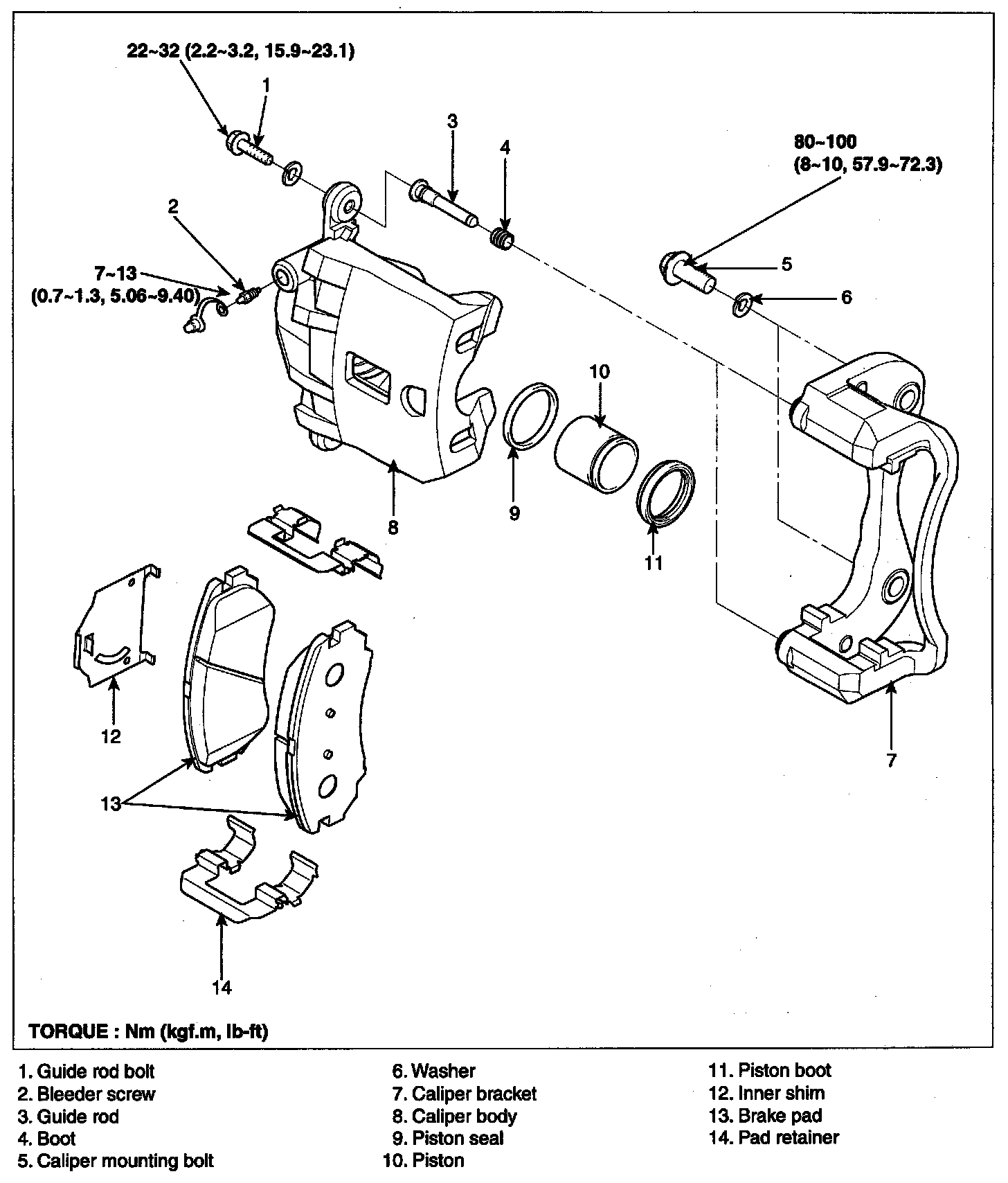

Front Disc Brake Components (Part 1):

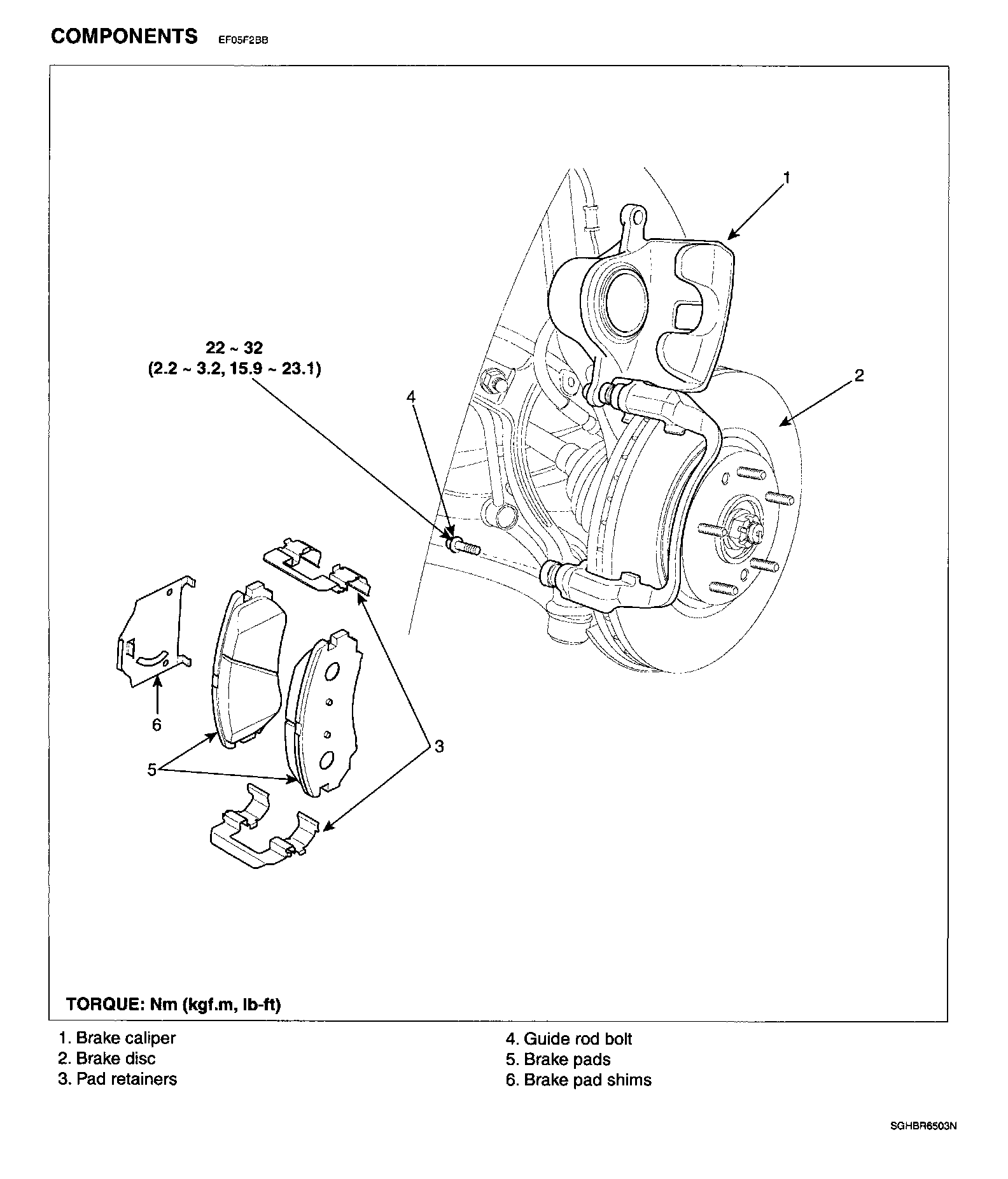

Front Disc Brake Components (Part 2):
