Seats: Testing and Inspection
AIR VENTILATION SEATINSPECTION

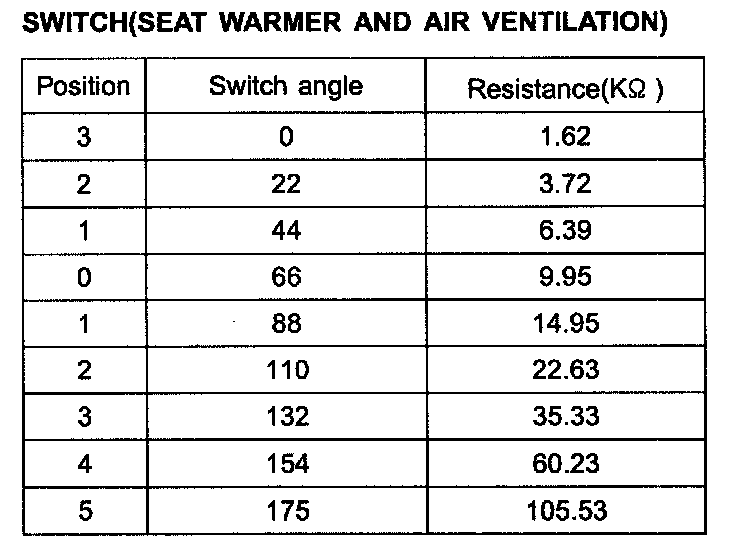

FRONT AIR VENTILATION SEAT SWITCH

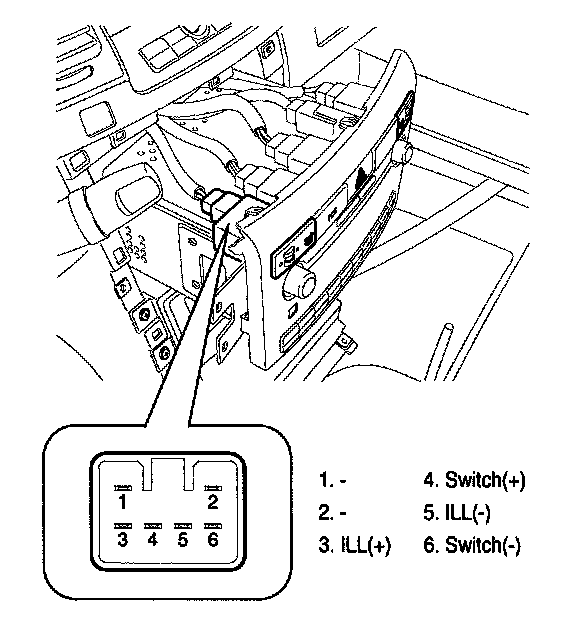

1. Remove the front air ventilation seat switch assembly after removing the center facia panel.
2. Remove the front air ventilation seat switch (Drive, Assist) Connectors(6P).
3. Check the resistance between switch connector terminals 4 and 6 at each switch position if the resistance is not as specified, replace the switch.
BACK FAN

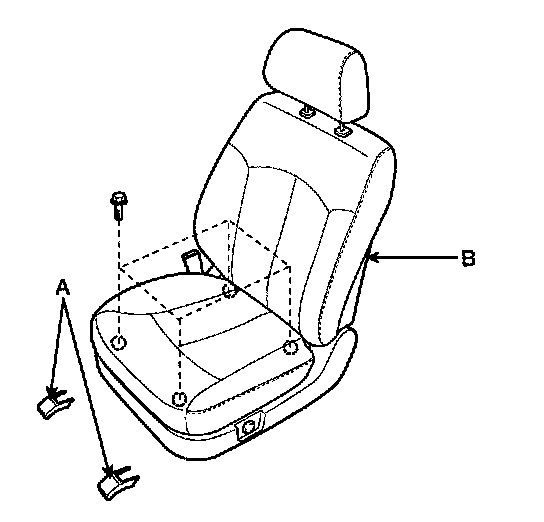

1. Remove the seat assembly mounting cover (A). After loosening the seat assembly mounting bolts, remove the seat assembly (B).

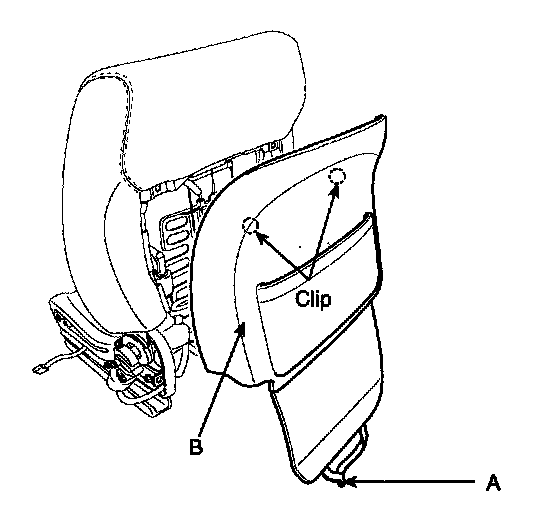

2. After disconnecting the scuff band (A), remove the seat back panel (B).

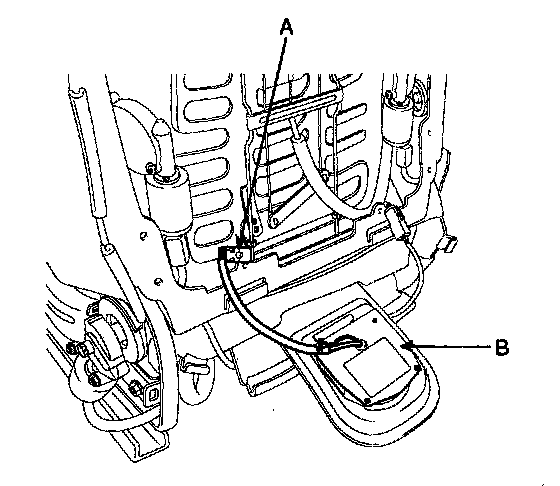

3. Disconnect the connector (A) from the seat cover. And if the FAN (B) is not operating properly, change the FAN.
CUSHION FAN

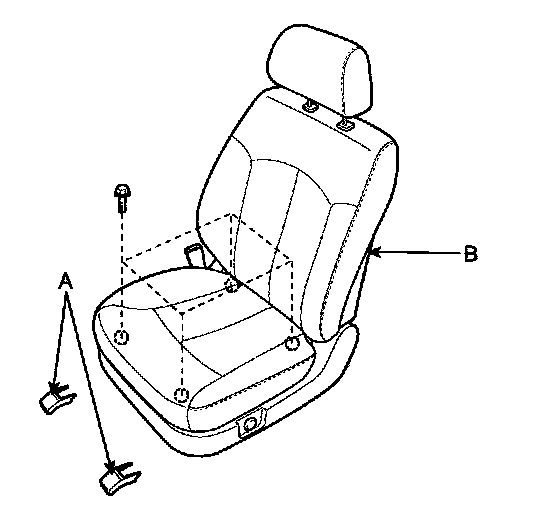

1. Remove the seat assembly mounting cover (A). After loosening the seat assembly mounting bolts, remove the seat assembly (B).

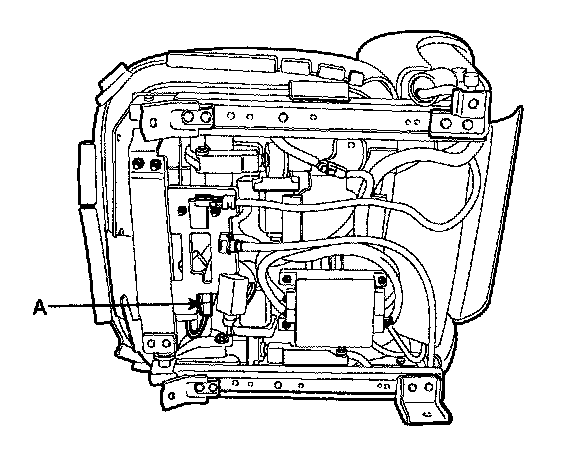

2. Disconnect the connector (A) from the seat cover. And if the FAN (B) is not operating properly, change the FAN.
