Seats: Service and Repair

REPLACEMENT

SEAT ASSEMBLY REPLACEMENT

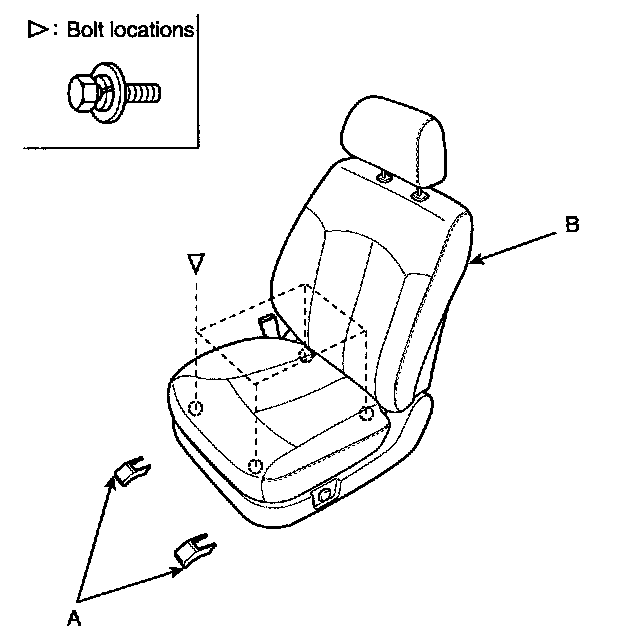

1. Remove the seat assembly mounting cover (A).




2. After loosening the seat assembly mounting bolts and nuts, remove the seat assembly (B).
3. Disconnect the connectors, and remove the seat assembly.




DRIVER'S

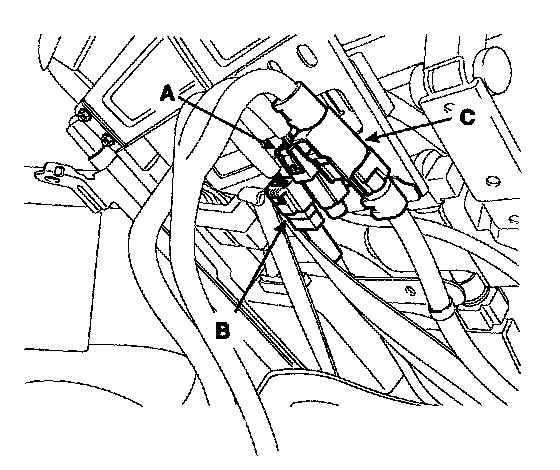

- Disconnect the power seat connector (A), seat belt buckle connector (B), airbag connector (C).




PASSENGER'S

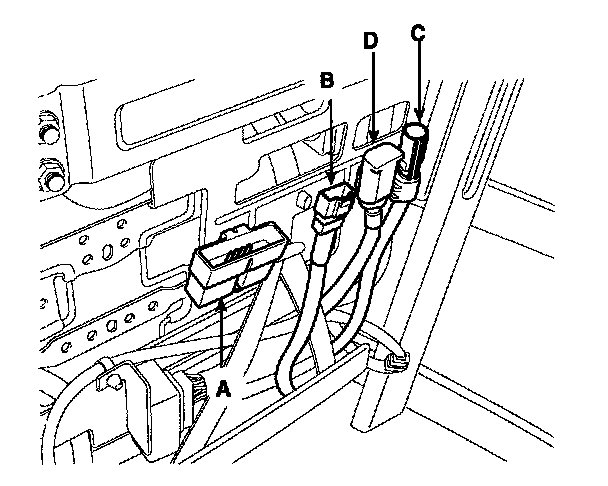

- Disconnect the power seat connector (A), seat belt buckle connector (B), airbag connector (C) OCS connector (D).

4. Installation is the reverse of removal.

CAUTION:
SEAT MOUNTING BOLT INSTALLATION PROCEDURE (manual seat only)
- Set the into the most rearward position. Check then each slide is locked, and then Tighten the front mounting bolt temporarily.
- Set the seat into most forward position. Check that each slide is locked, and then Tighten the rear mounting bolt completely.
- Set the seat into the most rearward position. Check the front mounting bolt completely.
- Check that the seat operates to and from smoothly and the locking portion locks properly.

RECLINER COVER REPLACEMENT

DRIVER'S

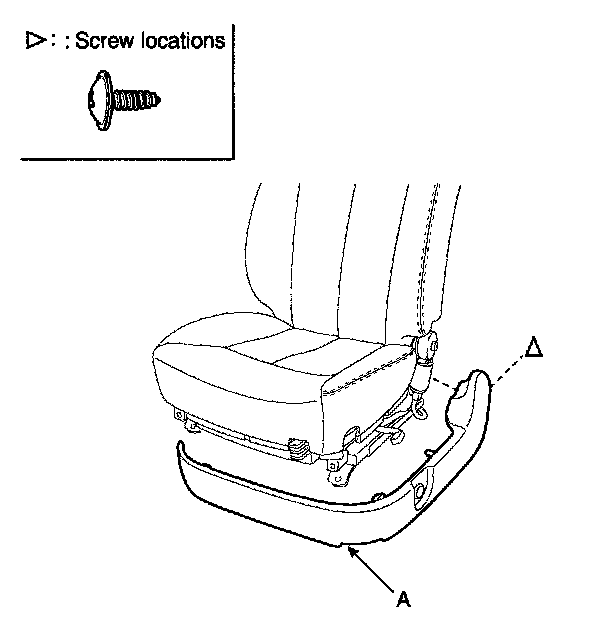

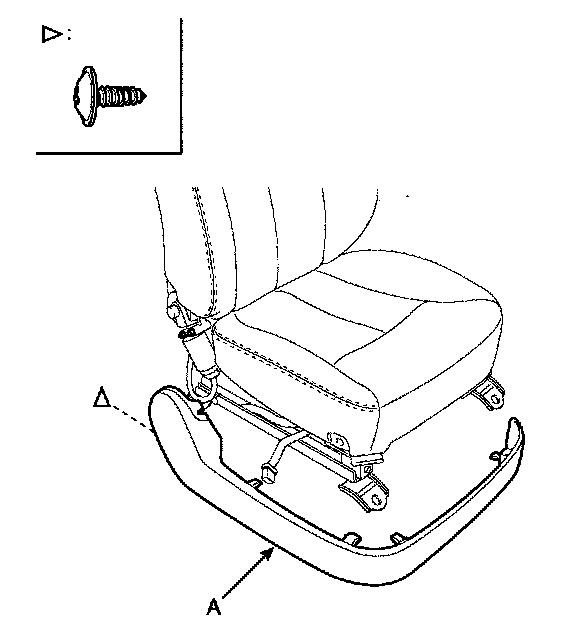

1. After loosening the mounting screws, then remove the recliner cover (A).




2. Gently detach the hook, remove the recliner cover (A).
3. Installation is the reverse of removal.

PASSENGER'S

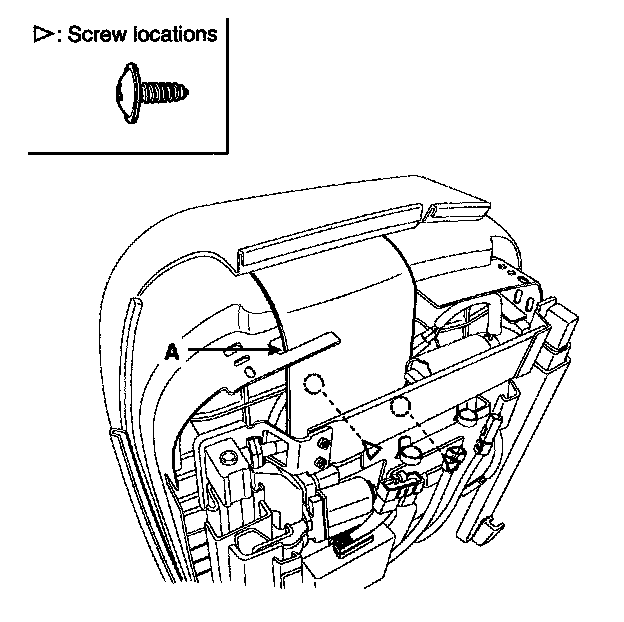

4. After loosening the mounting screw, then remove the recliner cover (A).
5. Installation is the reverse of removal.

SEAT BACK COVER REPLACEMENT
1. Remove front seat assembly.
2. Remove the recliner cover.

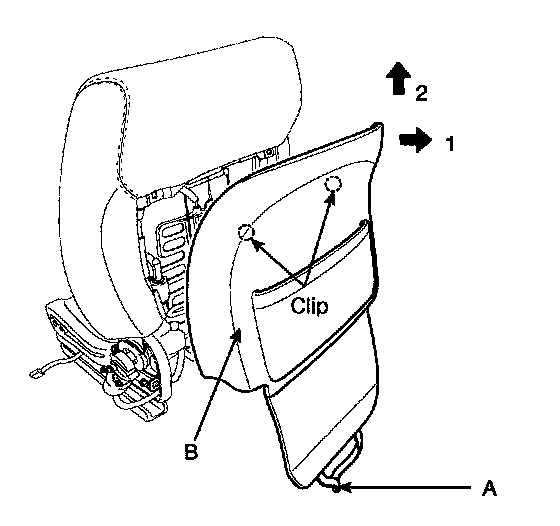

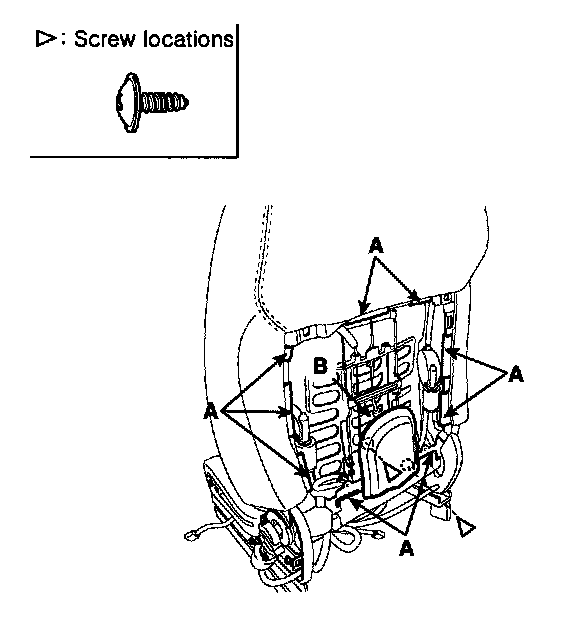

3. After disconnecting the scuff band (A), remove the seat back panel (B).
4. Disconnect the protector (A) from the back frame.




5. Loosen the blower (B) mounting screw.

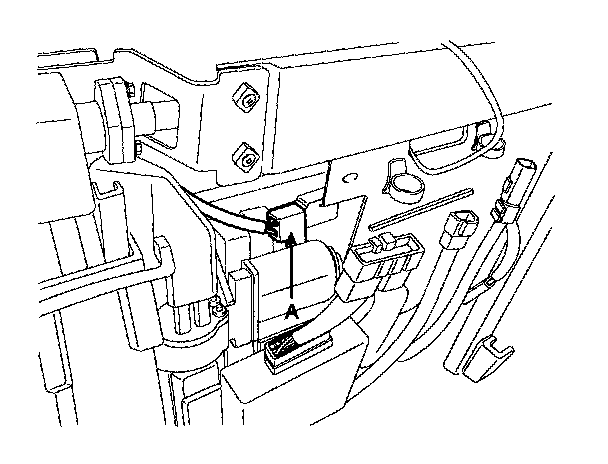

6. Disconnect the connector (A).

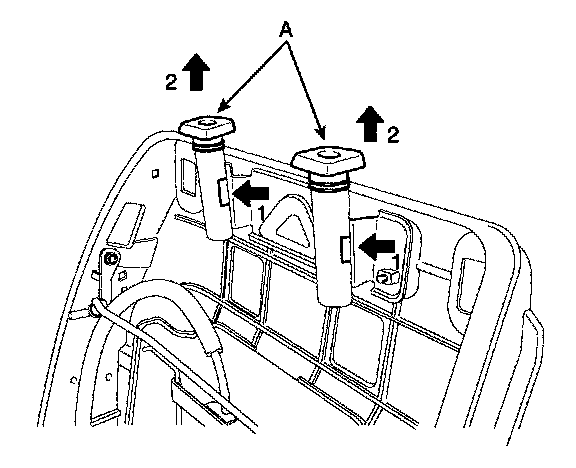

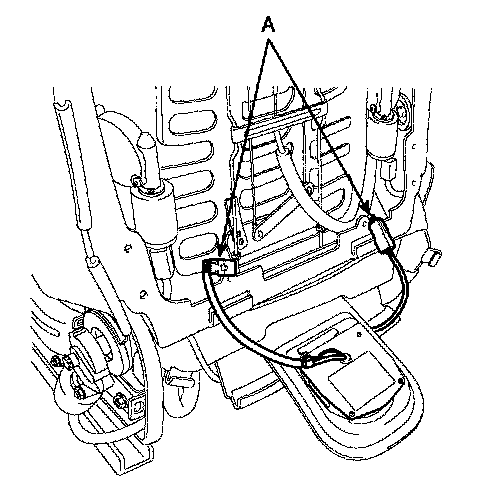

7. Pull out the headrest guides (A) while pinching the end of the guides, and remove them.




8. After removing the hog-ring clip (A) on the front of seat cushion and remove the seat cushion cover (B).
9. Installation is the reverse of removal.

SEAT CUSHION COVER REPLACEMENT
1. Remove front seat assembly.
2. Remove the recliner cover.

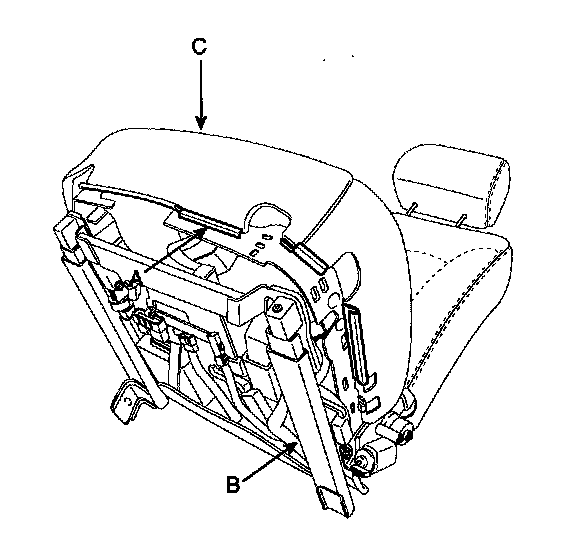

3. After disconnect the protector (A), then remove the seat cushion (B).




4. Loosen the blower mounting screw (B).




5. Disconnect the connector (A).

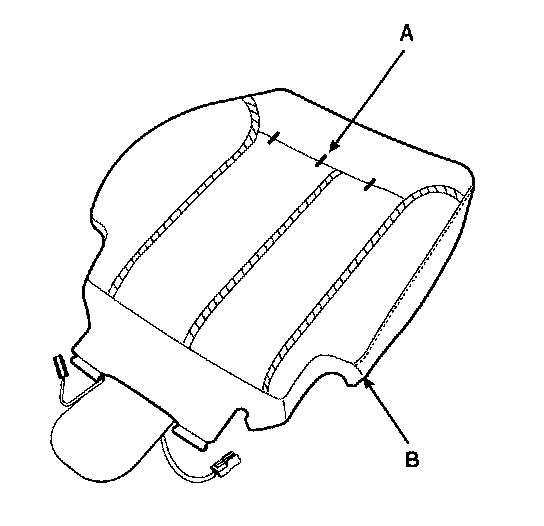

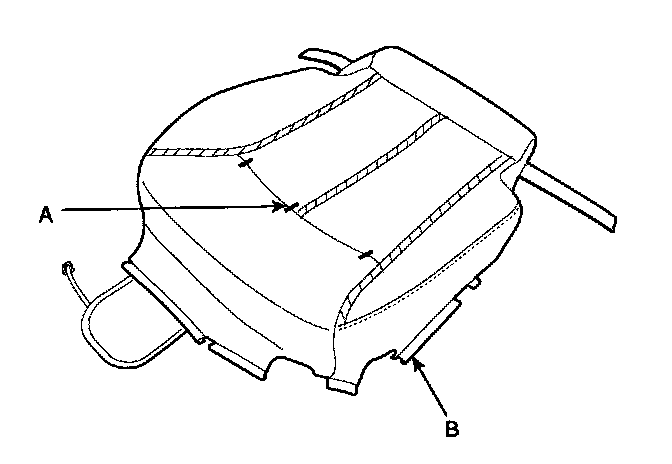

6. After removing the hog-ring clip (A) on the front of seat cushion and remove the seat cushion cover (B).
7. Installation is the reverse of removal.

SEAT FRAME REPLACEMENT
1. Remove the following items.
- Front seat assembly.
- Recliner cover.
- Seat back panel.
- Headrest guide.
- Seat back cover.
- Seat cushion.

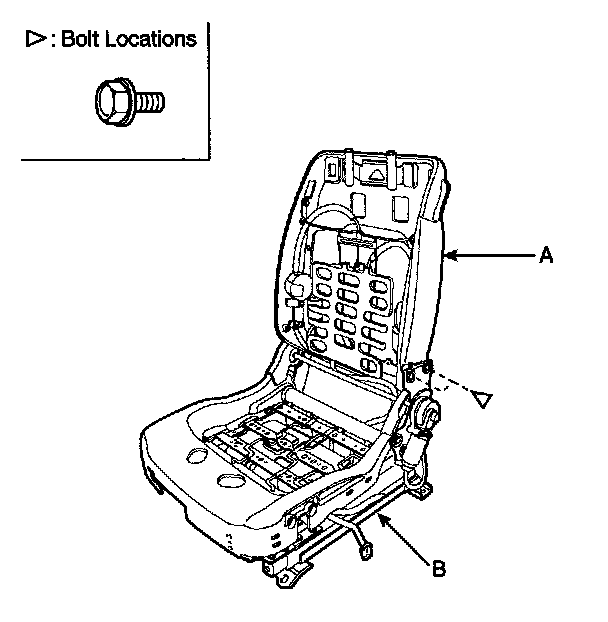

2. After loosening the mounting bolts, then disconnect the seat back frame (A) and seat cushion frame (B).

NOTE:
- Remove the side air bag for replacing side air bag installation seat.
- Be fore service, be fully aware of precautions and service procedure relevant to air bag.

3. Installation is the reverse of removal.

NOTE:
- After installing the OCS, confirm proper system operation: Turn the ignition switch ON, the SRS indicator though be turned on for about six seconds and then go off
- Telltale lamp will turn on for 4 seconds and be turned off afterward.

SEAT CUSHION HEATER REPLACEMENT
1. Remove the seat cushion cover.

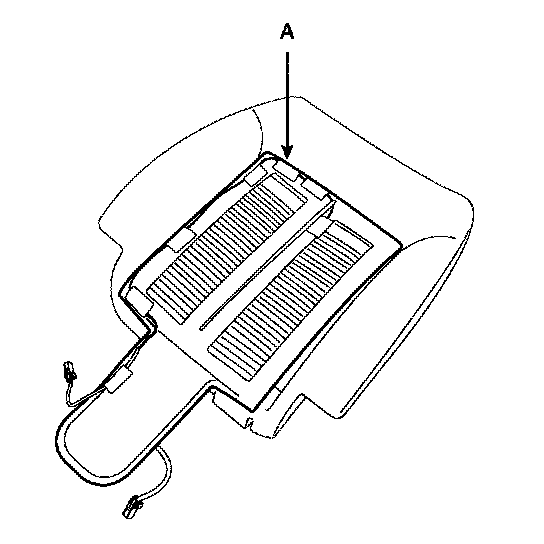

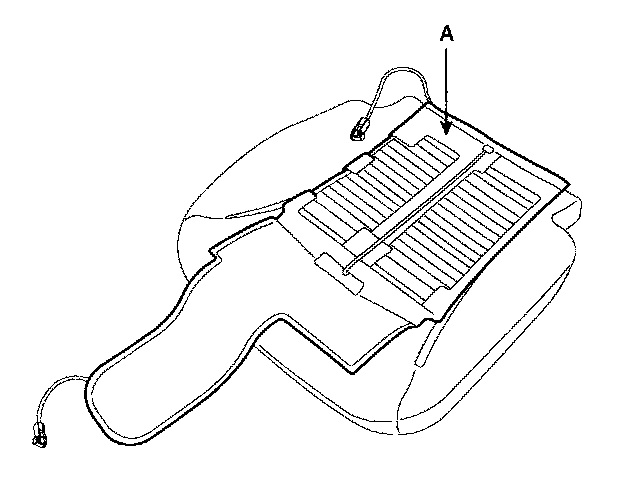

2. Remove the seat cushion heater (A).




3. Install the seat cushion cover.

SEAT BACK HEATER REPLACEMENT
1. Remove the seat back cover.
2. Remove the seat back heater (A).




3. Install the seat back cover.
