Trunk / Liftgate Striker: Adjustments

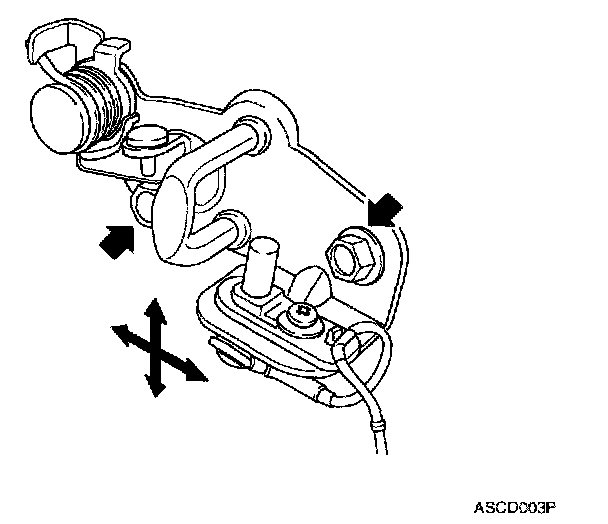

TRUNK LID STRIKER




1. Check that the trunk lid can be closed easily and properly. If there is a problem, loosen the striker mounting bolts and adjust the trunk lid by moving the striker vertically or horizontally.

Tightening torque:
7 - 11 N.m (0.7 - 1.1 Kg.m, 5.1 - 8 - 0 Ib.ft)

2. Adjust the rear offset of the door to the body by moving the trunk lid striker vertically.
