A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Diagnostic Trouble Code Descriptions
>>
Heating, Ventilation and Air Conditioning
Heating, Ventilation and Air Conditioning
BLOWER AND A/C CONTROLS (AUTOMATIC)
CONTROL PANEL
INSPECTION
B1202 - B2418:
1.

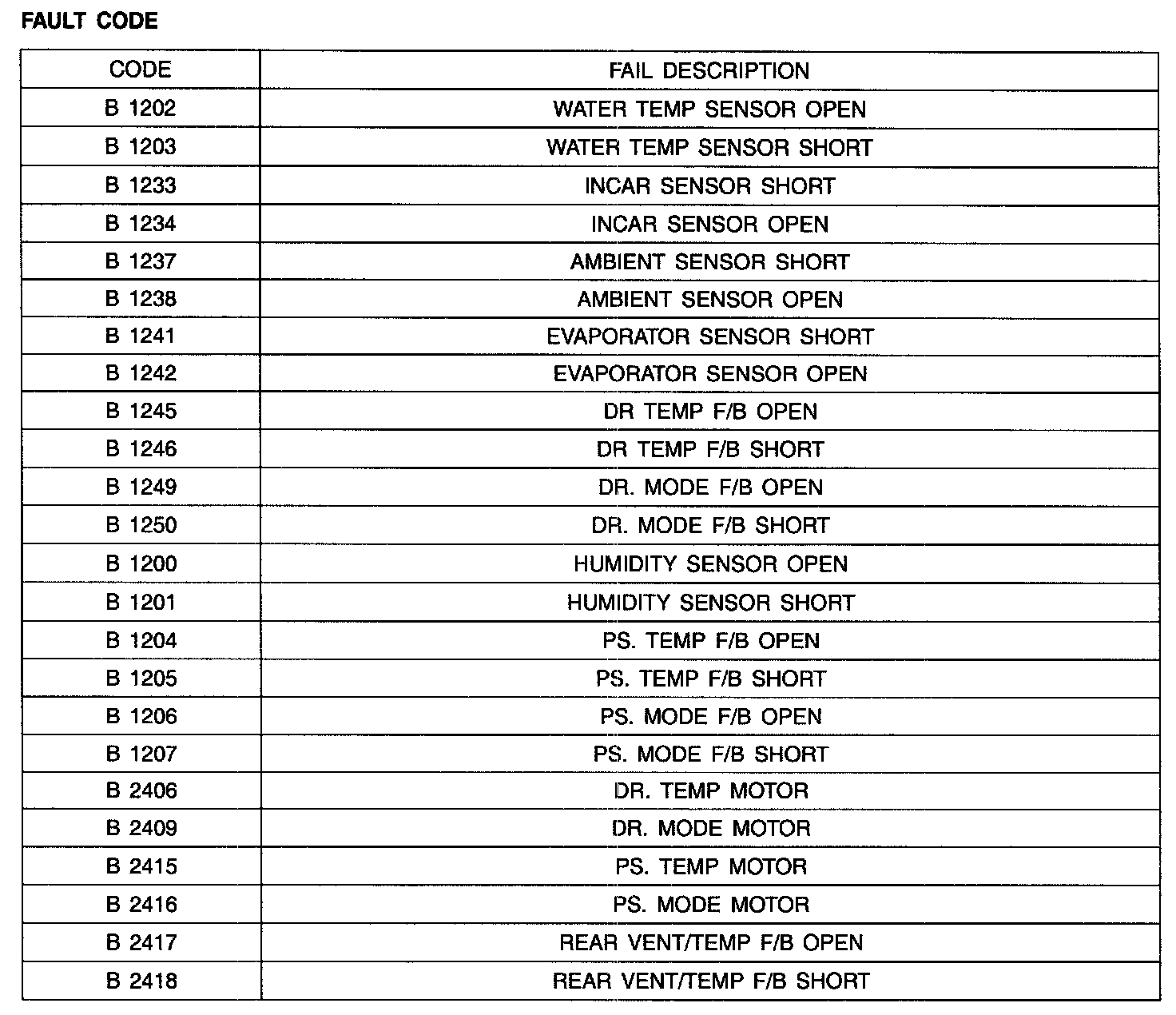

DTC CODES
2.

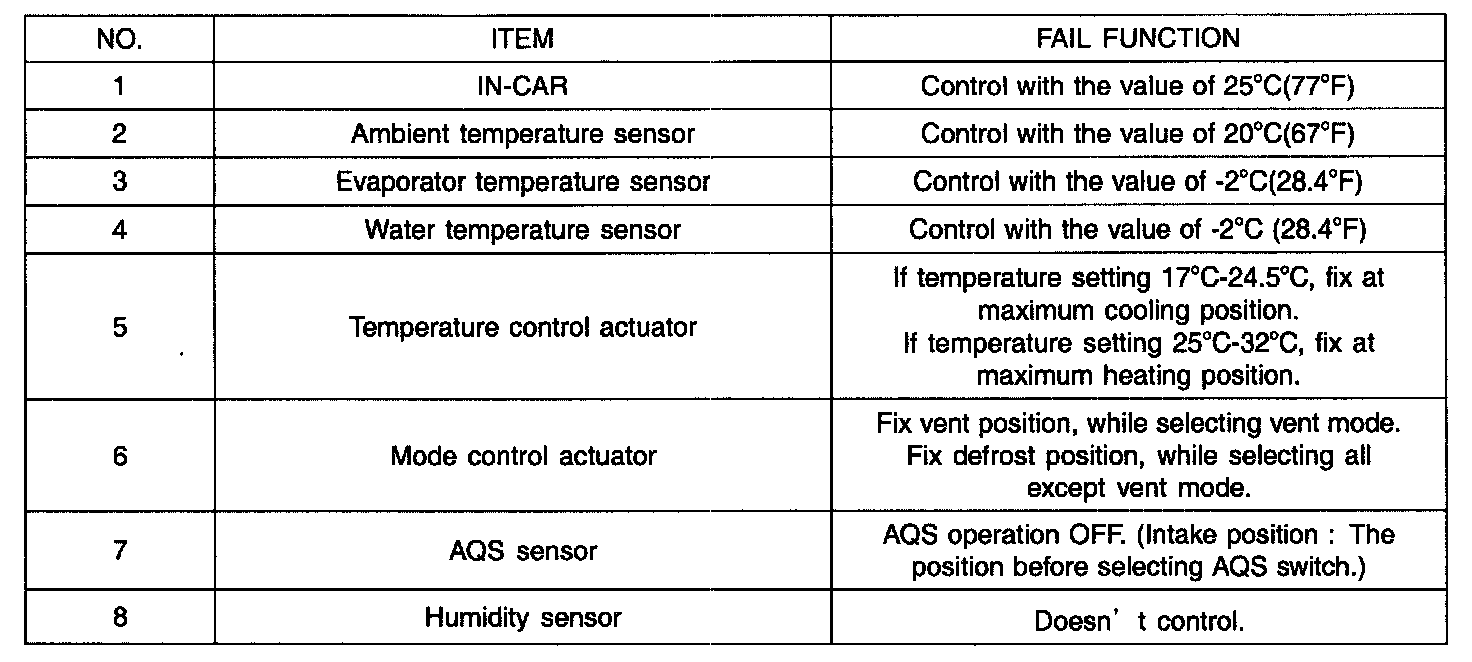

FAIL SAFE
