General Information

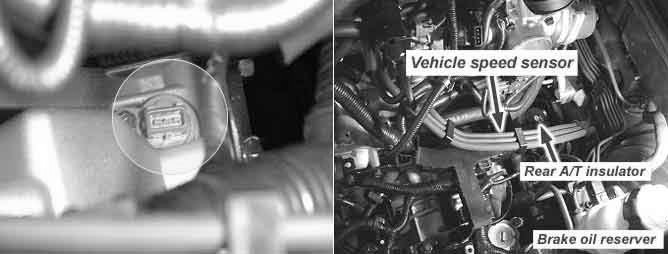

Component Location





General Description




Speed sensor is a sensor which applies a principal of Hall-effect and is located at speedometer driven gear of transaxle. If output shaft of transaxle rotates, the rotation of Rotor which has 4 teeth inside the sensor generate a hall effect and outputs the digital pulse. EPS CM detects vehicle speed based on digital pulse signal and controls amount of current t of solenoid valve which controls driving force of steering wheel.

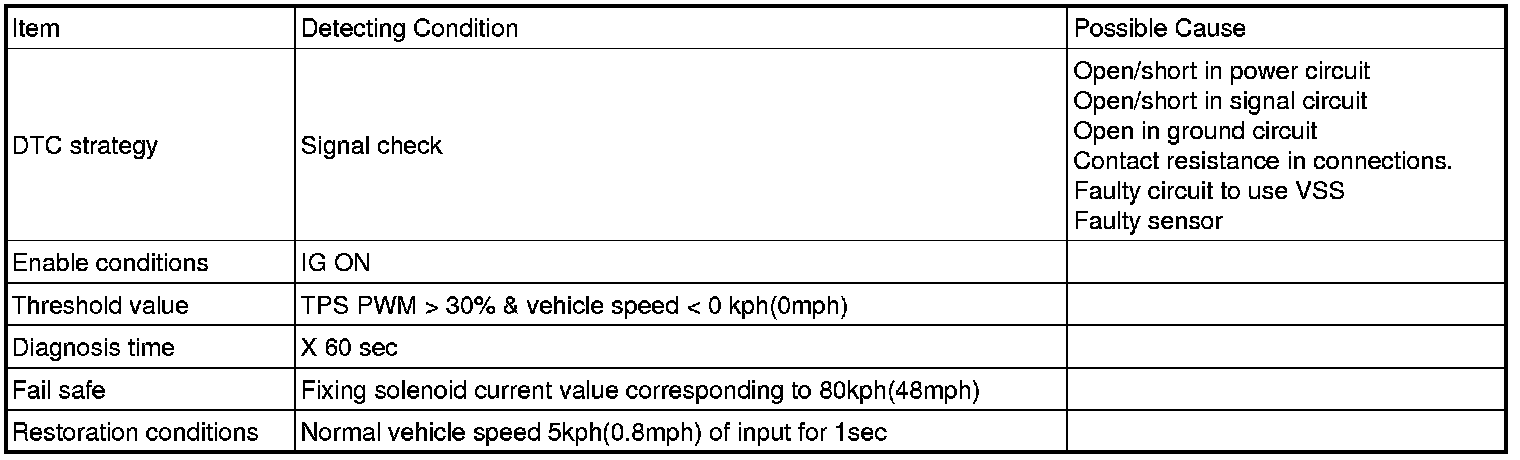

DTC Detecting Condition





Specification

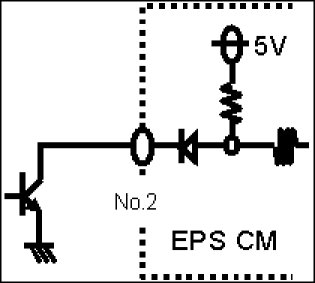

Schematic Diagram





Signal Waveform
