Symptom Chart

SYMPTOM CHART

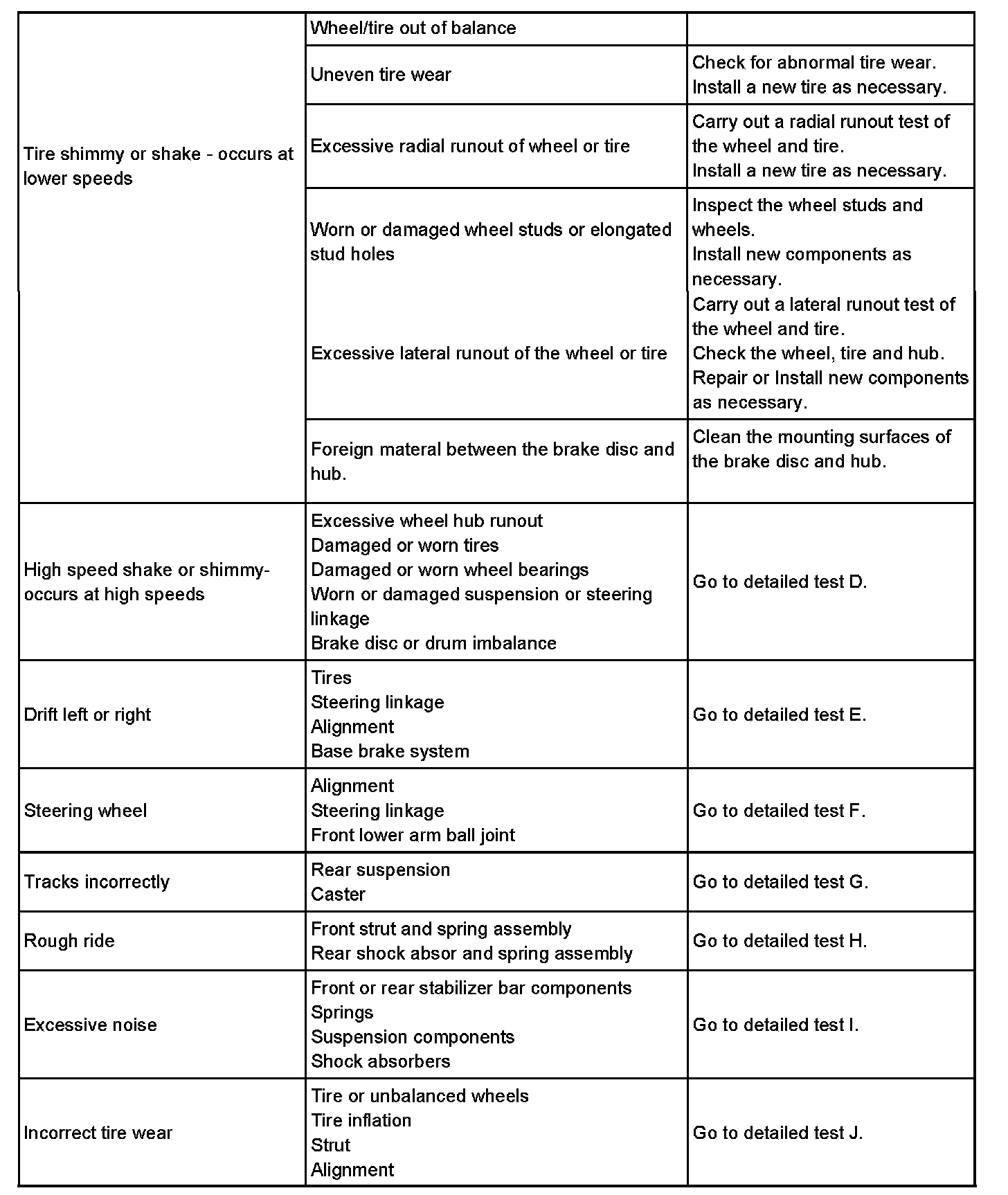

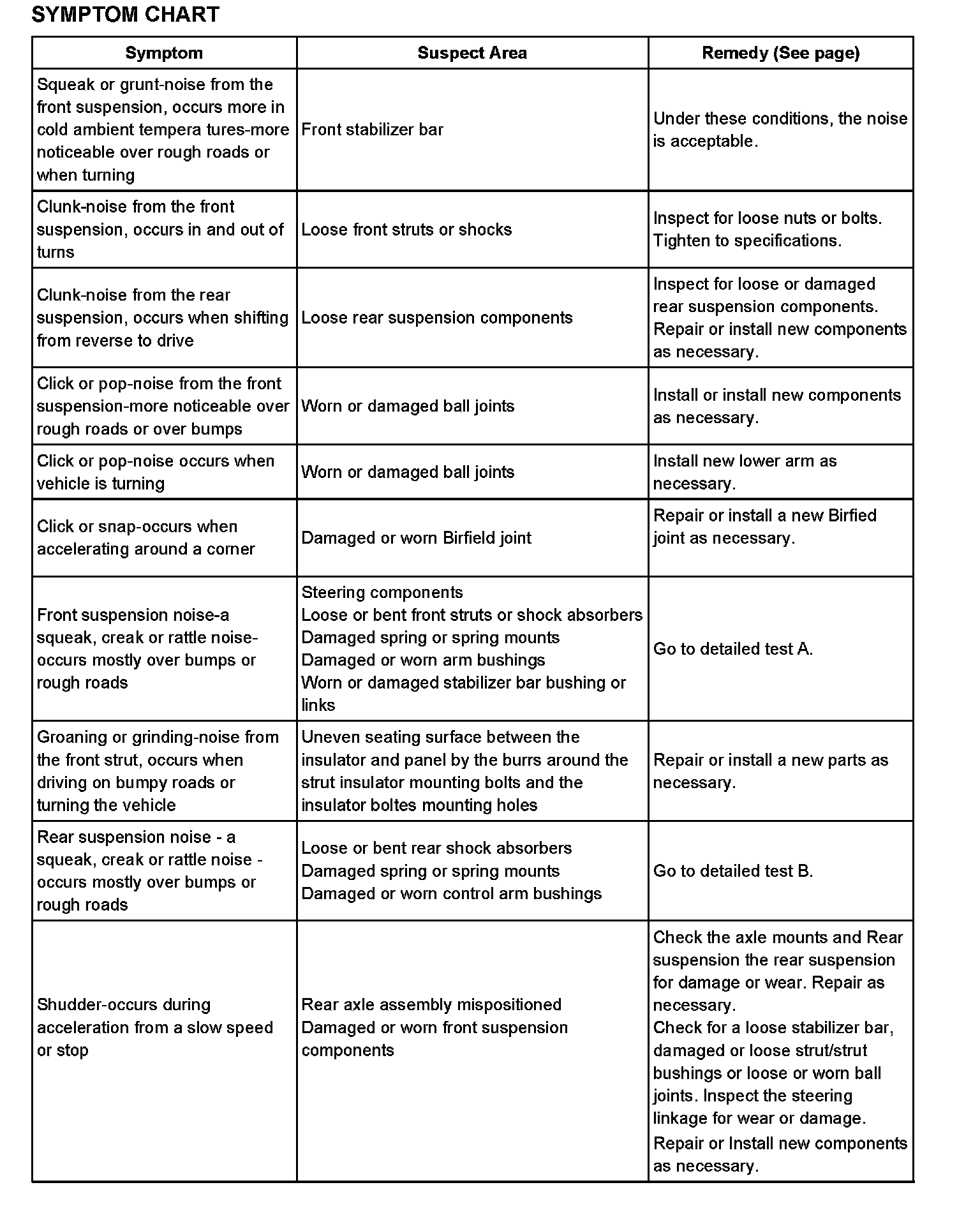

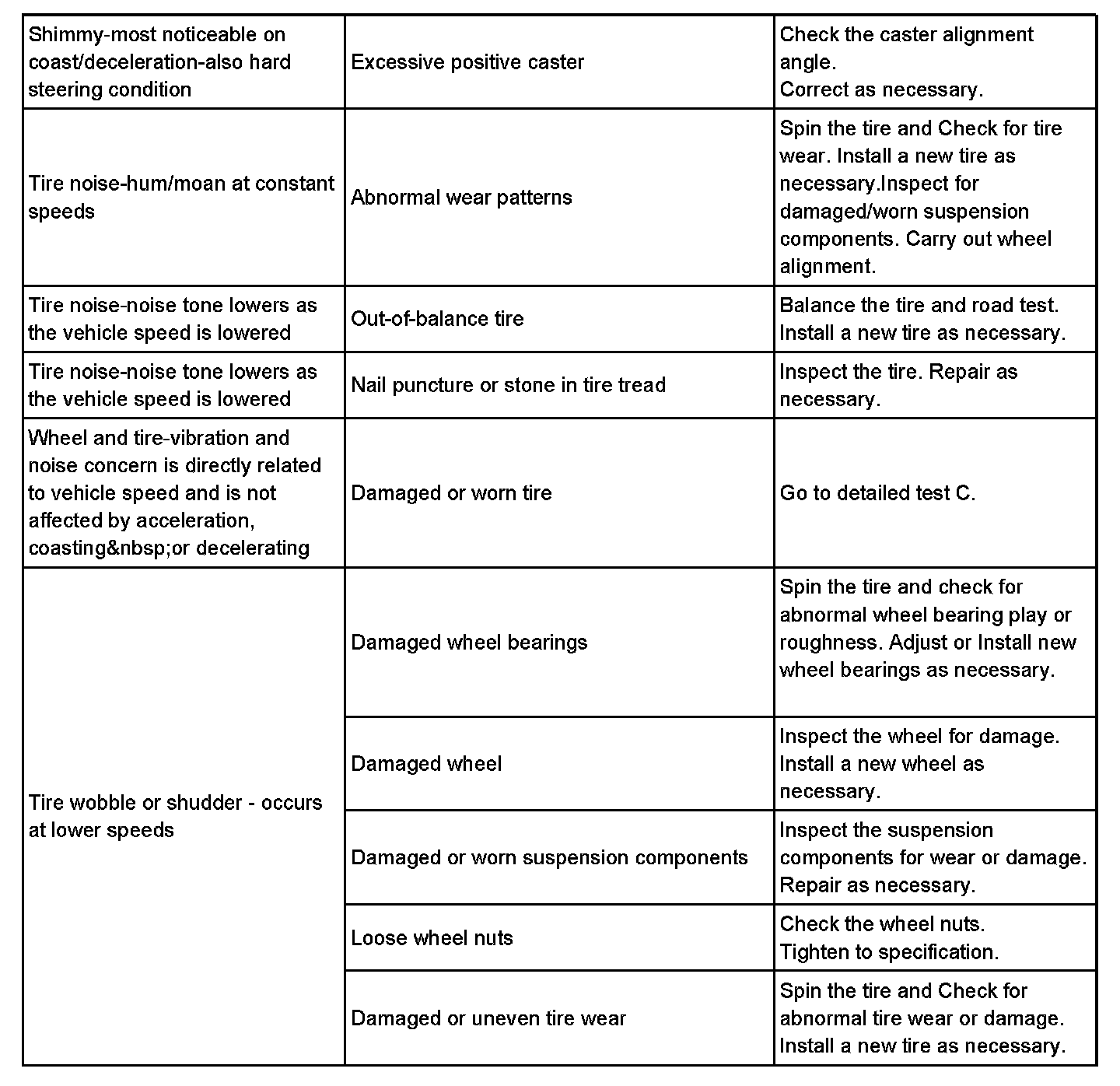

Symptom Chart (Part 1):




Symptom Chart (Part 2):




Symptom Chart (Part 3):




Symptom Chart (Part 4):
