A/C Belt

DRIVE BELT

ADJUSTMENT

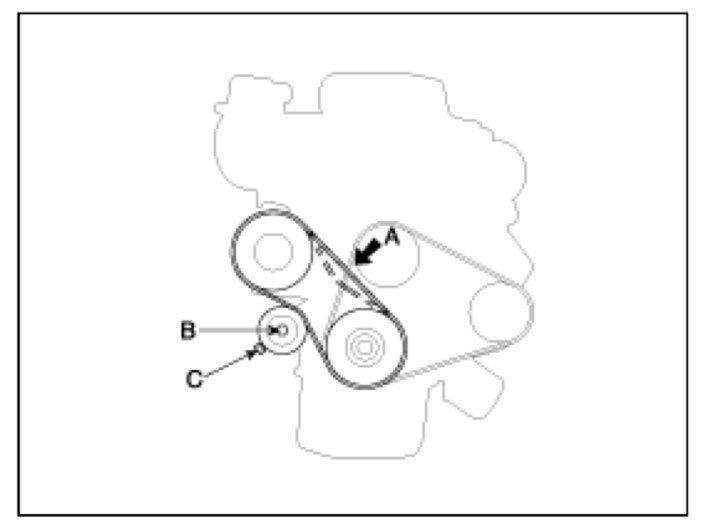

1. Loosen the tension mounting bolt (B).
2. Turn the adjusting bolt (C) to obtain the proper belt tension, then retighten the mounting bolt (B).




3. Recheck the deflection of the A/C compressor belt.

NOTE: Do not adjustment the drive belt of Diesel engine.
