Trunk Lamp: Service and Repair

Trunk Lamps

REMOVAL
1. Disconnect the negative (-) battery terminal.

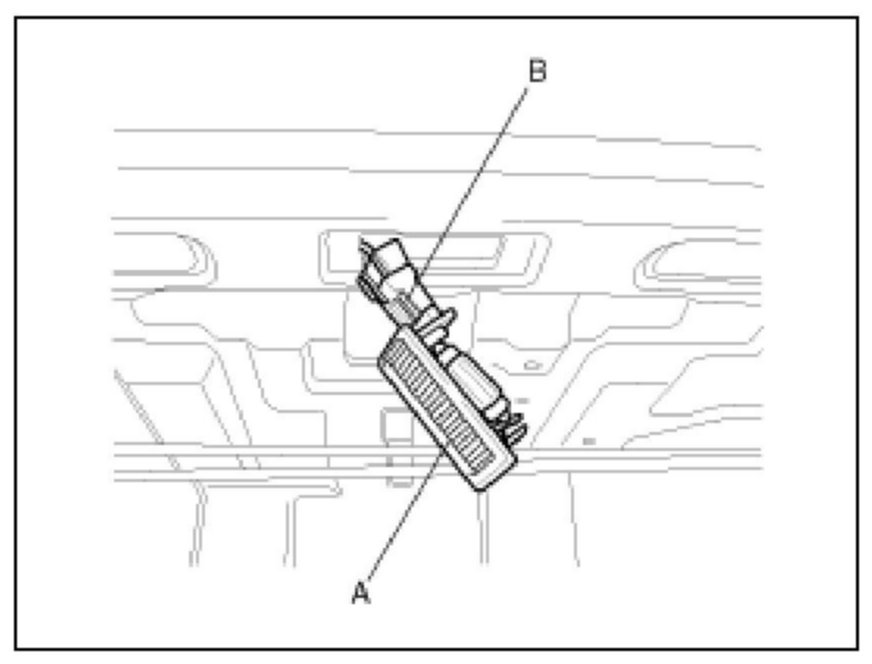

2. Open the trunk lid, then remove the trunk room lamp (A) with a flat-tip screwdriver and disconnect the 2P connector (B).
3. Replace the bulb.
4. Installation is the reverse of removal.
