Auto Light Switch

Auto Light Switch




INSPECTION

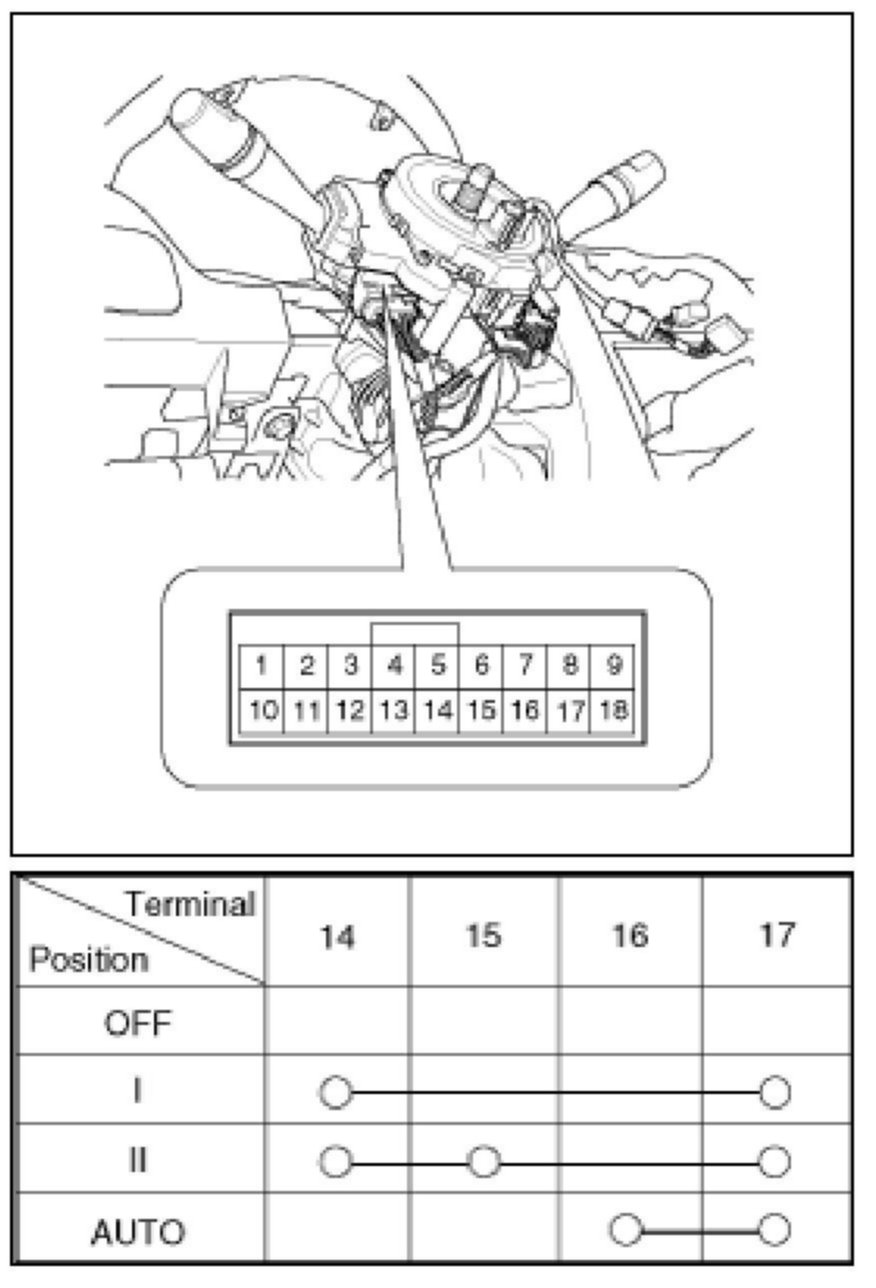

Operate the auto light switch, then check for continuity between terminals of 18P multi-function switch connector.
