Home >> Kia >> 2006 >> Spectra5 L4-2.0L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Powertrain Management >> System Diagram >> Fuel System

Fuel System

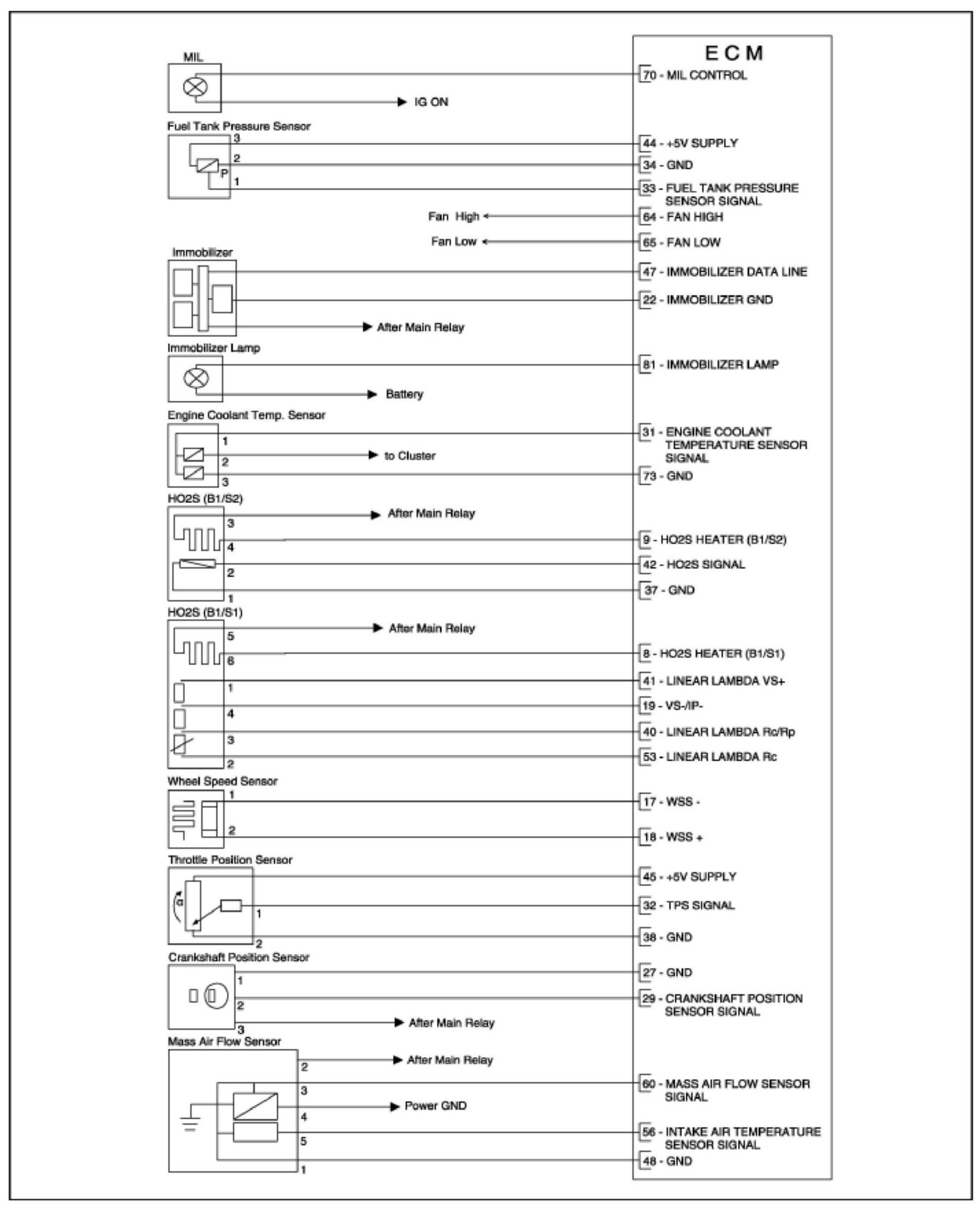

Circuit Diagram Part 1:

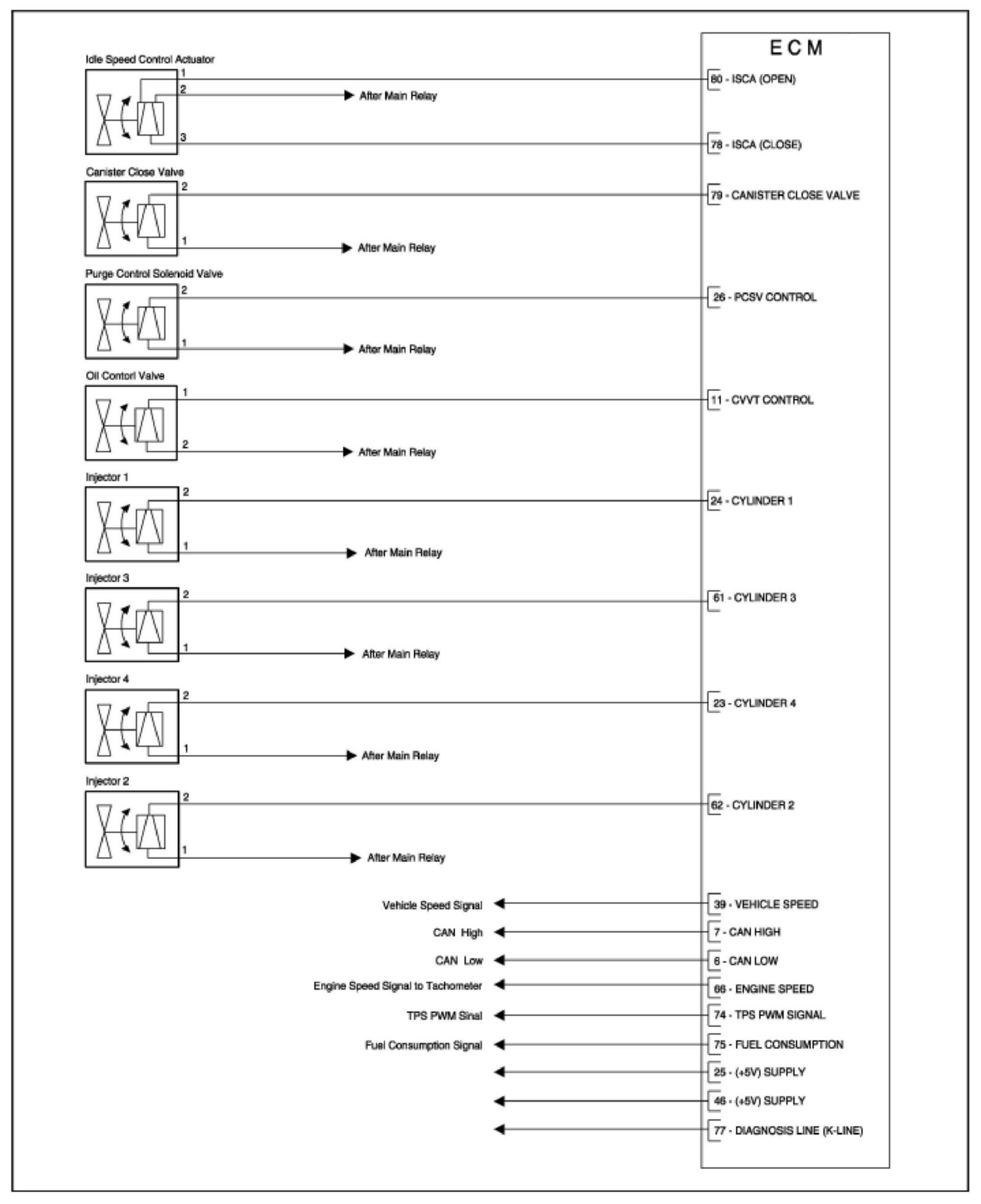

Circuit Diagram Part 2:

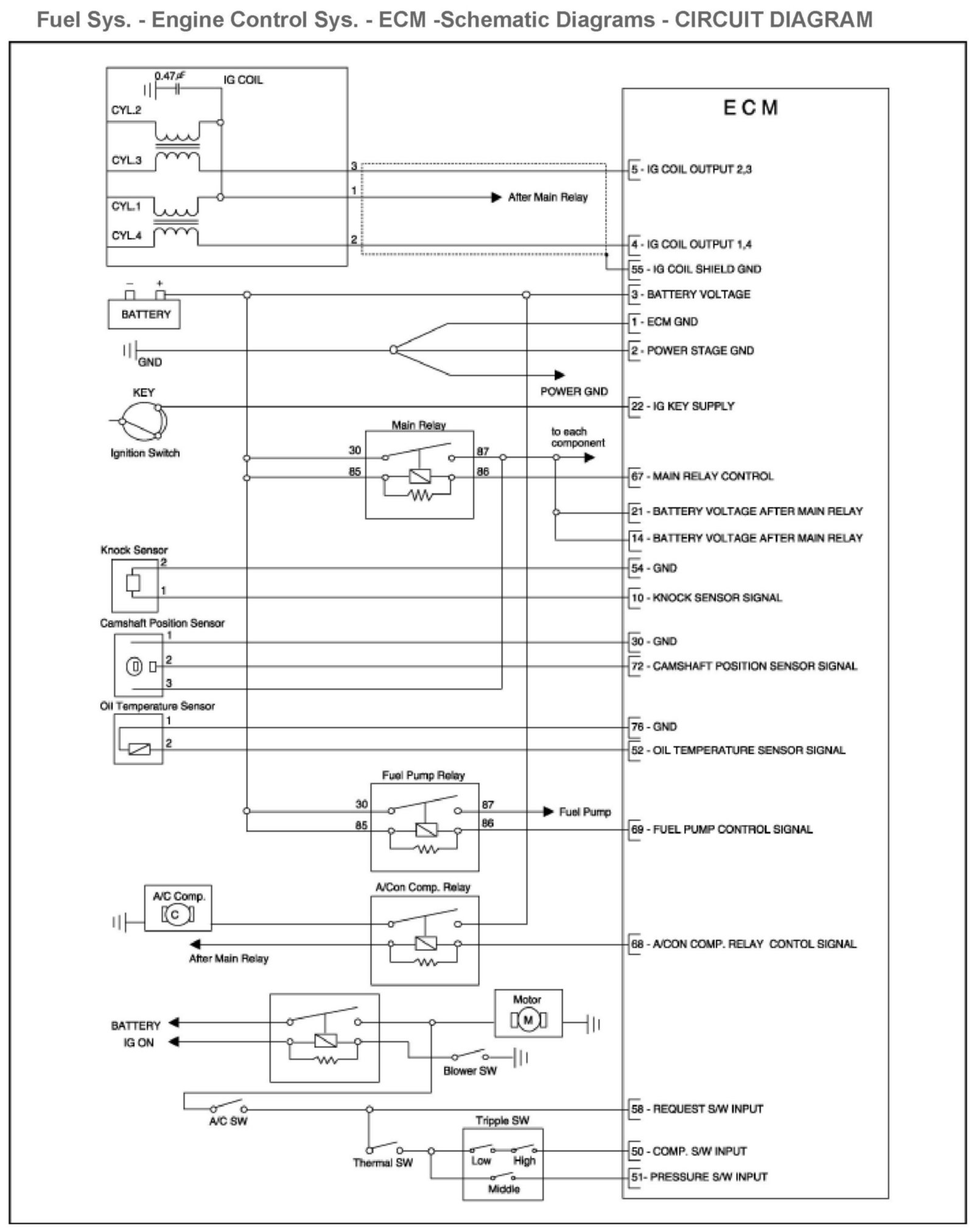

Circuit Diagram Part 3:
