Disassembly

Differential

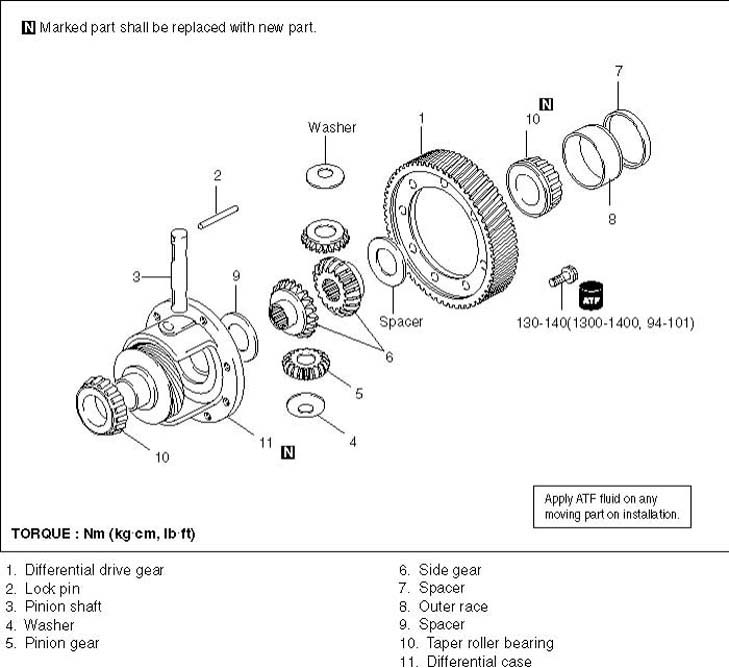

Components:

Differential

DISASSEMBLY

1. Clamp the differential case in a vise.
2. Remove the differential drive retaining bolts and remove the differential drive gear from the case.





3. Remove the taper bearing using the special tool (09433-21000).

CAUTION
Do not reuse the bearing removed from the shaft.





4. Drive out the lock pin from the hole A using a punch.





5. Drive out the pinion shaft.
