Electrical Diagrams

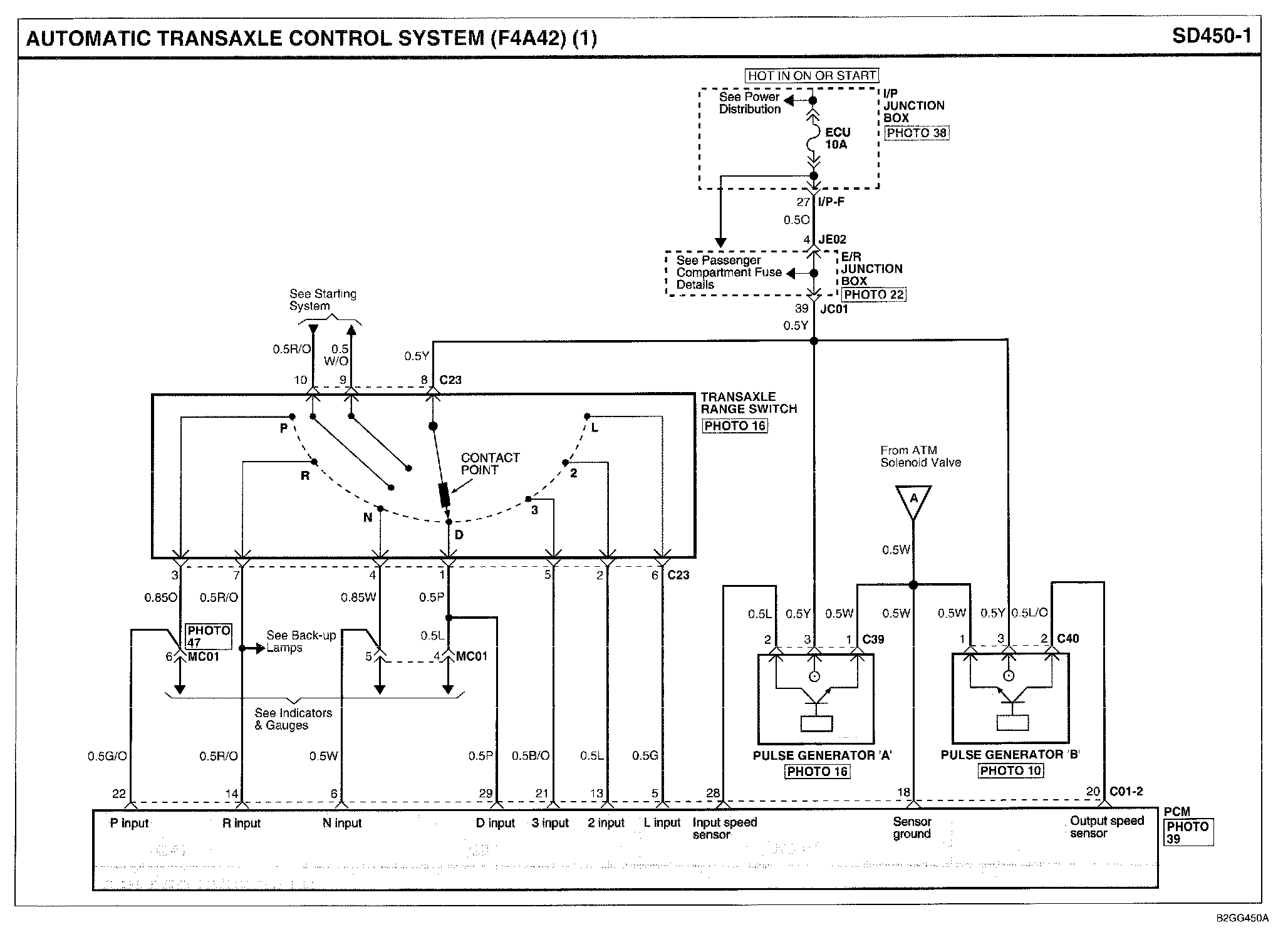

Automatic Transaxle Control System (F4A42) (1):

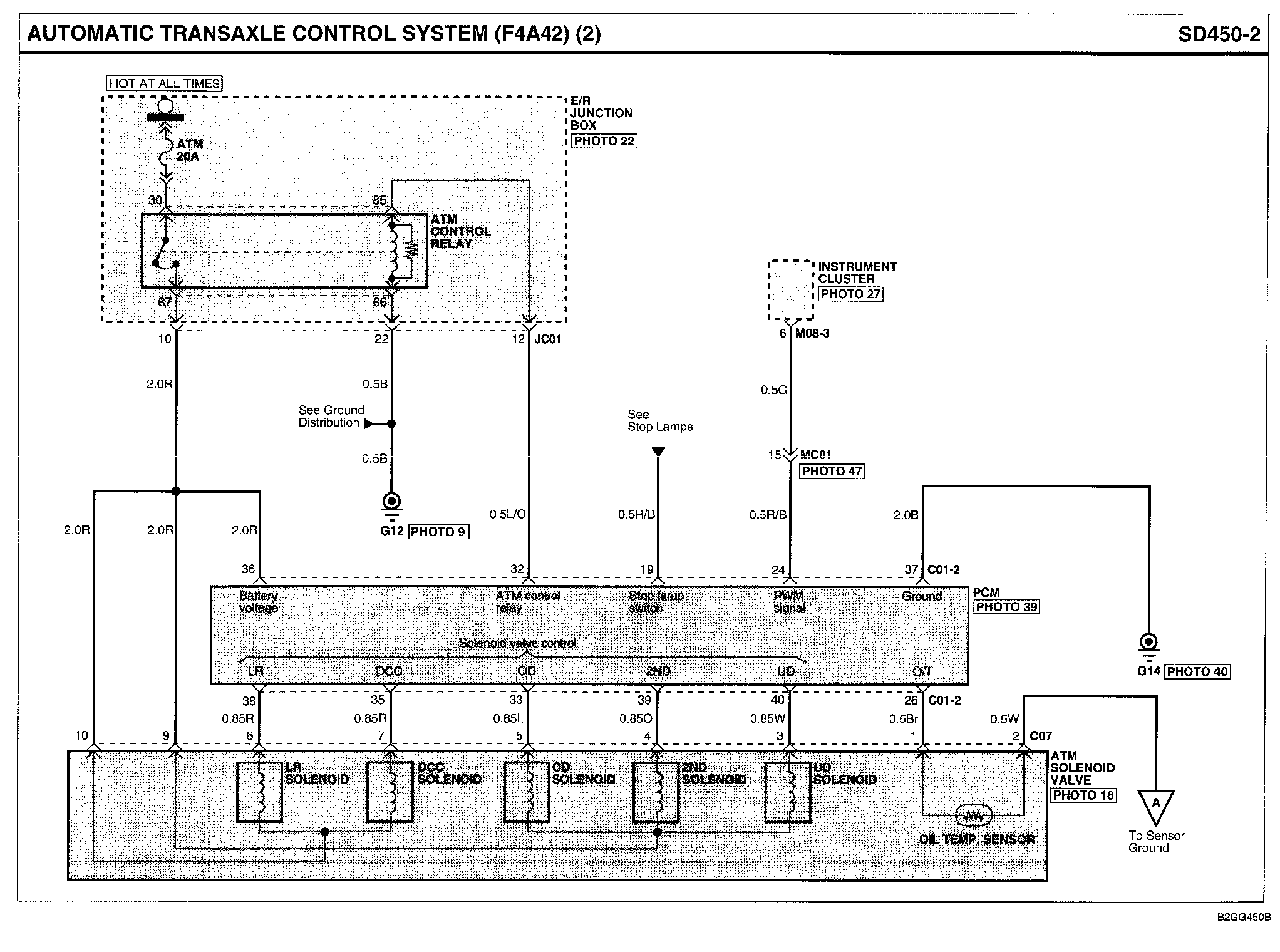

Automatic Transaxle Control System (F4A42) (2):

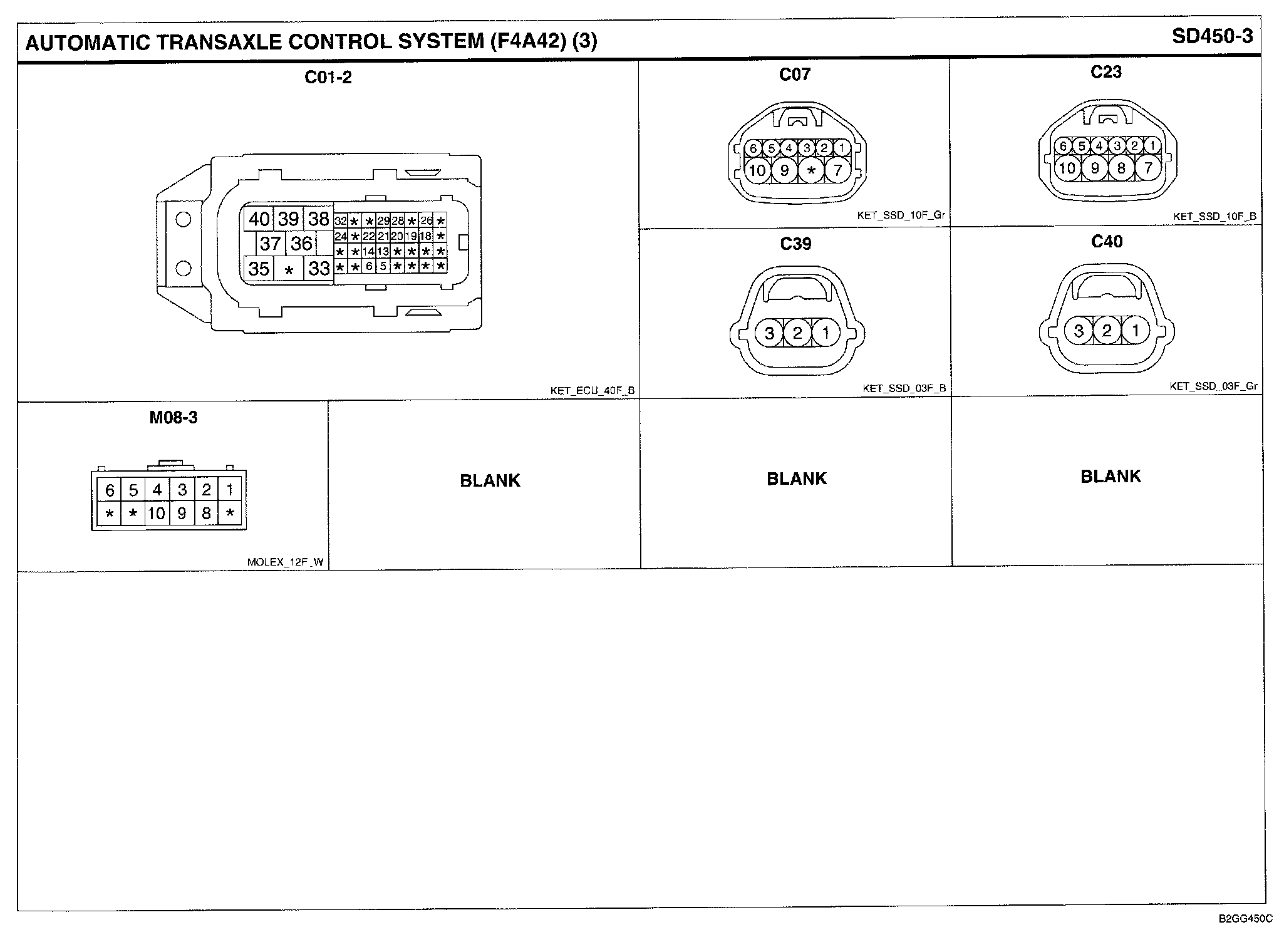

Automatic Transaxle Control System (F4A42) Connector Pin Outs:

Automatic Transaxle Control System (A4CF2) (1):

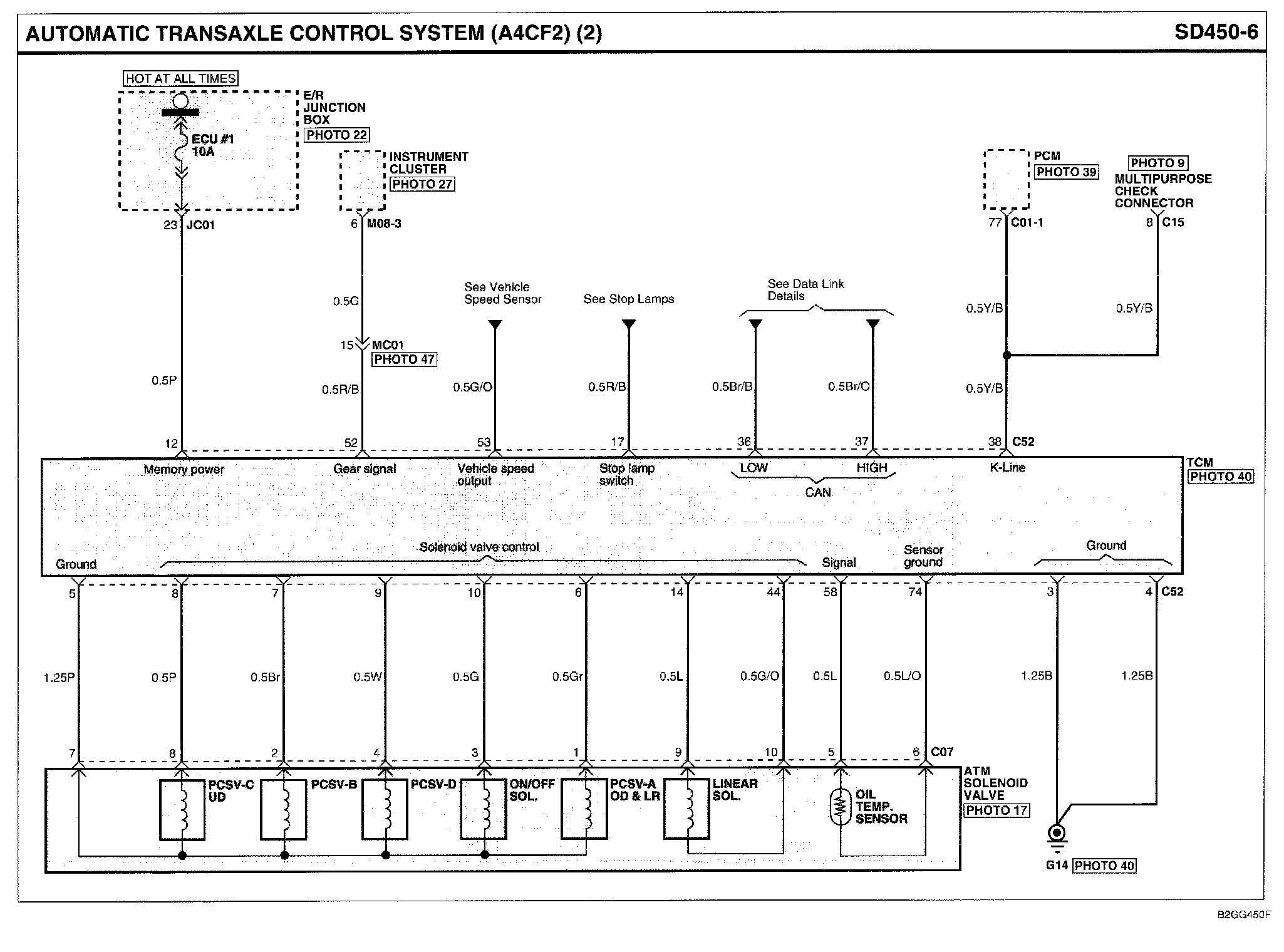

Automatic Transaxle Control System (A4CF2) (2):

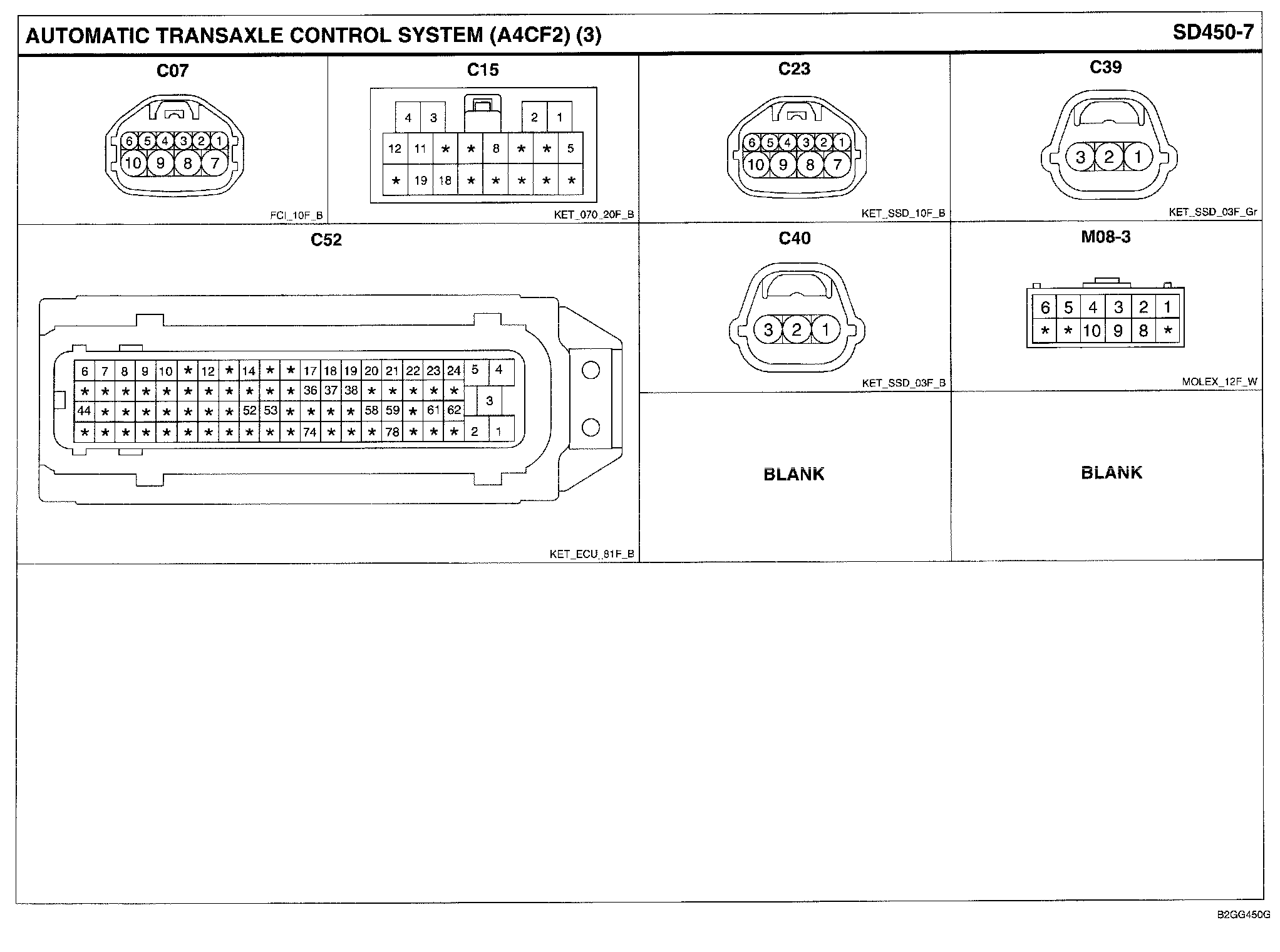

Automatic Transaxle Control System (A4CF2) Connector Pin Outs:

Locations: Location photographs (references to PHOTOS) referred to within these diagrams can be found via the photo number at the vehicle level under Locations by Photo Number. Component Locations

Connector Views: The Connector Pin Out Views for connectors shown on these diagrams can be found on the Connector Pin Out images that follow most sets of system diagrams
