Description

DESCRIPTION

The new small sized automatic transaxle (A4CF2) is for beta 2.0 gasoline engine.

The transaxle (A4CF2) is improved on the durability, fuel consumption and efficiency by the new main features as followed.

The new main features
1. The hydraulic centrifugal oil pressure balance piston.
2. The full line pressure variable control system.
3. The long travel damper clutch.
4. The disc type return spring.
5. The ultra flat torque converter.

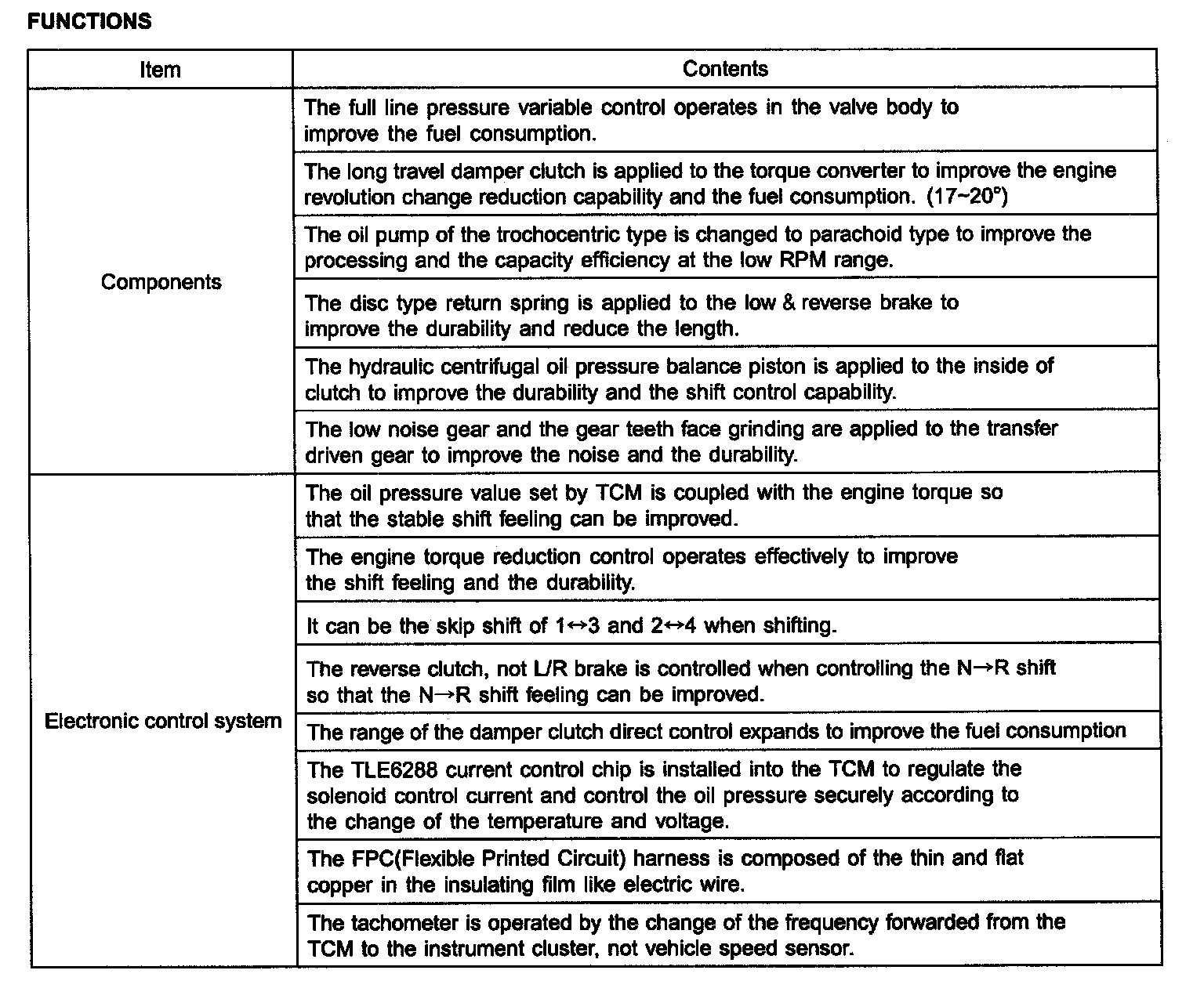

Functions:

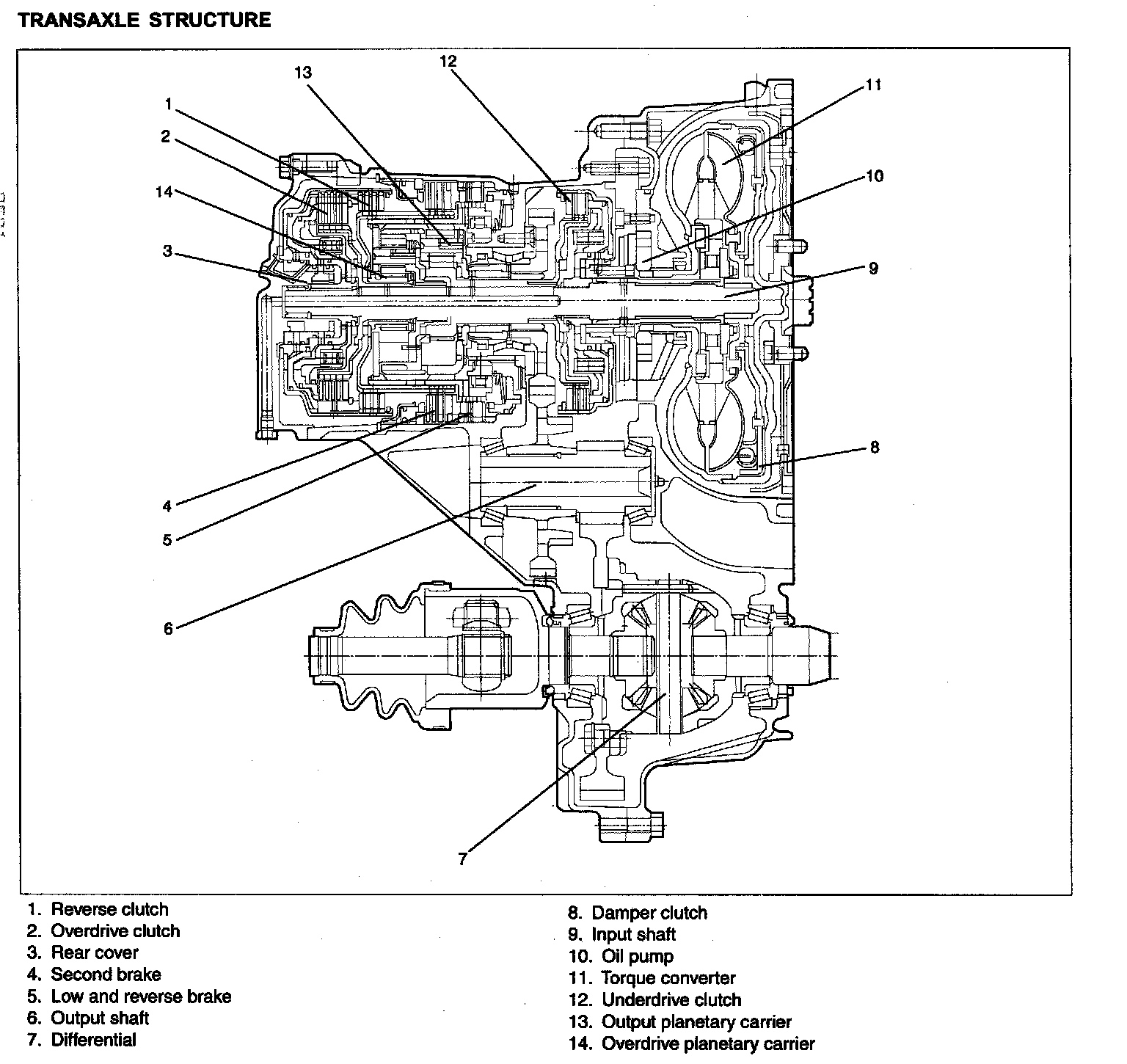

Transaxle Structure:
