Removal

Front Strut Assembly

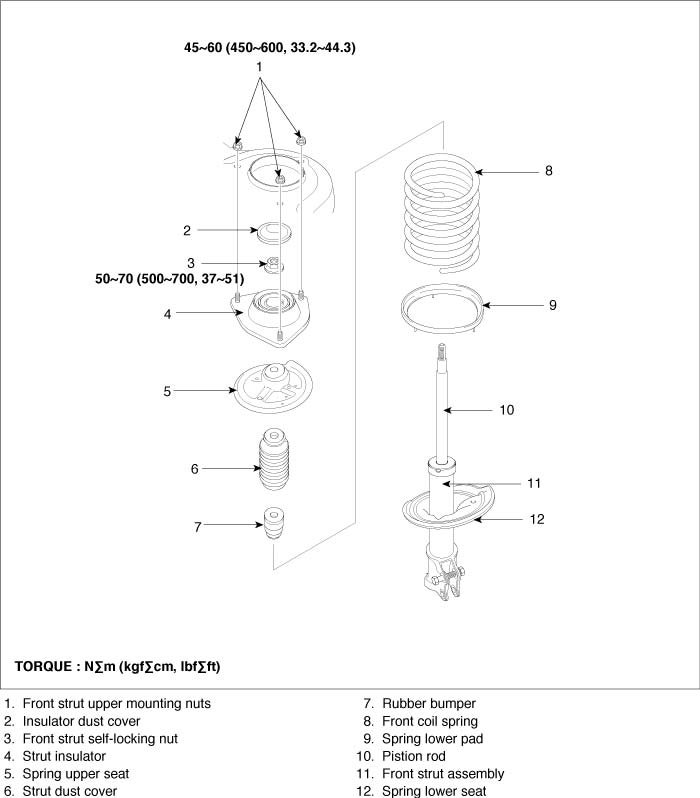

Components:

REMOVAL

1. Remove the front wheel and tire.
2. Detach the brake hose bracket (B) from the front strut assembly (A).

NOTE: Do not apply excessive force to the components.

3. In case of the vehicles equipped with Anti-lock Brake system, remove the wheel speed sensor (A) from the knuckle (B).

4. Remove the strut upper mounting nuts (A).

5. Remove the strut lower mounting bolts (A) and then remove the strut assembly (B).
