Home >> Kia >> 2006 >> Spectra L4-2.0L >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Suspension >> System Specifications >> Tightening Torque

Tightening Torque

TIGHTENING TORQUE

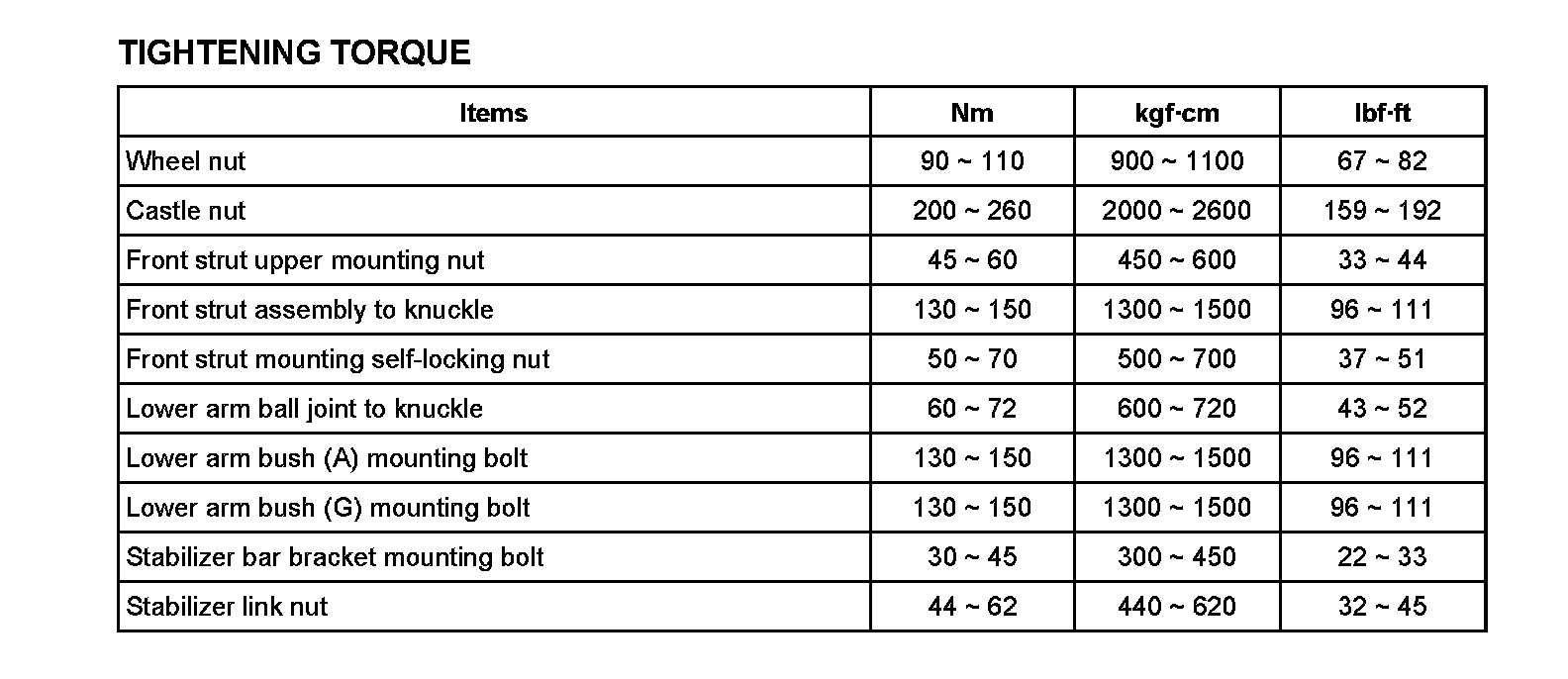

Tightening Torque (Part 1):

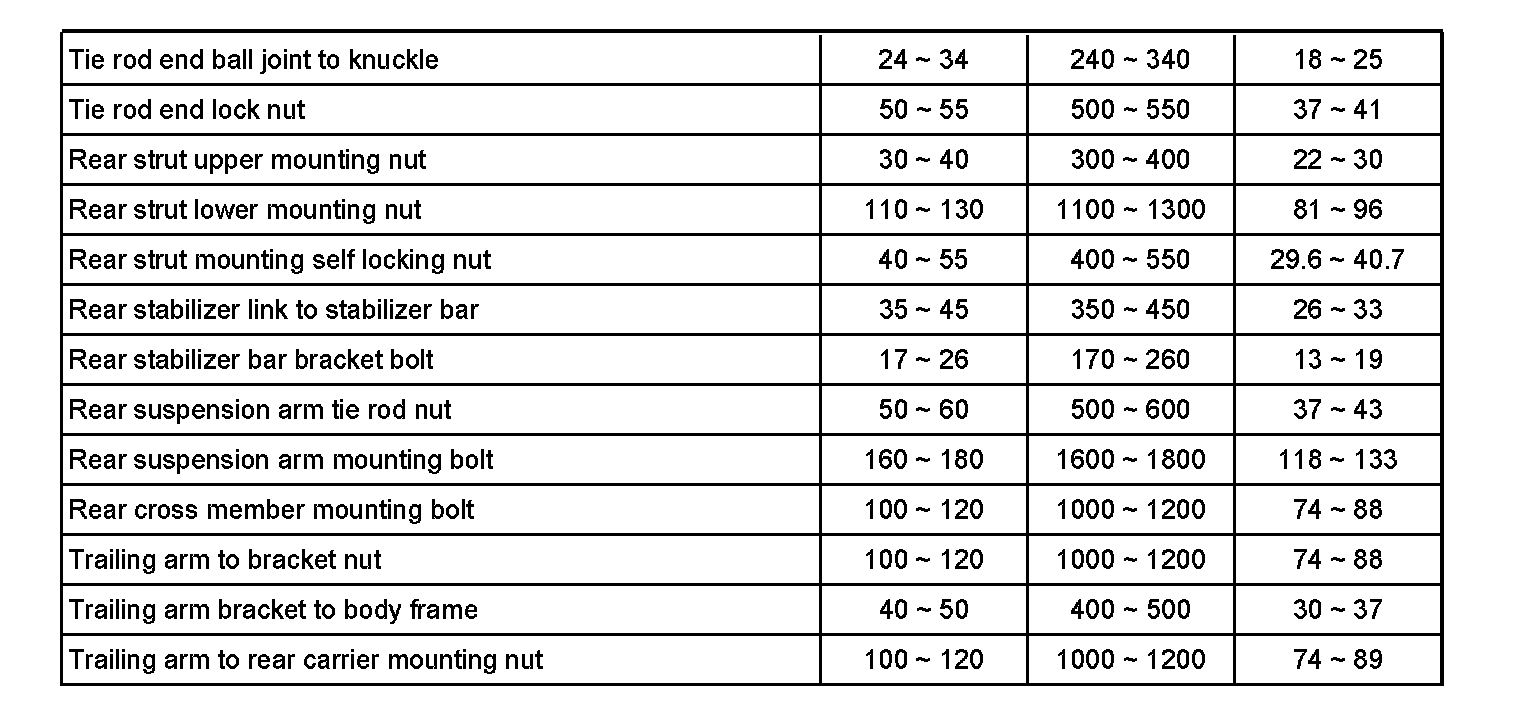

Tightening Torque (Part 2):





CAUTION: Replace the self-locking nuts with new ones after removal.
