Home >> Kia >> 2006 >> Spectra L4-2.0L >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Manual Transmission/Transaxle >> Snap Ring For Adjustment and Spacer

Snap Ring For Adjustment and Spacer

SNAP RING FOR ADJUSTMENT AND SPACER

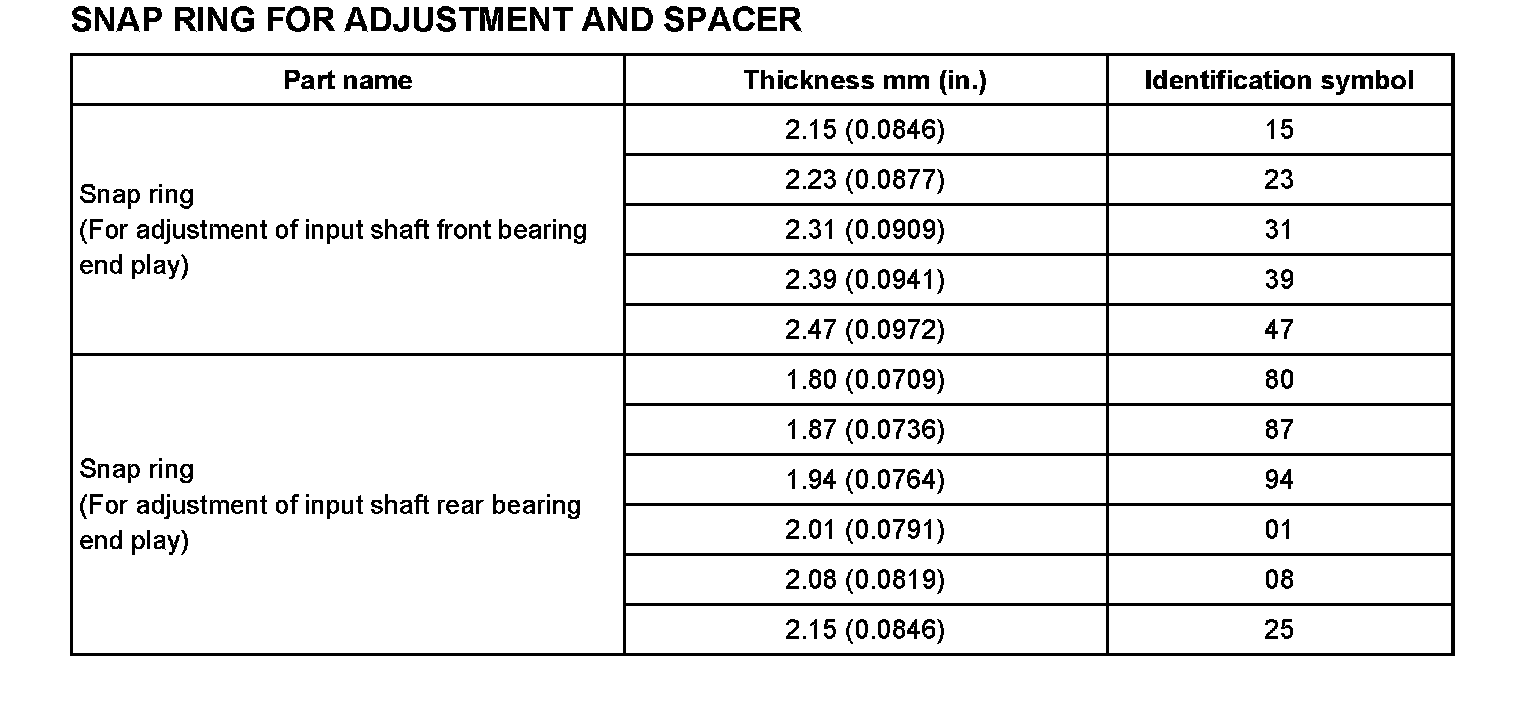

Snap Ring For Adjustment And Spacer (Part 1):

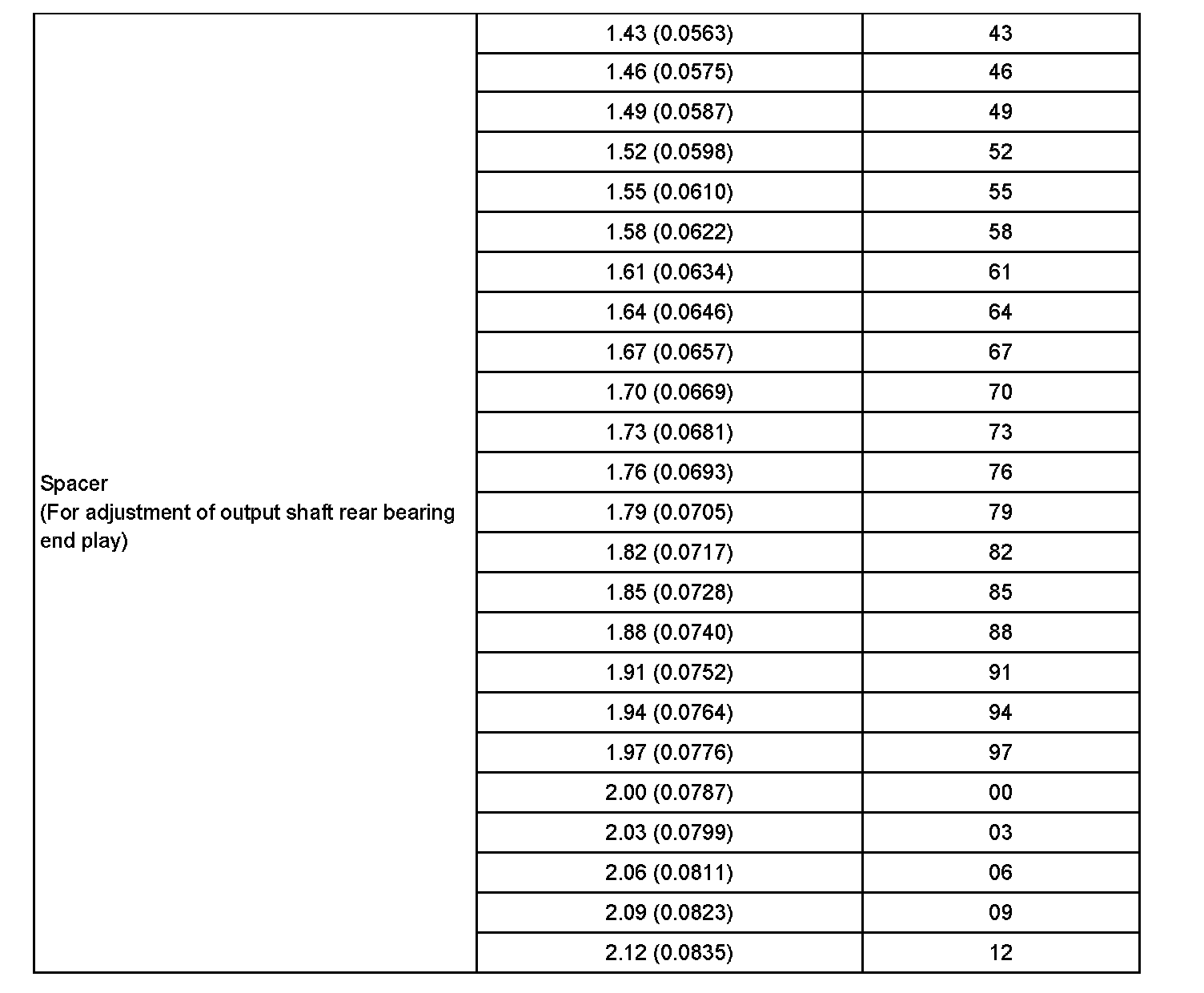

Snap Ring For Adjustment And Spacer (Part 2):

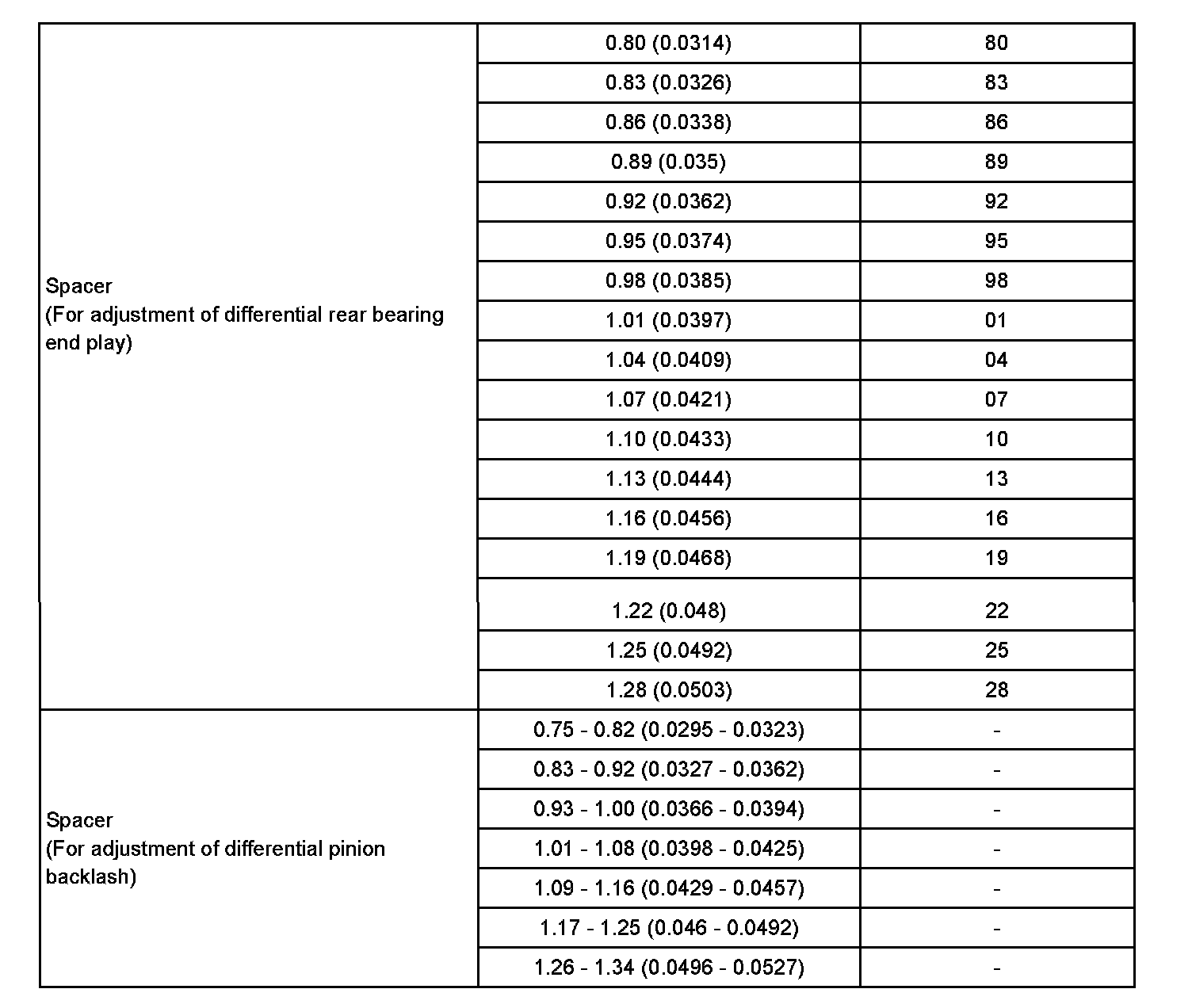

Snap Ring For Adjustment And Spacer (Part 3):
