Front
FRONT DOOR LOCK SWITCH INSPECTION1. Remove the front door trim panel.

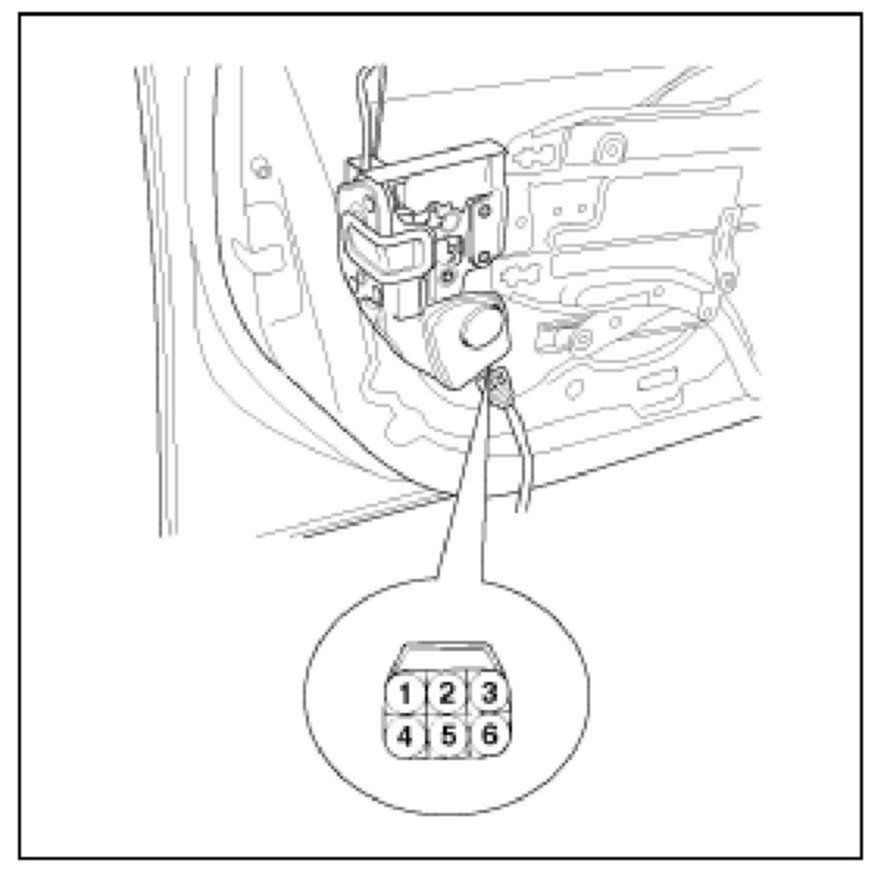

2. Disconnect the 6P connector from the actuator.

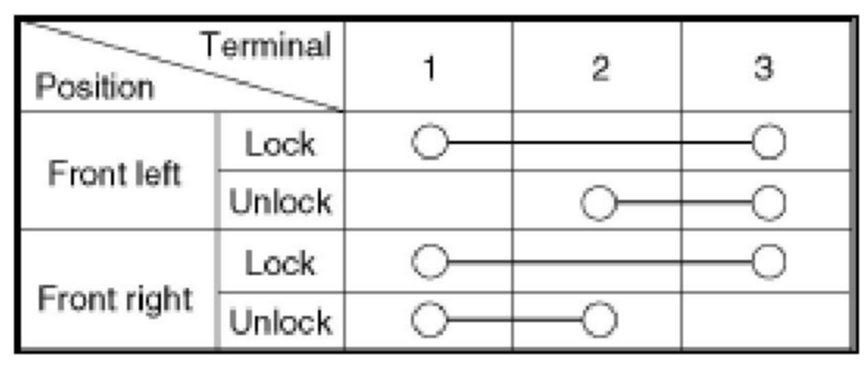

3. Check for continuity between the terminals in each switch position according to the table.
1. Remove the front door trim panel.
2. Disconnect the 6P connector from the actuator.
3. Check for continuity between the terminals in each switch position according to the table.
