Condenser Fan Motor Relay: Service and Repair
REPLACEMENTCONDENSER FAN
1. Disconnect the negative (-) battery terminal.
2. Disconnect the connector of condenser fan.

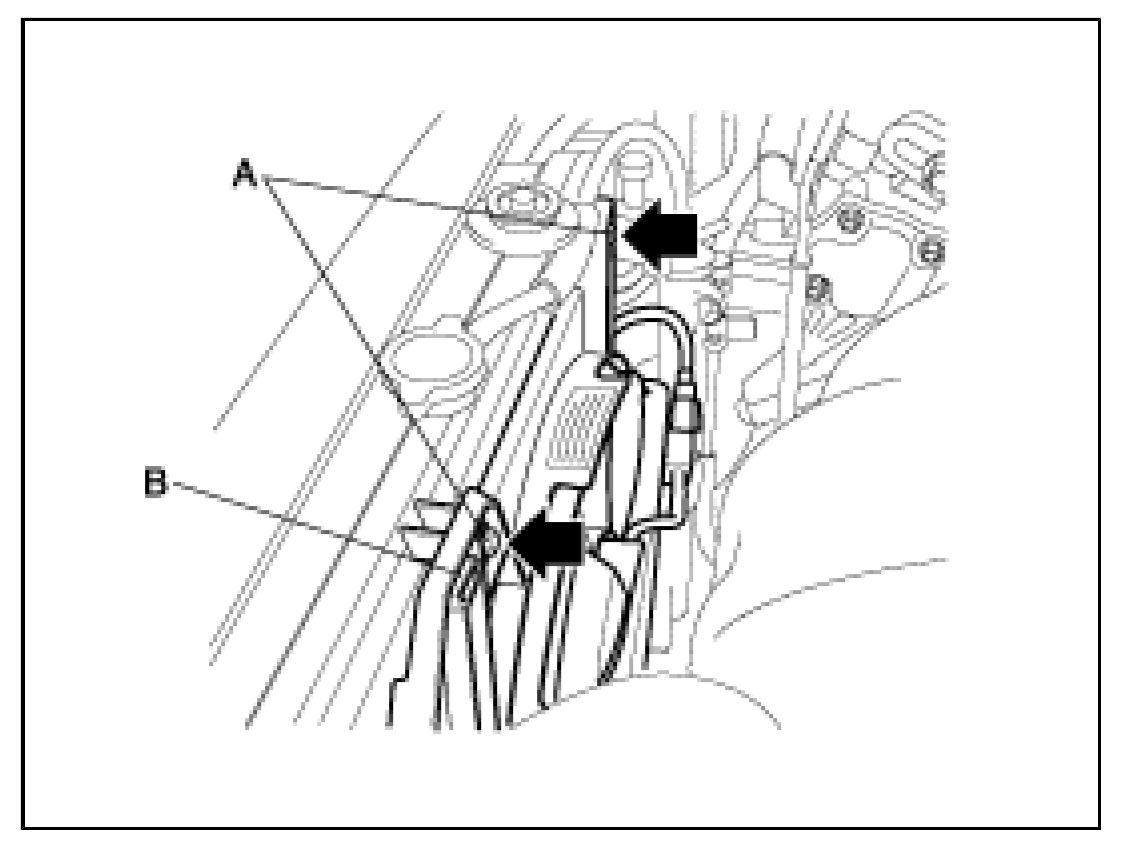

3. Remove the bolts (A), then remove the condenser fan (B) by lifting it up.
4. Install in the reverse order of removal.
