Fuel Injector: Testing and Inspection
InjectorINSPECTION

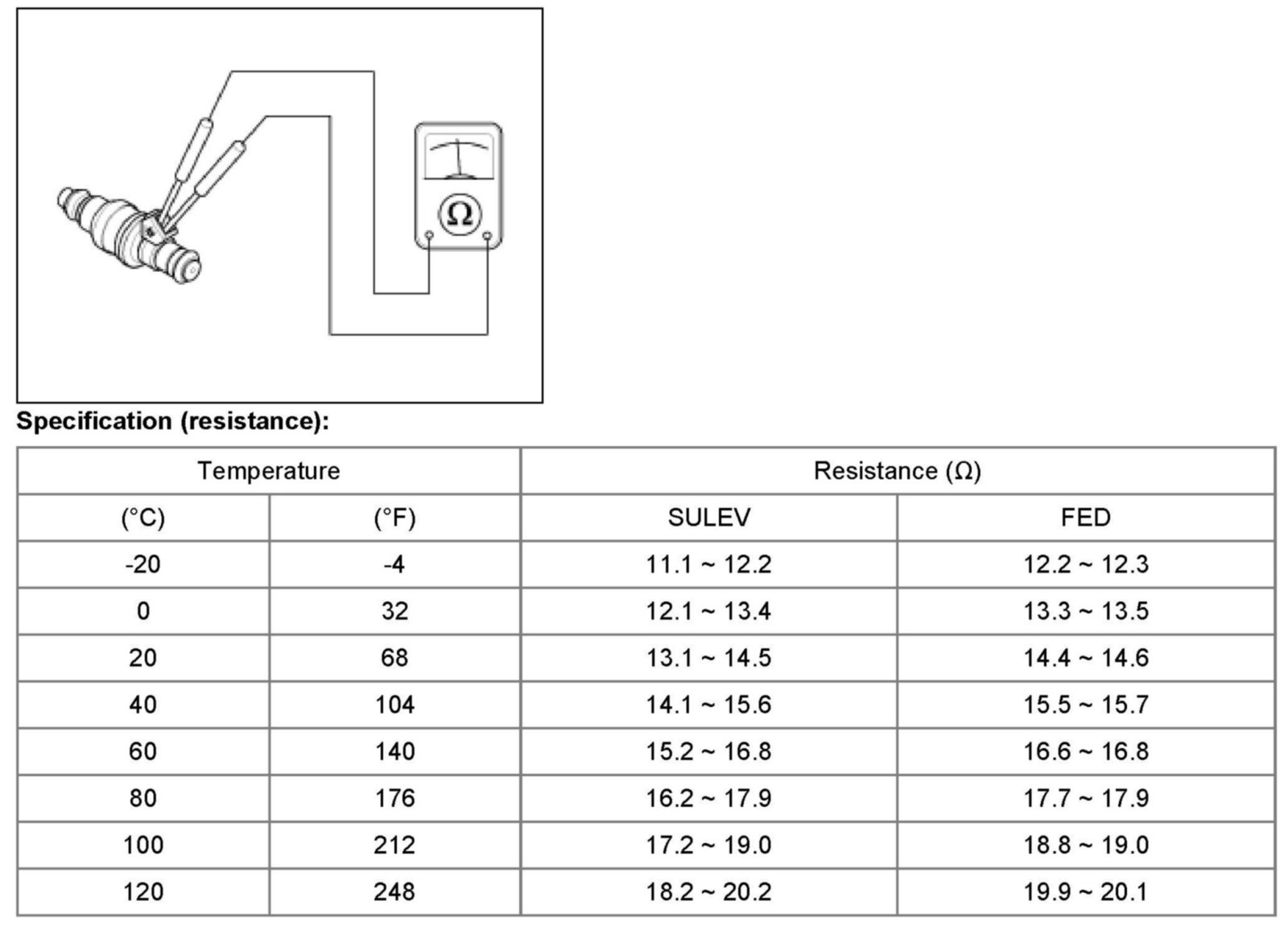

1. Measure resistance between the terminal 1 and 2 of the injector.
2. If the resistance is not within specification, replace the injector.
INSPECTION
1. Measure resistance between the terminal 1 and 2 of the injector.
2. If the resistance is not within specification, replace the injector.
