Auto Lights (Optional Spc. In the U.S.A)

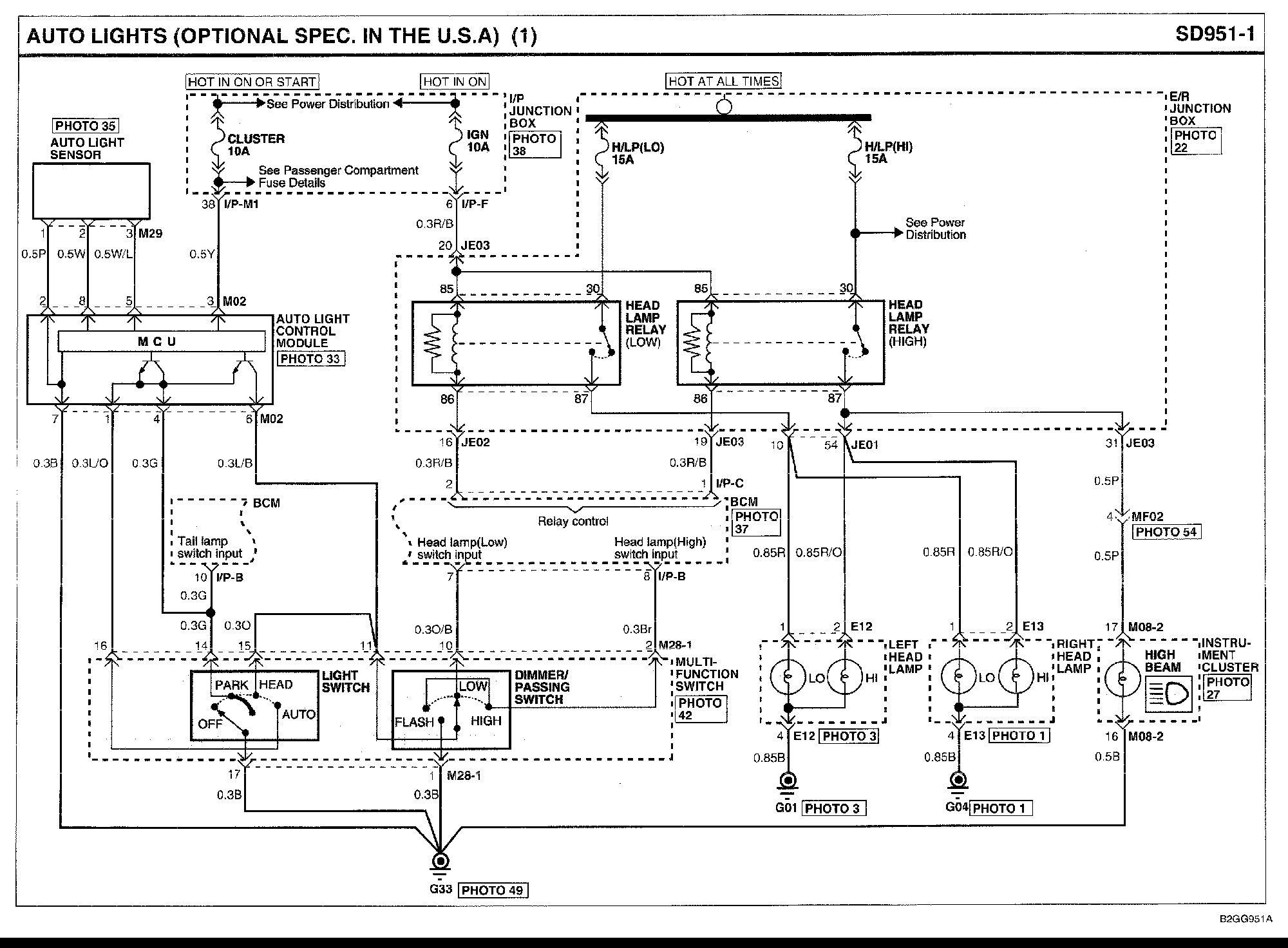

Auto Lights (Optional Spec. In The U.S.A) (1):

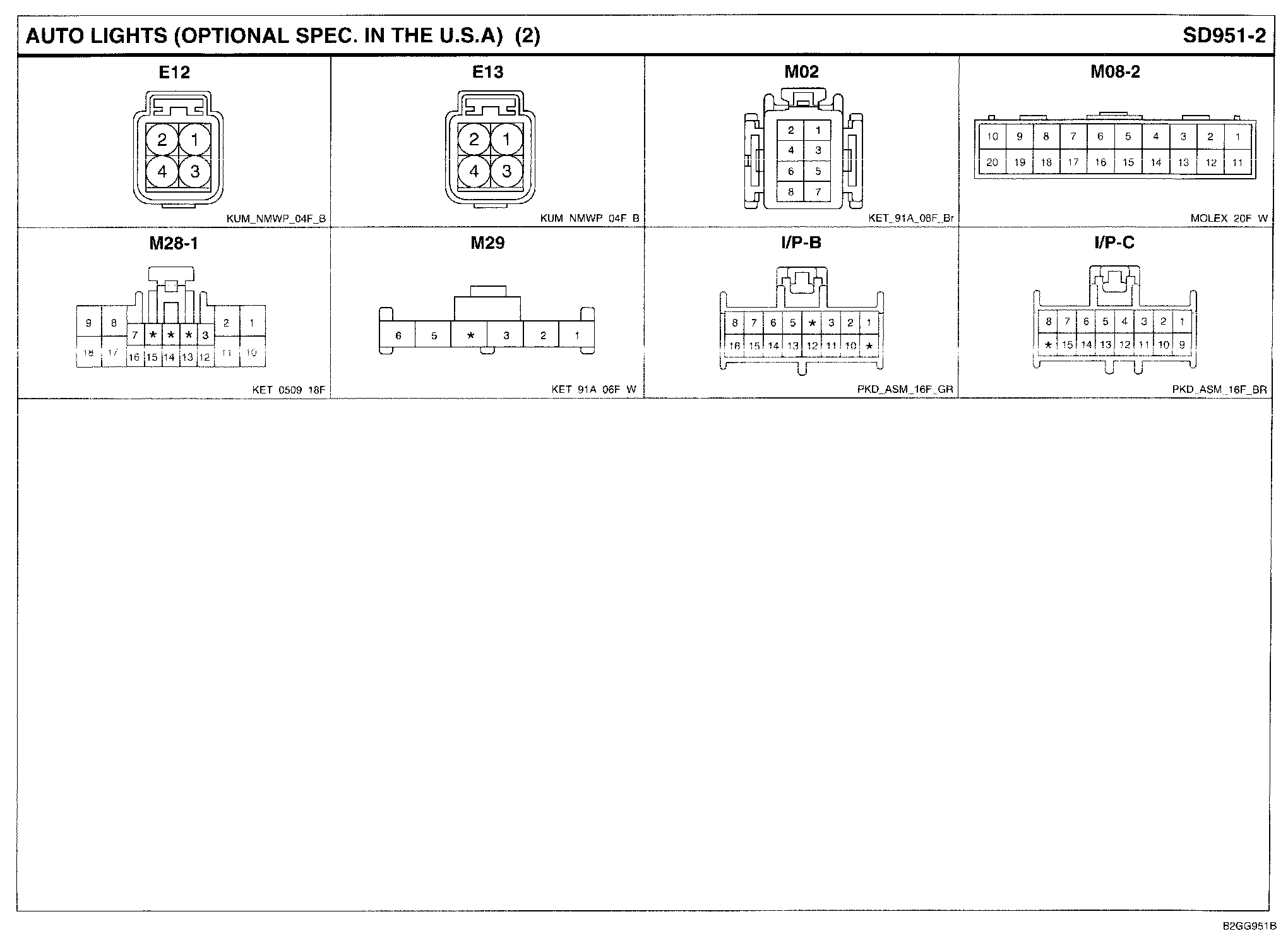

Auto Lights (Optional Spec. In The U.S.A) Connector Pin Outs:

Locations: Location photographs (references to PHOTOS) referred to within these diagrams can be found via the photo number at the vehicle level under Locations by Photo Number. Component Locations

Connector Views: The Connector Pin Out Views for connectors shown on these diagrams can be found on the Connector Pin Out images that follow most sets of system diagrams
