Home >> Kia >> 2006 >> Spectra L4-2.0L >> Repair and Diagnosis >> Lighting and Horns >> Courtesy Lamp >> Testing and Inspection

Courtesy Lamp: Testing and Inspection

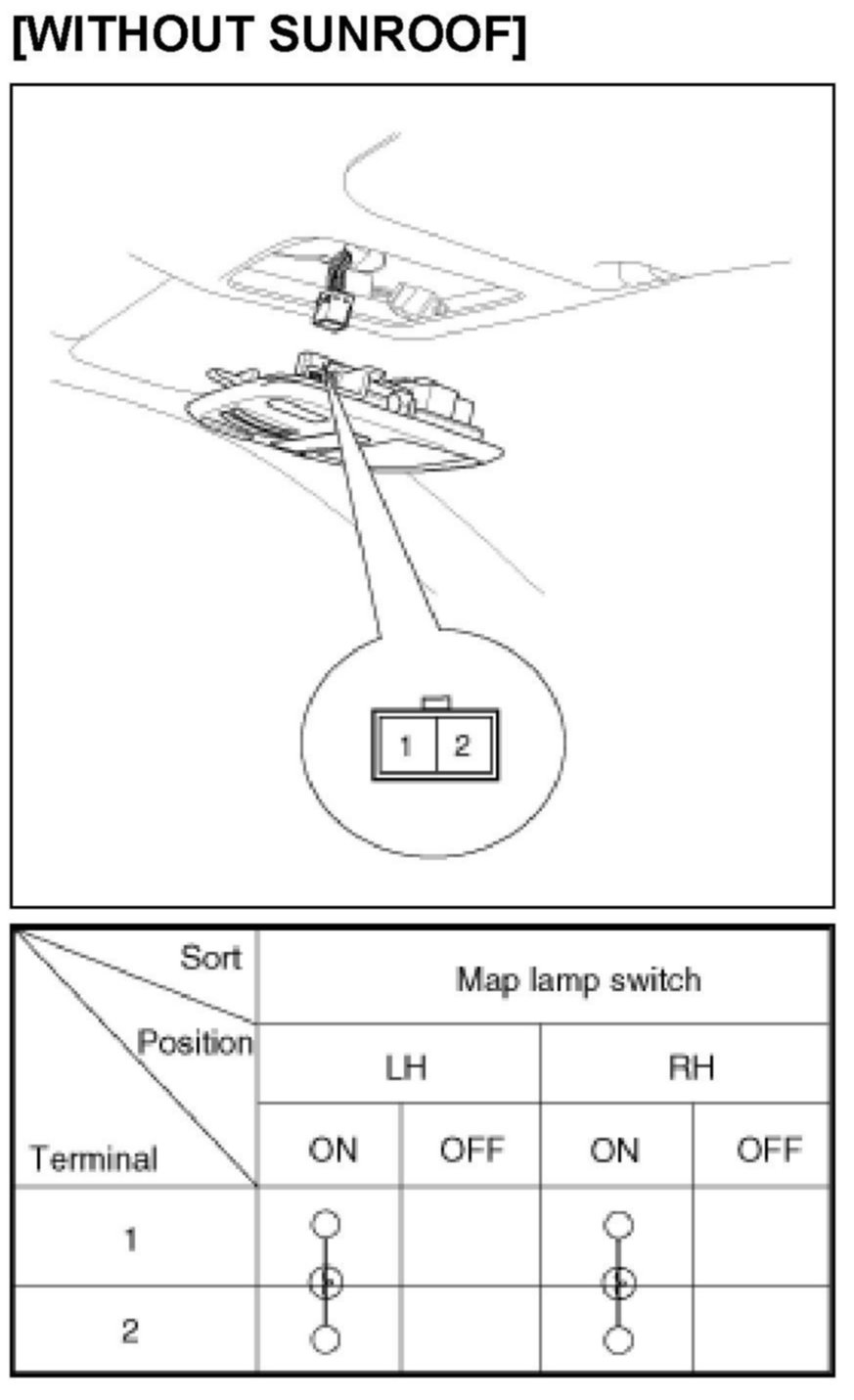

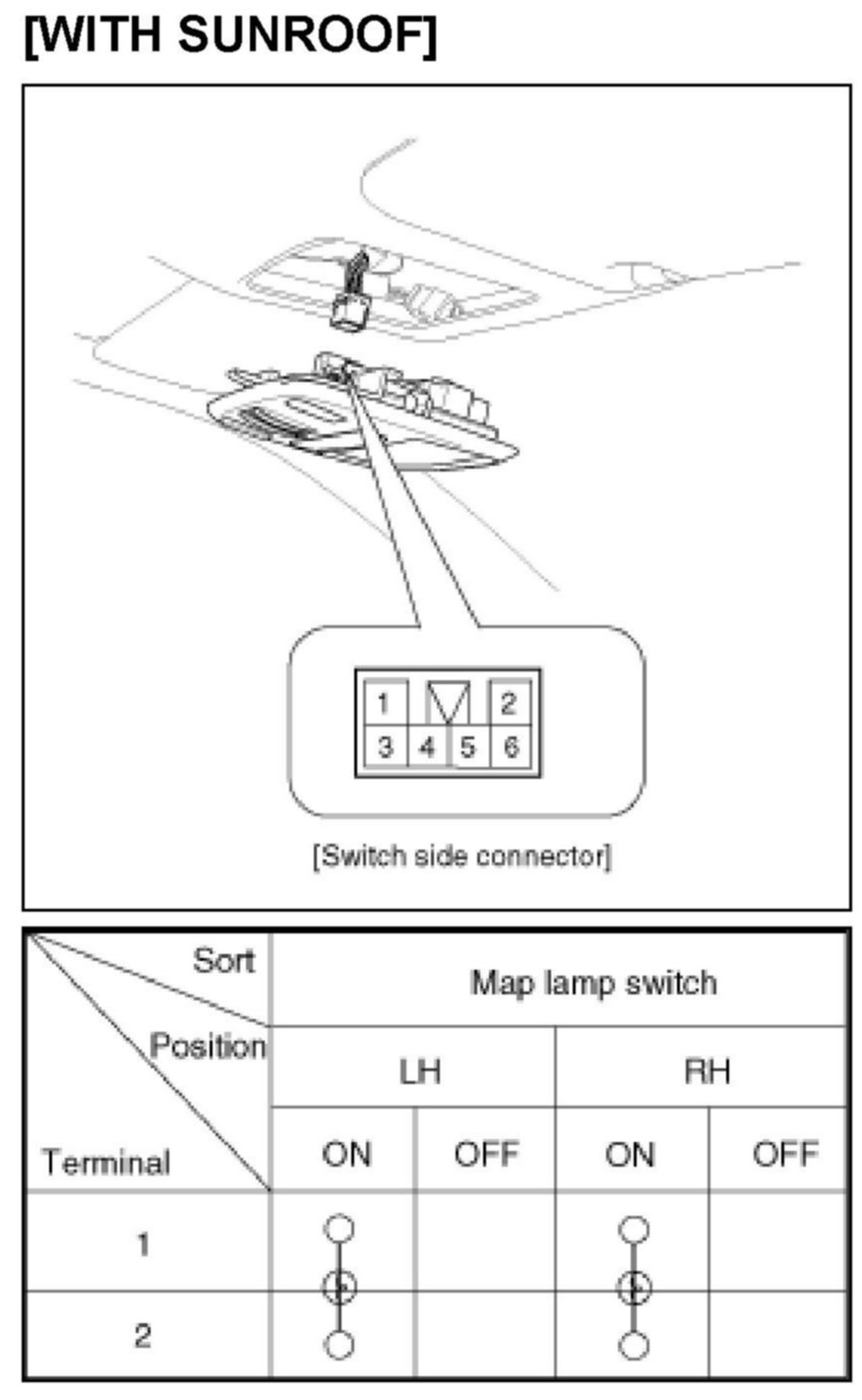

OVERHEAD CONSOLE LAMP

INSPECTION
Remove the overhead console lamp assembly then check for continuity between terminals.
