Removal and Installation
Engine & Transaxle AssemblyComponents:
REMOVAL
CAUTION:
1) Use fender covers to avoid damaging painted surfaces.
2) To avoid damage, unplug the wiring connectors carefully while holding the connector portion.
NOTE:
1) Mark all wiring and hoses to avoid mis-connection.
1. Disconnect the battery terminals (A) and remove the heat shield (B).
2. Remove the battery and battery tray.
3. Remove the engine cover.
4. Drain the engine coolant.
Remove the radiator cap to speed draining.
5. Remove the intake air hose and air cleaner assembly.
1) Disconnect the AFS (Air Flow Sensor) connector (A).
2) Disconnect the breather hose (B) from intake air hose (D).
3) Remove the intake air hose (D) and air cleaner upper cover (C).
4) Remove the air cleaner element.
5) Remove the bolts (B) and air cleaner lower cover (A).
6. Remove the upper radiator hose (A) and lower radiator hose (B).
7. Remove the ATF (Automatic transaxle fluid) cooler hose (A).
8. Remove the radiator.
9. Remove the heater hose (A).
10. Remove the accelerator cable (A).
11. Remove the engine wire harness connectors and wire harness clamps from the cylinder head and the intake manifold.
1) Disconnect the OCV (Oil Control Valve) connector (A).
2) Disconnect the oil temperature sensor connector (B).
3) Disconnect the ECT (Engine Coolant Temperature) sensor connector (C).
4) Disconnect the ignition coil connector (D).
5) Disconnect the TPS (Throttle Position Sensor) Connector (A).
6) Disconnect the ISA (Idle Speed Actuator) connector (B).
7) Disconnect the CMP (Camshaft Position Sensor) connector (A).
8) Disconnect the four fuel injector connectors (B).
9) Disconnect the knock sensor connector (C).
10) Disconnect the ground cables (D, E) from the intake manifold and vehicle's body.
11) Disconnect the air conditioner compressor switch (F).
12) Disconnect the front heated oxygen sensor connector (A).
13) Disconnect the CKP (Crankshaft Position Sensor) connector (B).
14) Disconnect the oil pressure switch connector (C).
15) Disconnect the PCSV (Purge Control Solenoid Valve) connector (A).
12. Remove the transaxle wire harness connectors and control cable from transaxle (A/T).
1) Disconnect the transaxle range switch connector (A).
2) Disconnect the solenoid valve connector (B).
3) Disconnect the input shaft speed sensor connector (C).
4) Disconnect the output shaft speed sensor connector (D).
5) Disconnect the vehicle speed sensor connector (A).
6) Remove the transaxle ground cable (A).
7) Remove the control cable nut (A) from transaxle range switch.
8) Remove the control cable.
13. Disconnect the fuel inlet hose (A) of the delivery pipe side.
14. Disconnect the hose (B) of the PCSV (Purge Control Solenoid Valve) side.
15. Remove the brake booster vacuum hose (C).
16. Remove the power steering pump drive belt.
17. Remove the power steering pump and use a wire to secure the pump to the vehicle so that it is out of the way.
18. Remove the front wheel (RH, LH).
19. Remove the bolts (B) and RH side cover (A).
20. Remove the air conditioner compressor drive belt.
21. Remove the air conditioner compressor and fix the compressor to vehicle with a wire.
22. Remove the rear oxygen sensor connector (A) and clamp.
23. Disconnect the starter motor connector (B) and B terminal (C).
24. Remove the mounting clip of the starter cable.
25. Remove the alternator connector (A) and B terminal (B).
26. Remove the front muffler (A).

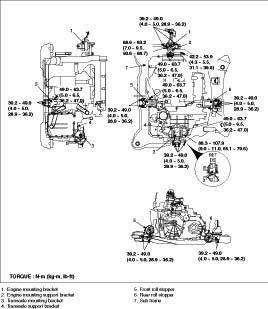

Tightening torque:
Nut (B): 39.2 - 58.8 Nm (4.0 - 6.0 kg-m, 28.9 - 43.4 ft. lbs.)
Bolt (C): 29.4 - 39.2 Nm (3.0 - 4.0 kg-m, 21.7 - 28.9 ft. lbs.)
27. Remove the drive shaft.
28. Remove the front roll stopper.
Tightening torque: 49.0 - 63.7 Nm (5.0 - 6.5 kg-m, 36.2 - 47.0 ft. lbs.)
29. Remove the rear roll stopper.
Tightening torque: 49.0 - 63.7 Nm (5.0 - 6.5 kg-m, 36.2 - 47.0 ft. lbs.)
30. Install the engine hanger lift to the engine and transaxle assembly.
31. Remove the bolt (B), nuts (C, D) and engine mounting support bracket (A).
Tightening torque:
Nut (D): 68.6 - 93.2 Nm (7.0 - 9.5 kg-m, 50.6 - 68.7 ft. lbs.)
Bolt (B), Nut (C): 49.0 - 63.7 Nm (5.0 - 6.5 kg-m, 36.2 - 47.0 ft. lbs.)
32. Remove the transaxle mounting bracket.
Tightening torque:
Bolt (A, C): 39.2 - 49.0 Nm (4.0 - 5.0 kg-m, 28.9 - 36.2 ft. lbs.)
Nut (B): 88.3 - 107.9 Nm (9.0 - 11.0 kg-m, 65.1 - 79.6 ft. lbs.)
33. Using engine hanger lift, remove the engine and transaxle assembly on vehicle.
CAUTION: When removing the engine and transaxle assembly, be careful not to damage any surrounding parts or
body components.
INSTALLATION
Installation is in the reverse order of removal.
Perform the following:
1) Adjust the shift cable.
2) Adjust the throttle cable.
3) Refill the engine with engine oil.
4) Refill the transaxle with fluid.
5) Refill the radiator and reservoir tank with engine coolant.
6) Place the heater control knob on HOT position.
7) Bleed air from the cooling system
1) Start engine and let it run until it warms up. (until the radiator fan operates 3 or 4 times.)
2) Turn Off the engine. Check the level in the radiator, add coolant if needed. This will allow trapped air to be removed from the cooling system.
3) Put the radiator cap on tightly, then run the engine again and check for leaks.
8) Clean the battery posts and cable terminals with sandpaper assemble them, then apply grease to prevent corrosion.
9) Inspect for fuel leakage.
1) After assemble the fuel line, turn on the ignition switch (do not operate the starter) so that the fuel pump runs for approximately two seconds and fuel line pressurizes.
2) Repeat this operation two or three times, then check for fuel leakage at any point in the fuel line.
