Crankshaft: Testing and Inspection
CONNECTING ROD AND CRANKSHAFT1. Check the connecting rod end play.
Using feeler gauge, measure the end play while moving the connecting rod back and forth.
End play
Standard: 0.1 - 0.25 mm (0.0039 - 0.0098 inch)
Maximum: 0.4 mm (0.0157 inch)
A. If out-of-tolerance, install a new connecting rod.
B. If still out-of-tolerance, replace the crankshaft.
2. Check the connecting rod bearing oil clearance.
1) Check the match marks on the connecting rod and cap are aligned to ensure correct reassembly.
2) Remove the 2 connecting rod cap nuts.
3) Remove the connecting rod cap and lower bearing.
4) Clean the crankshaft pin journal and bearing.
5) Place a plastigage across the crankshaft pin journal.
6) Reinstall the lower bearing and cap, and tighten the nuts.
Tightening torque: 49.0 - 52.0 Nm (5.0 - 5.3 kg-m, 36.2 - 38.3 ft. lbs.)
NOTE: Do not turn the crankshaft.
7) Remove the 2 nuts, connecting rod cap and lower bearing.
8) Measure the plastigage at its widest point.
Standard oil clearance 0.024 - 0.044 mm (0.0009 - 0.0017 inch)
9) If the plastigage measures too wide or too narrow, remove the upper and lower bearing and then install a new bearings with the same color mark.
Recheck the oil clearance.
CAUTION: Do not file, shim, of scrape the bearings or the caps to adjust clearance.
10) If the plastigage shows the clearance is still incorrect, try the next larger or smaller bearing.
Recheck the oil clearance.
NOTE: If the proper clearance cannot be obtained by using the appropriate larger or smaller bearings, replace the crankshaft and start over.
CAUTION: If the alignment marks are unreadable because of an accumulation of grease or grime, don't clean with a wire or abrasive cleaner. Clean only with correct cleaning solvent or detergent.
Connecting rod mark location
Discrimination of connecting rod:

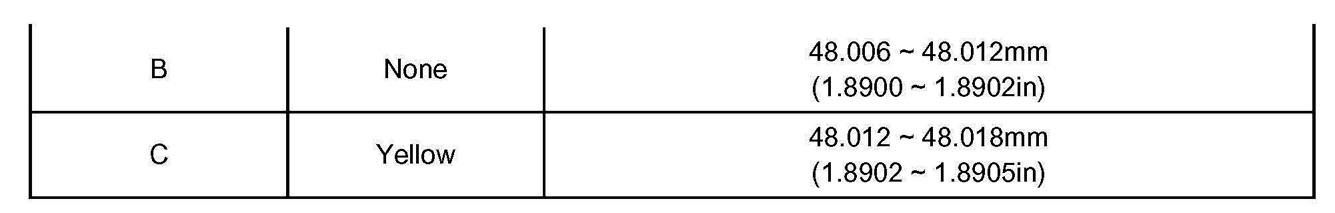

Crankshaft pin journal mark location
Discrimination of crankshaft pin journal:
Connecting rod bearing mark location
Discrimination of connecting rod bearing:
11) Select the bearing by using selection table.
Connecting rod bearing selection table:
3. Check the connecting rods.
1) When reinstalling, make sure that cylinder numbers put on the connecting rod and cap at disassembly match. When a new connecting rod is installed, make sure that the notches for holding the bearing in place are on the same side.
2) Replace the connecting rod if it is damaged on the thrust faces at either end. Also if step wear or a severely rough surface of the inside diameter of the small end is apparent, the rod must be replaced as well.
3) Using a connecting rod aligning tool, check the rod for bend and twist. If the measured value is close to the repair limit, correct the rod by a press. Any connecting rod that has been severely bent or distorted should be replaced.
Allowable bend of connecting rod: 0.05 mm / 100 mm (0.0020 inch / 3.94 inch) or less
Allowable twist of connecting rod: 0.1 mm / 100 mm (0.0039 inch / 3.94 inch) or less
4. Check the crankshaft bearing oil clearance.
1) To check main bearing-to-journal oil clearance, remove the main bearing caps and lower bearings.
2) Clean each main journal and lower bearing with a clean shop towel.
3) Place one strip of plastigage across each main journal.
4) Reinstall the lower bearings and caps, then tighten the bolts.
Tightening torque: 27.5 - 31.4 Nm (2.8 - 3.2 kg-m, 20.3 - 23.1 ft. lbs.) + 60° - 64°
NOTE: Do not turn the crankshaft.
5) Remove the cap and lower bearing again, and measure the widest part of the plastigage.
Standard oil clearance: 0.028 - 0.048 mm (0.0011 - 0.0019 inch)
6) If the plastigage measures too wide or too narrow, remove the upper and lower bearing and then install a new bearings with the same color mark.
Recheck the oil clearance.
CAUTION: Do not file, shim, or scrape the bearings or the cap to adjust clearance.
7) If the plastigage shows the clearance is still incorrect, try the next larger or smaller bearing.
Recheck the oil clearance.
NOTE: If the proper clearance cannot be obtained by using the appropriate larger or smaller bearings, replace the crankshaft and start over.
CAUTION: If the alignment marks are unreadable because of accumulation of grease or grime, don't clean with a
wire or abrasive cleaner. Clean only with correct cleaning solvent or detergent.
Cylinder block crankshaft journal bore mark location
Letters have been stamped on the end of the block as a mark for the size of each of the 5 main journal bores.
Use them, and the numbers or letters stamped on the crank (marks for main journal size), to choose the correct bearings.
Discrimination of cylinder block crankshaft journal bore:
Crankshaft main journal mark location
Discrimination of crankshaft main journal:
Crankshaft main bearing mark location
Discrimination of crankshaft main bearing:
8) Select the bearing by using selection table.
Crankshaft main bearing selection table:
5. Check the crankshaft end play.
Using a dial indicator, measure the thrust clearance while prying the crankshaft back and forth with a screwdriver.
End play
Standard: 0.06 - 0.26 mm (0.0024 - 0.0102 inch)
Limit: 0.30 mm (0.0118 inch)
If the end play is greater than maximum, replace the thrust bearings as a set.
Thrust bearing thickness: 2.44 - 2.77 mm (0.0961 - 0.0972 inch)
End play
Standard: 0.06 - 0.26 mm (0.0024 - 0.0102 inch)
Limit: 0.30 mm (0.0118 inch)
6. Inspect the crankshaft main journals and pin journals.
Using a micrometer, measure the diameter of each main journal and pin journal.
Main journal diameter: 56.942 - 56.962 mm (2.2418 - 2.2426 inch)
Pin journal diameter: 44.946 - 44.966 mm (1.7695 - 1.7703 inch)
