Main & Air Bag Ext. Harness
Main & Air Bag Ext. Harness

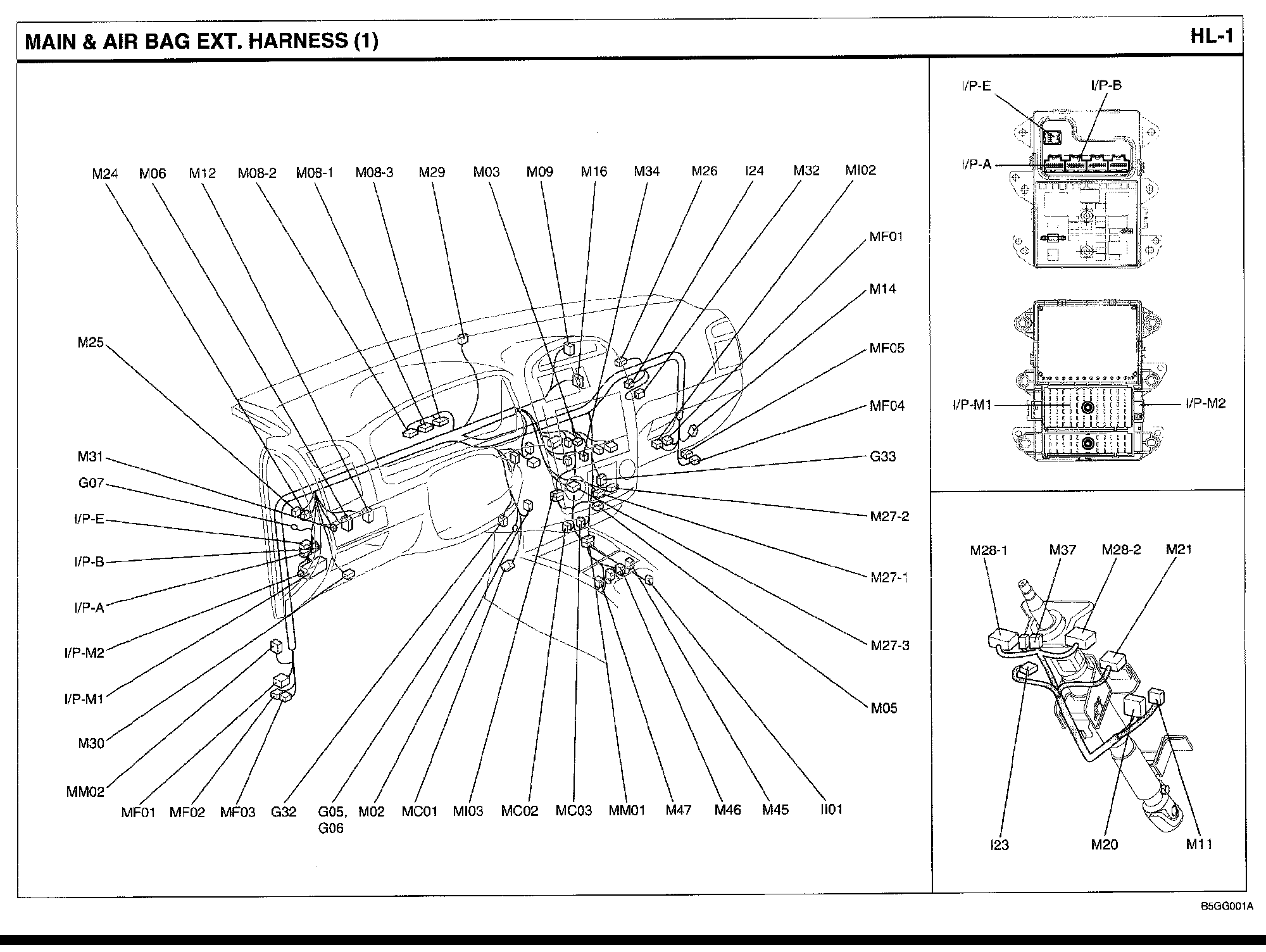

Main & Air Bag Exit. Harness View:

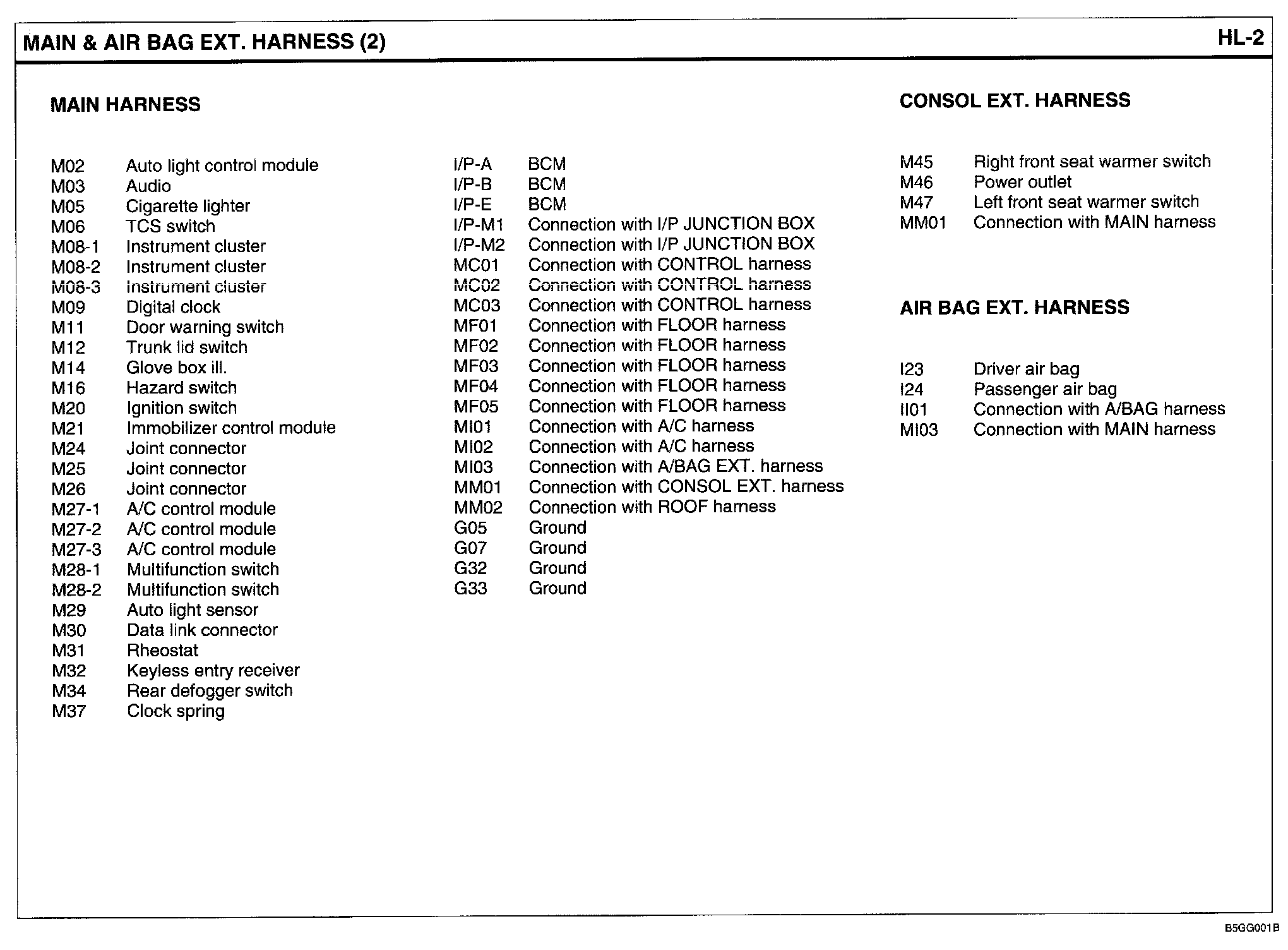

Main & Air Bag Exit. Harness Index:
