Diagrams
>>
Harness
>>
Floor & Air Bag Harness
Floor & Air Bag Harness

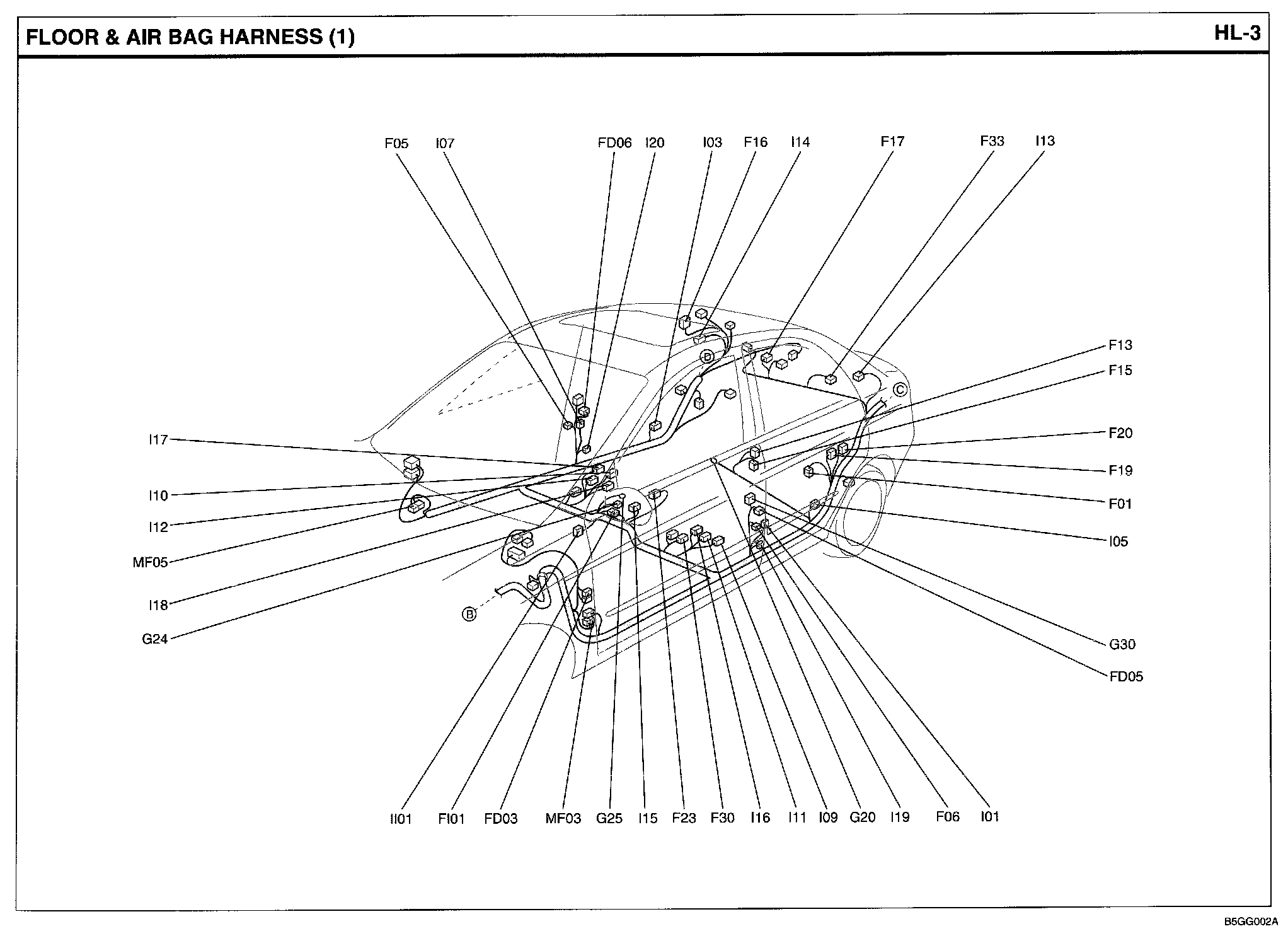

Floor & Air Bag Harness View:

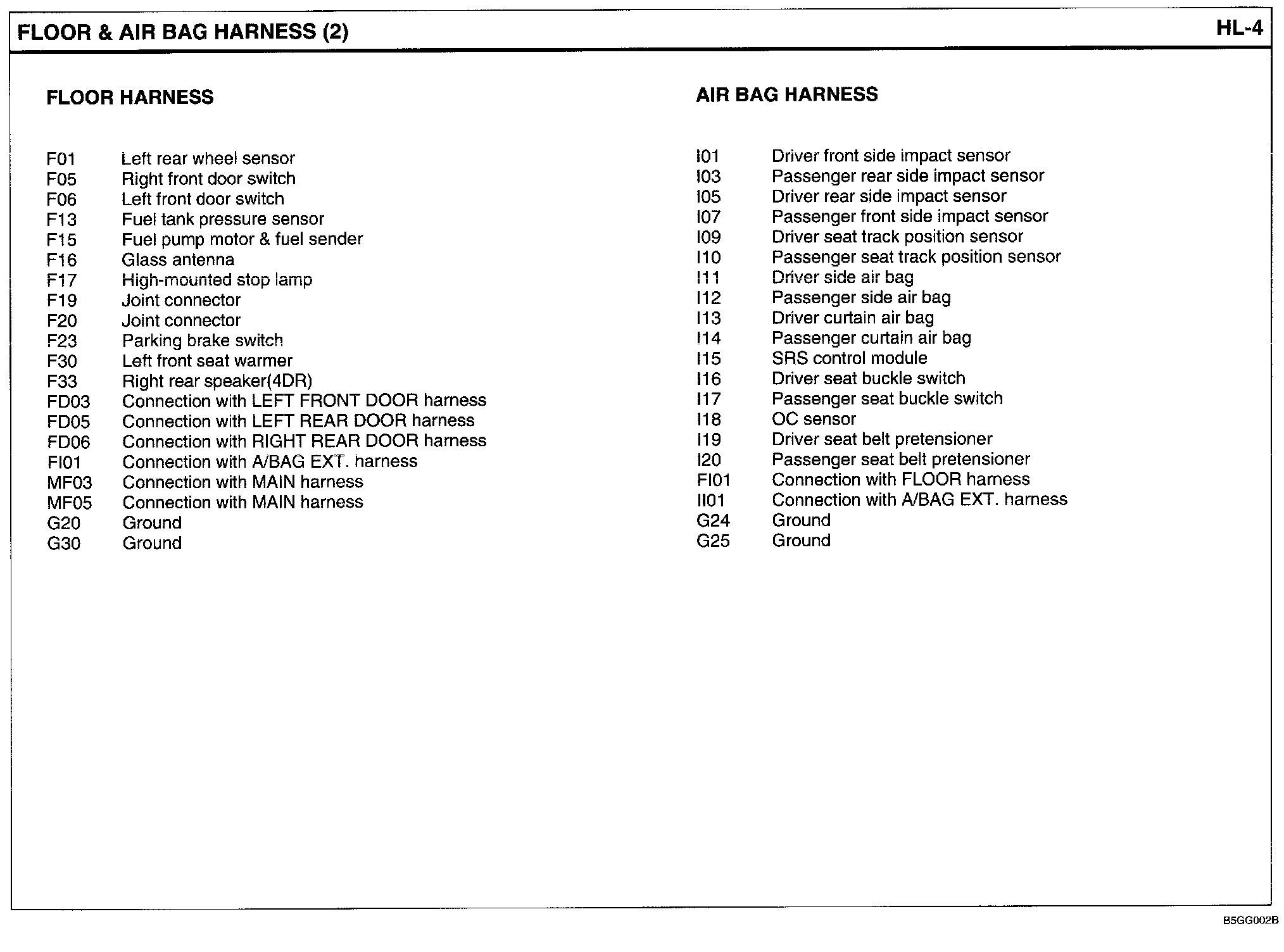

Floor & Air Bag Harness Index:

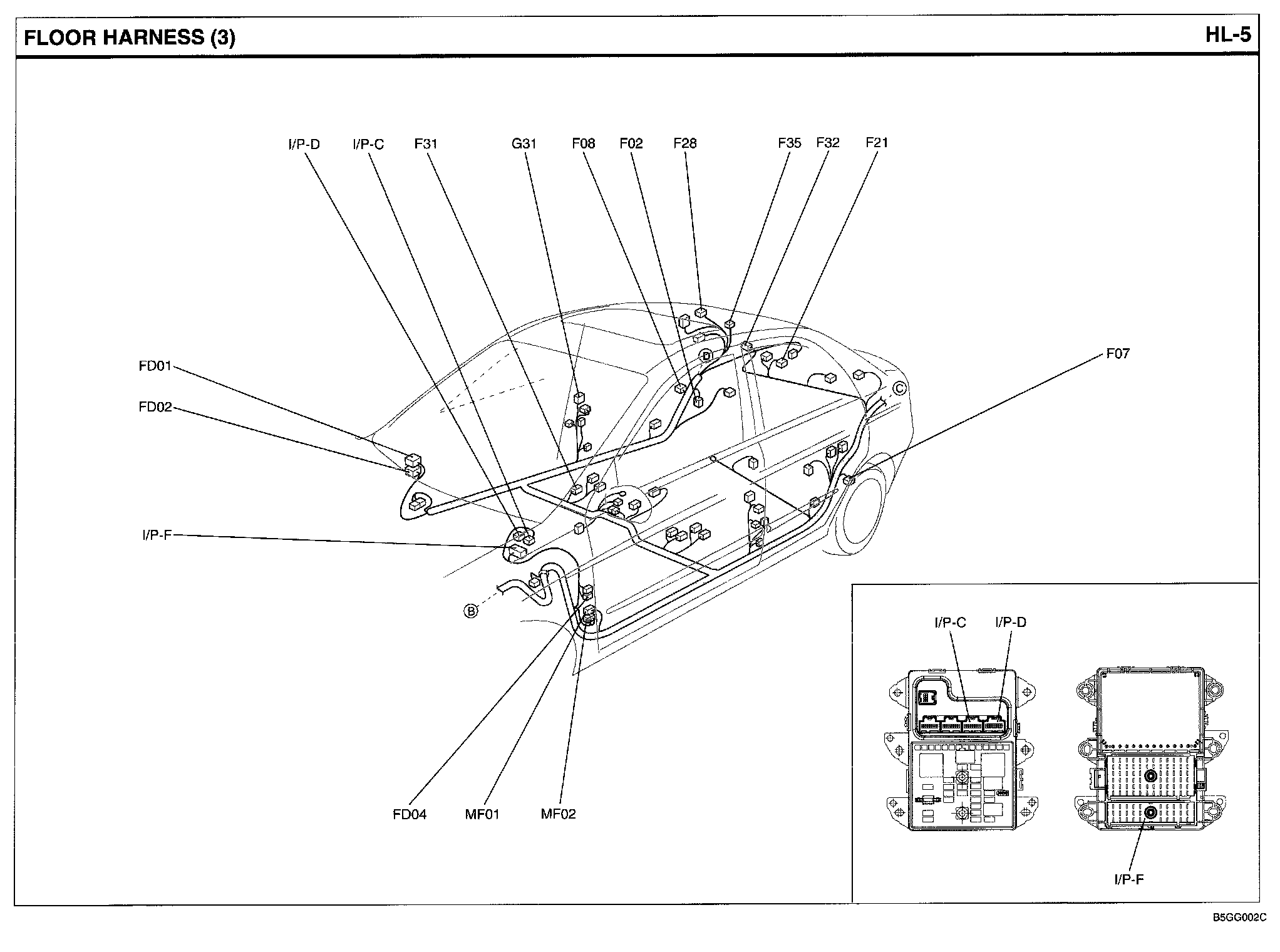

Floor Harness View:

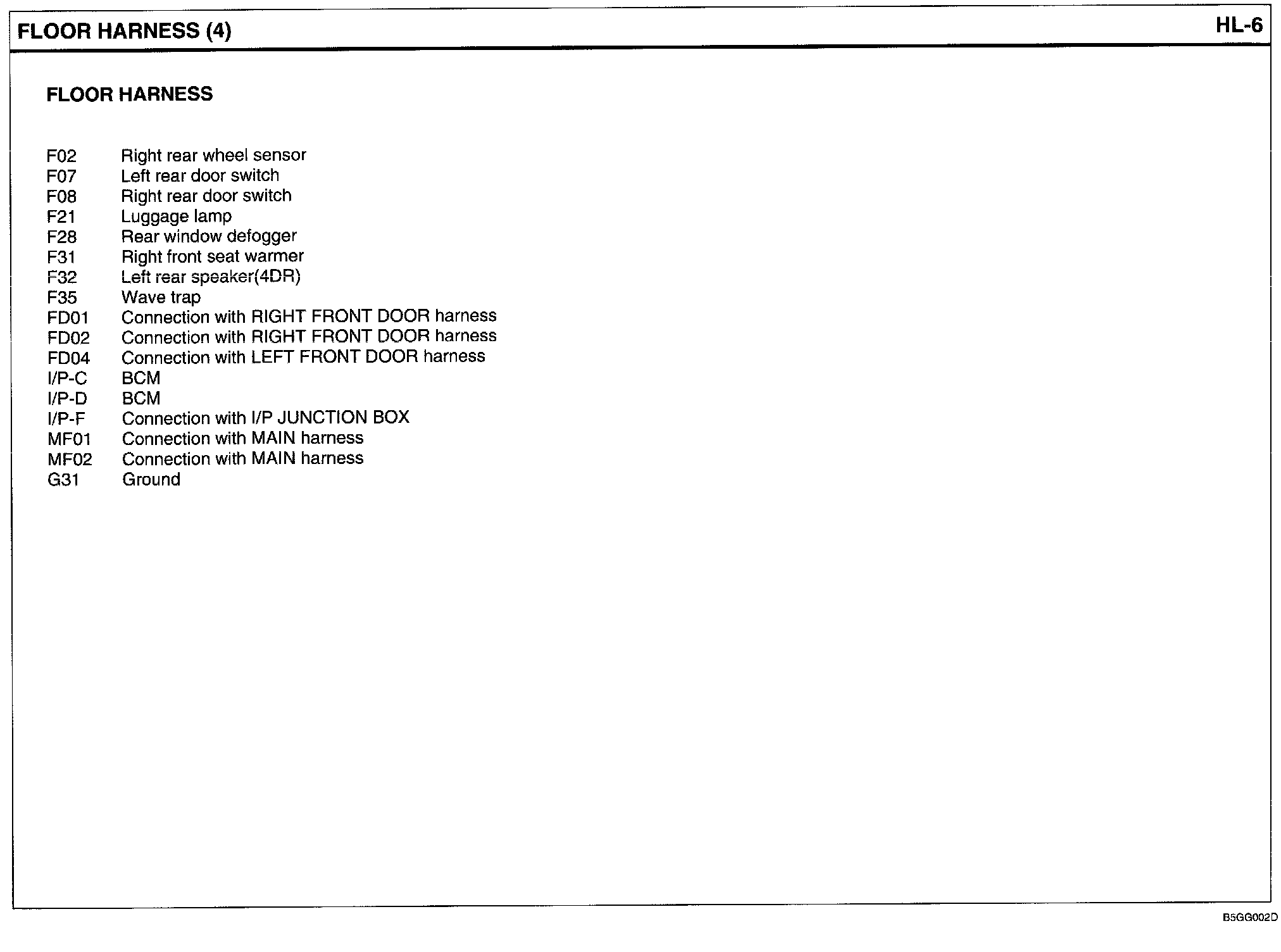

Floor Harness Index:
