Antilock Brakes / Traction Control Systems

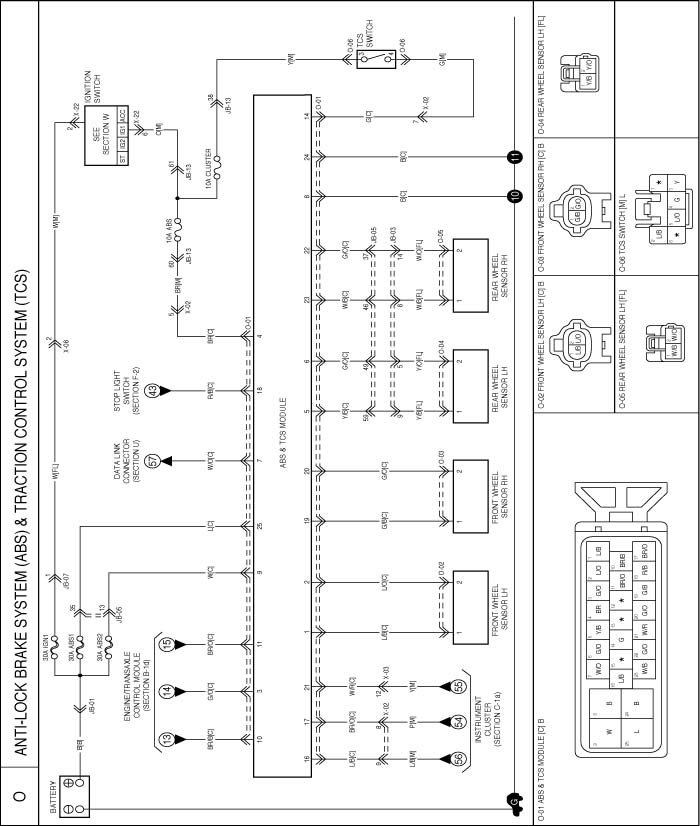

Circuit Diagram For Anti-Lock Brake System:

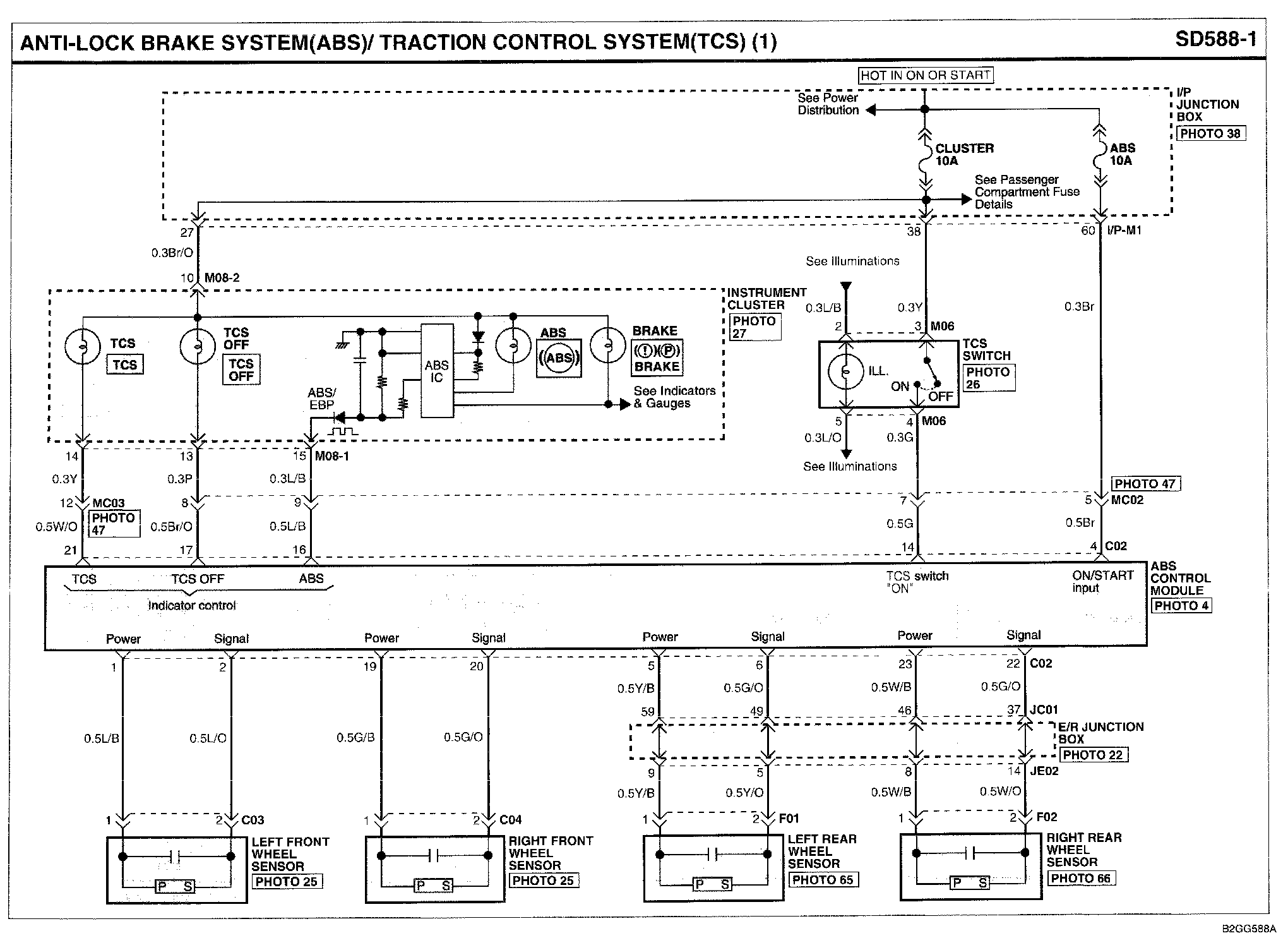

Anti-Lock Brake System (ABS)/ Traction Control System (TCS) (1):

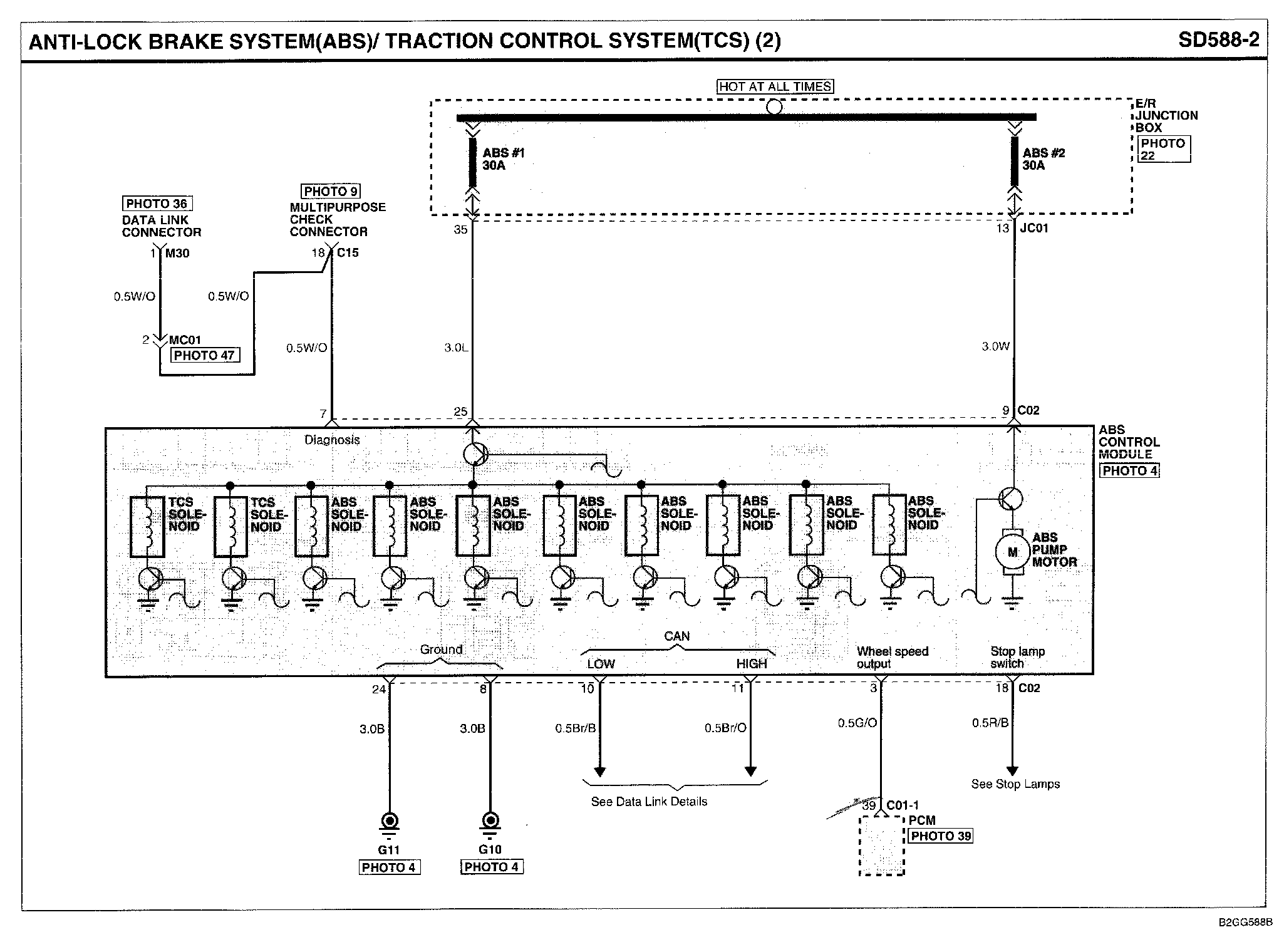

Anti-Lock Brake System (ABS)/ Traction Control System (TCS) (2):

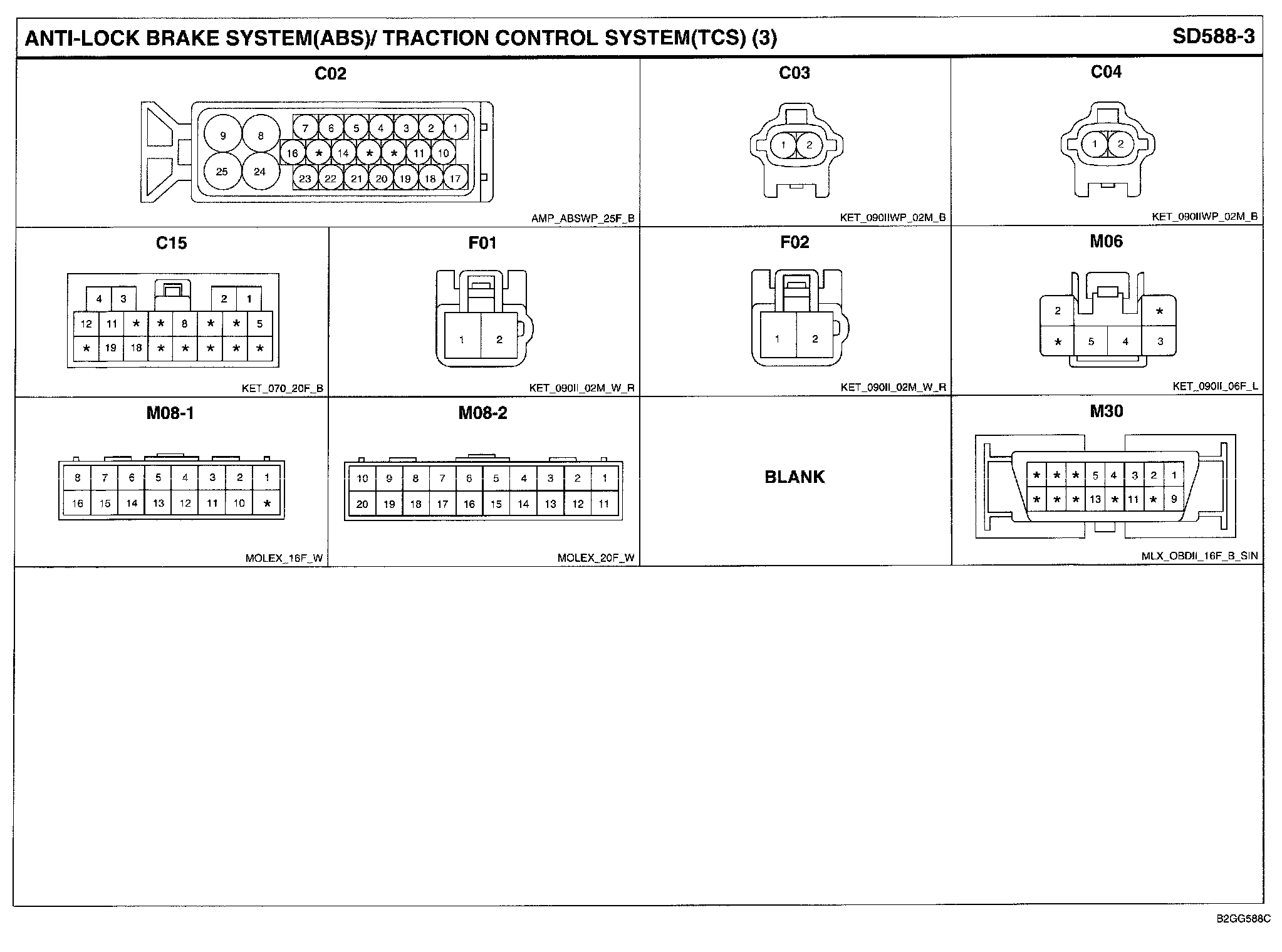

Anti-Lock Brake System (ABS)/ Traction Control System (TCS) Connector Pin Outs:

Locations: Location photographs (references to PHOTOS) referred to within these diagrams can be found via the photo number at the vehicle level under Locations by Photo Number. Component Locations

Connector Views: The Connector Pin Out Views for connectors shown on these diagrams can be found on the Connector Pin Out images that follow most sets of system diagrams
